HAAS ST-45

Photo Gallery

HAAS - ST-45GB-TUR-HAA-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

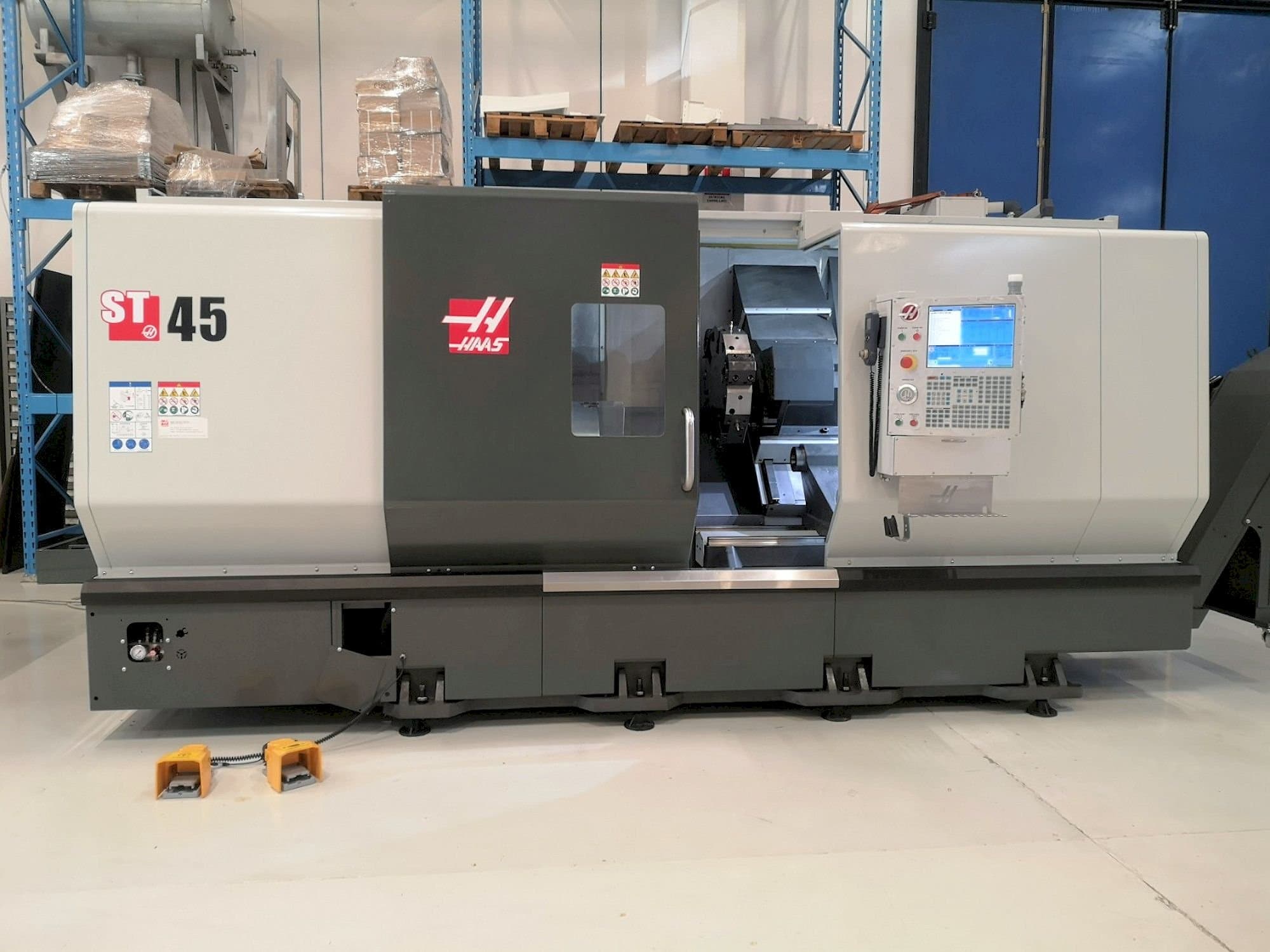

This HAAS ST-45 Lathe was manufactured in the United States in the year 2018. It is operated through a control unit of the same brand. This 3 axis machine can work with a spindle speed up to 1400 rpm and a cutting length 1118 mm. It is in very good condition.

Overview

brand: HAAS
year: 2018
MODEL: ST-45
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-45

General Data

Measurements width: 5520 MM
Measurements depth: 2390 MM
Measurements height: 2670 MM
Machine weight: 11749 KG

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 1400 1/MIN
Spindle motor power: 29.42 KW
Spindle bore: 178 MM
Number of axis: 3

Movement

X-AXIS Movement: 432 MM
Z-AXIS Movement: 1118 MM

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: HYBRID BOT/VDI40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 876 mm
- - Swing over cross-slide 648 mm
- - Maximum cutting length 1118 mm
- - Bar capacity 165 mm
- - Milling rpm 4000, c axis 0. 01 degrees
- - Spindle nose a2-11
- - Tailstock taper mt #5
- - 3 jaw chuck , coolant, tailstock, swarf conveyor, tooling
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
