HAAS SL-40

Photo Gallery

HAAS - SL-40GB-TUR-HAA-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

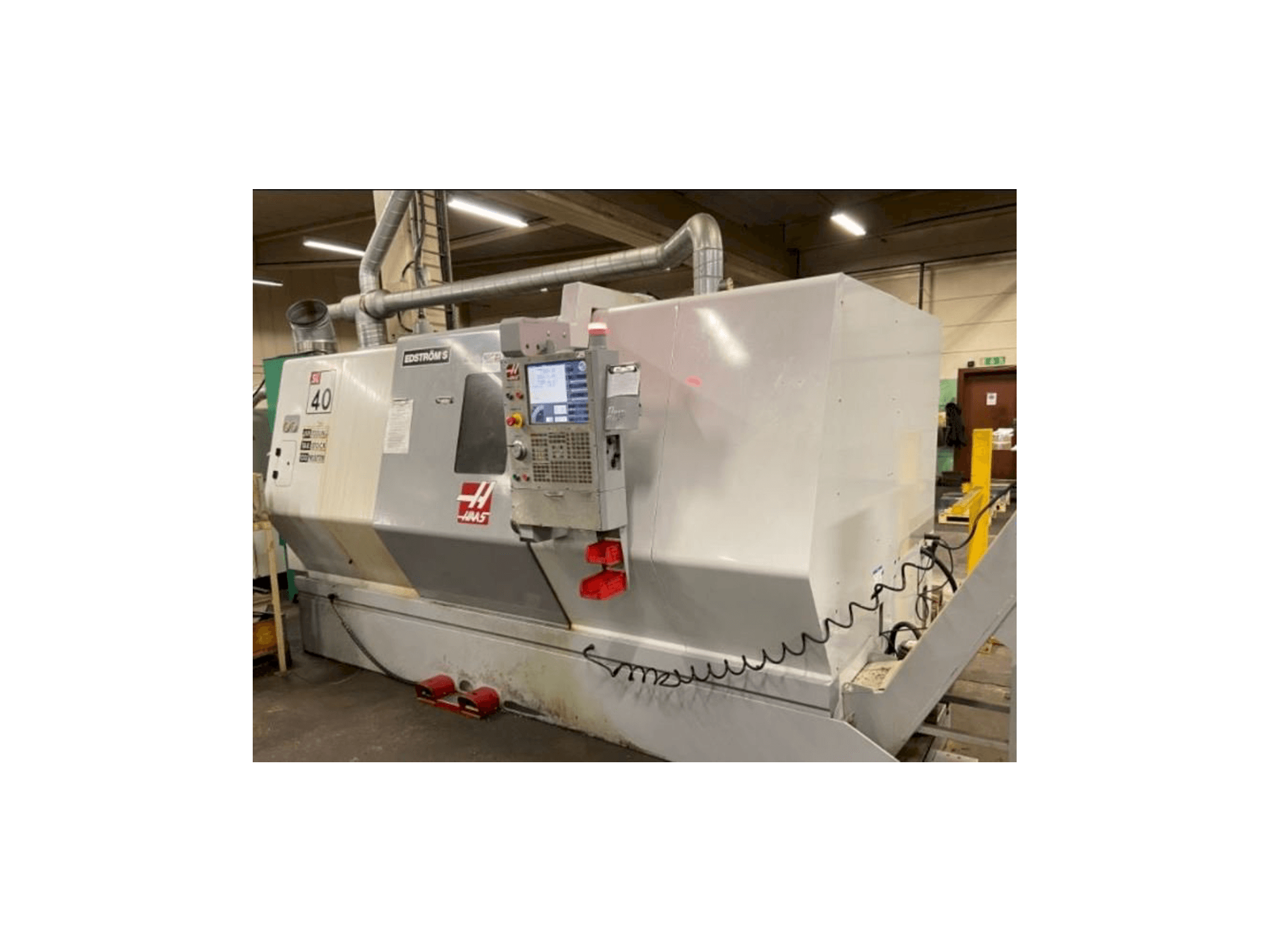

This HAAS SL-40 Lathe was built in the year 2007 in United States. This 3 axis machine is equipped with a control unit of the same brand. It performs with a spindle speed up to 2400 rpm. This machine is in good conditions.

Overview

brand: HAAS
year: 2007
MODEL: SL-40
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS SL-40

General Data

Measurements width: 3810 mm
Measurements depth: 2337 mm
Measurements height: 2261 mm
Machine weight: 11340 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 2400 1/MIN
Spindle motor power: 29.42 kW
Number of axis: 3

Movement

X-AXIS Movement: 432 MM
Y-AXIS Movement: 1118 MM

Turret

Number of turrets: 1

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 1016 mm
- - Swing over cross-slide 635 mm
- - Maximum cutting diameter 648 mm
- - Distance between centres 1295 mm
- - Maximum cutting length 1118 mm
- - Bar capacity 102 mm
- - Turret 10 positions 3 jaw chuck 15'', tool setter, coolant, tailstock, swarf conveyor
- - 3 jaw chuck 15'', tool setter, coolant, tailstock, swarf conveyor
- - Milling rpm 3000, c axis 0. 01 degrees
Qualitative Machine Benefits:
- - Machine in good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
