HAAS MINIMILL

Photo Gallery

HAAS - MINIMILLHU-MIL-HAA-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS MINIMILL - 2012 - For Sale

Show in original language

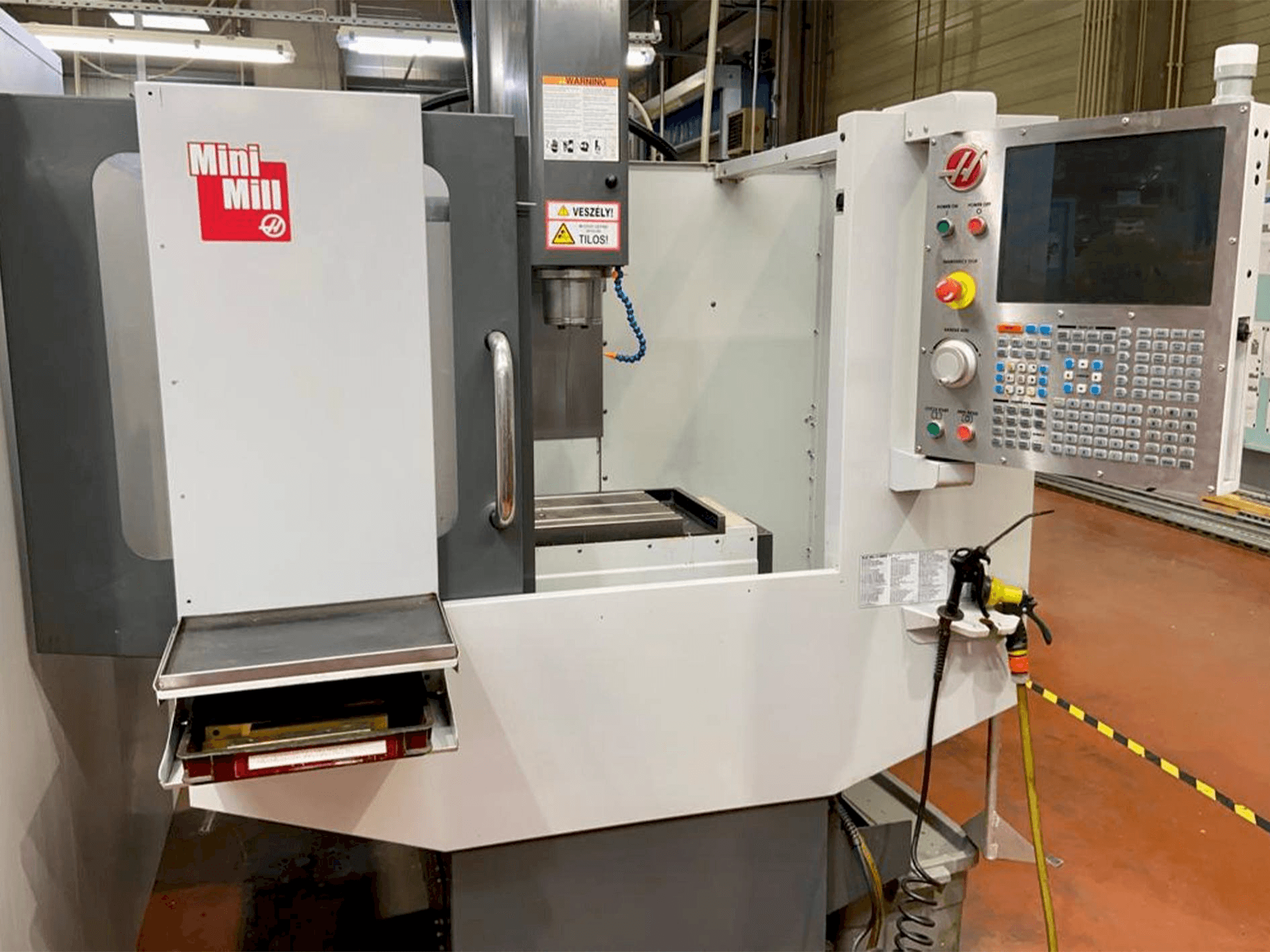

This HAAS MINIMILL Vertical machining center was built in the United States in 2012. It has been power on for 122 hours. It is equipped with a control unit of the same brand. This 3 axis machine operates with a spindle speed range between 0 - 6000 rpm. This machine comes with the tool holders, etc visible on the photos and also a touch probe additional. The vice which is visible on the machine table is not included.

Overview

brand: HAAS
year: 2012
MODEL: MINIMILL
production hours: 122
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS MINIMILL

General Data

Measurements width: 2210 mm
Measurements depth: 610 mm
Measurements height: 2616 mm

Control Unit

CNC language customizable: Yes
Brand: HAAS

Main drive

Spindle speed range: 0 - 6000 1/MIN
Spindle motor power: 5.6 kW
Tool taper: #40
Number of axis: 3

Movement

X-AXIS Movement: 406 mm
Y-AXIS Movement: 305 mm
Z-AXIS Movement: 254 mm

Table

Outer length: 730 mm
Outer width: 305 mm
TSlots size: 16 mm
Number of tslots: 2
Distance between: 110 mm
Min distance between vertical spindle and table: 102 mm
Max distance between vertical spindle and table: 356 mm
Table load: 227 KG

Media

Main electronic connection: 3 x 425V / 60Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Includes tool holders, etc visible on the photos
- - Touch probe additional, included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
