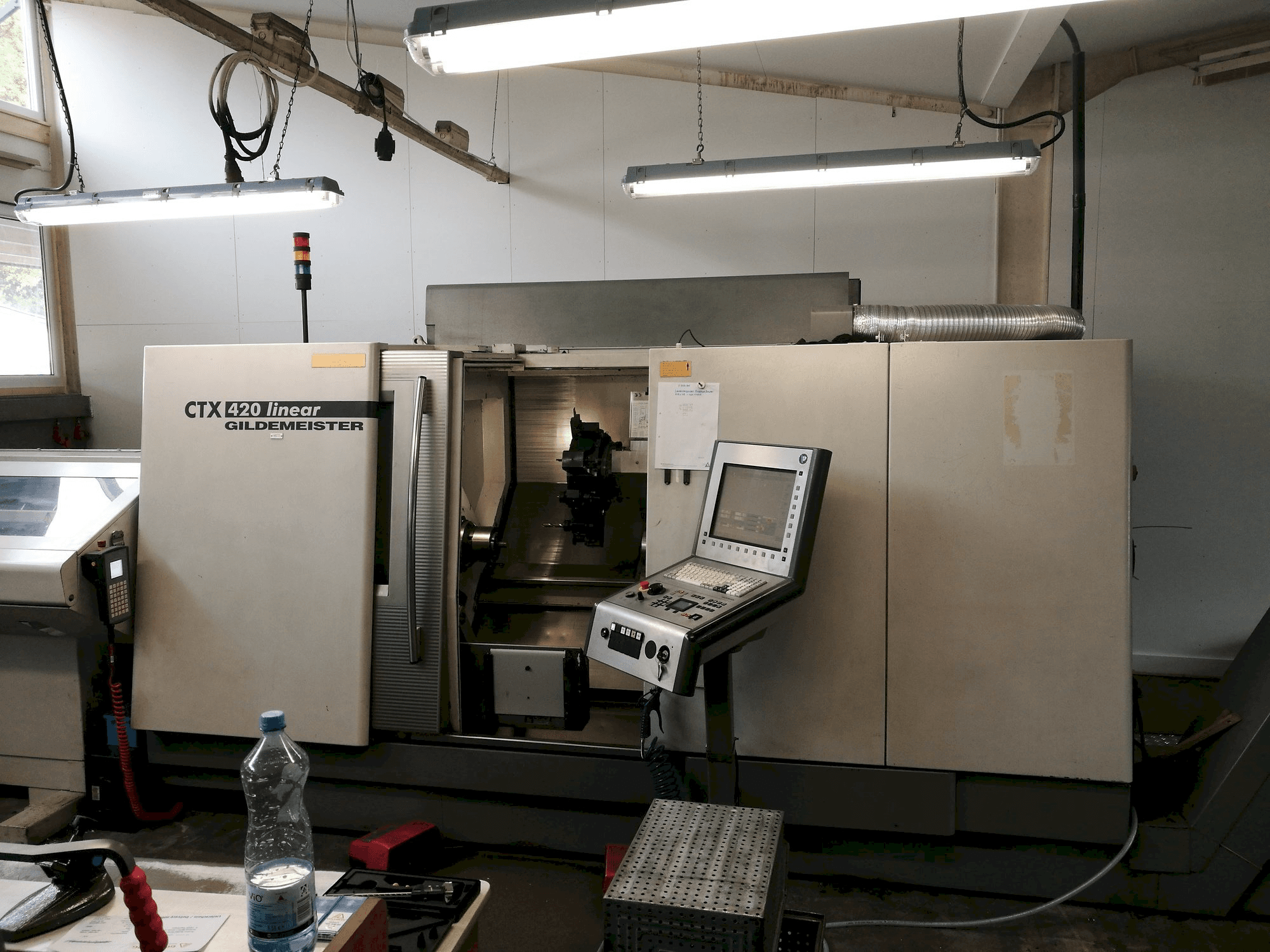

Front view of Gildemeister CTX 420 linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 420 linear

Photo Gallery

Gildemeister - CTX 420 linearDE-TUR-GIL-2004-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister CTX 420 linear

Show in original language

This Gildemeister CTX 420 linear Lathe was built in 2004 in Germany. It has been working for only 14875 hours. It is equipped with a Heidenhain IT Turn plus control unit. This machine incorporates 2 spindles and can operate with a spindle speed up to 7000 rpm. it is full equipment with Y- Axis, counter- spindle and rod loader.

Overview

brand: Gildemeister
year: 2004
MODEL: CTX 420 linear
production hours: 14875
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 420 linear

General Data

Measurements width: 4890 mm
Measurements depth: 2440 mm
Measurements height: 2080 mm
Machine weight: 6500 kg

Control Unit

Model: IT Turn plus
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 2
Spindle speed range: 7000 rpm 1/MIN

Movement

X-AXIS Movement: 185 mm
Y-AXIS Movement: 40 mm
Z-AXIS Movement: 635 mm
C-AXIS Movement: 360 mm

Workpiece

Workpiece drm: 324 mm
Workpiece x: 324 mm

Turret

Number of turrets: 12

Media

Main electronic connection: 400 V
Power consumption: 50 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Second counter spindel as 4. Axis
- - Rod loader, breuning ils-rbk 1 (1000mm)
- - Some spare parts for machine and loader
- - 2 x 3jaw chucks / 15 collets / toos
- - Y-axis as the 5. Axis
- - Full equipment with y- axis, counter- spindle and rod loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
