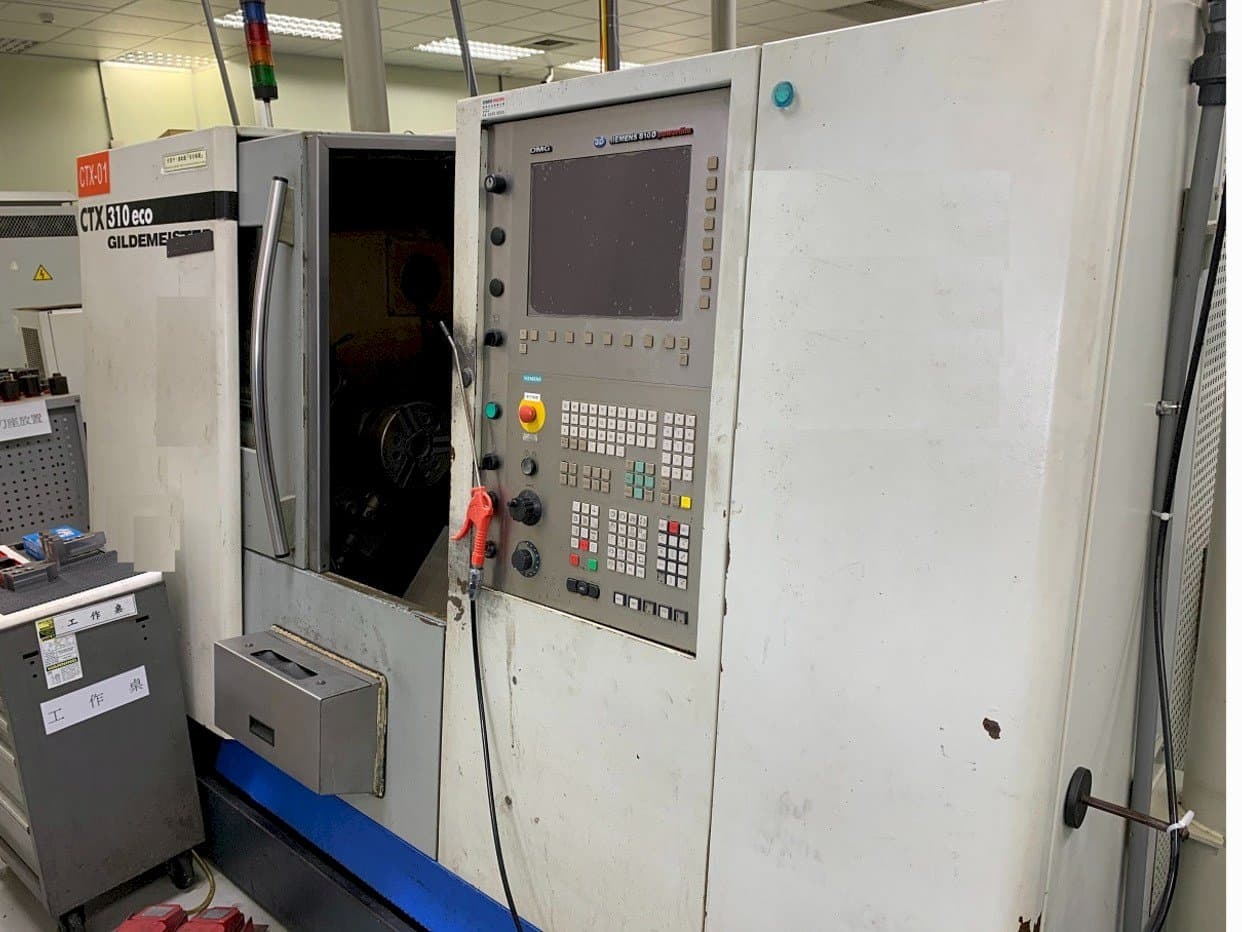

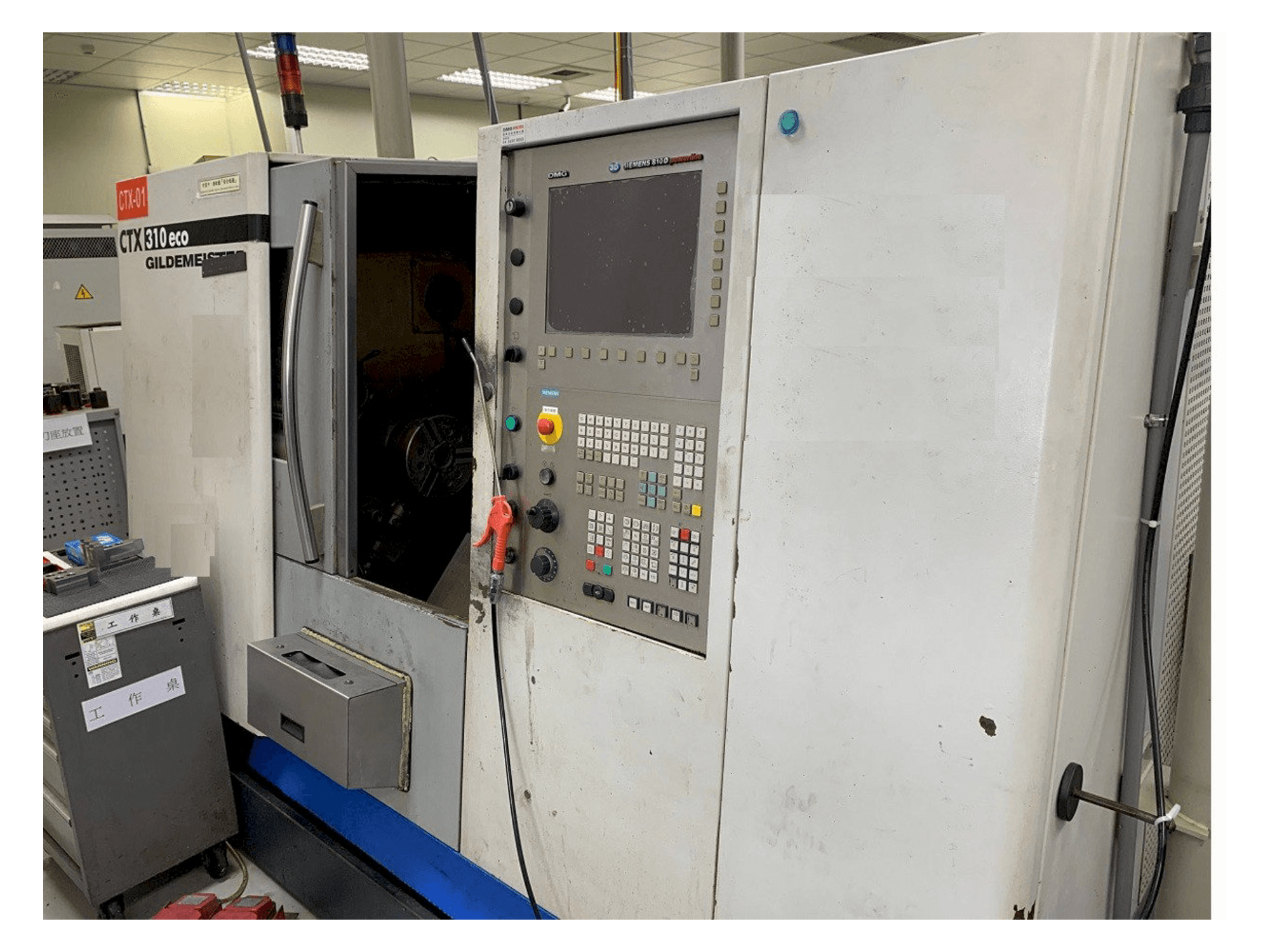

Gildemeister CTX 310V1 eco Lathe

Show in original language

This Gildemeister CTX 310V1 eco Lathe was made in China in the year 2007. It has 52174 production hours. It is operated through a Siemens 810D Powerline control unit. This machine can perform with a spindle speed up to 5000 rpm.

Overview

brand: Gildemeister
year: 2007
MODEL: CTX 310V1 eco
production hours: 52174
application type: Turning
Location: Taiwan
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Gildemeister CTX 310V1 eco

General Data

Measurements width: 5000 mm
Measurements depth: 2200 mm
Measurements height: 1800 mm
Machine weight: 3200 kg

Control Unit

Model: 810D Powerline
Brand: SIEMENS

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 10 / 7,5 kW

Movement

X-AXIS Movement: 185 mm
X-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 455 mm
Z-AXIS Rapid traverse: 30 m/min

Turret

Number of tool slots: 12
Tool taper: VDI 30

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing 330 mm
- - Max. Turning length 580 mm
- - Turning dia. Over face-slide 260 mm
- - Max. Turning dia. 205 mm
- - Max. Torque 115 / 86 nm
- - Spindle diameter in front bearing 100 mm
- - Usable bar diameter 52 mm
- - Chucking diameter max. 210 mm
- - Shank diameter 20 x 20 mm
- - Tailstock adjustment 400 mm, intake pressure max. 4. 000 n

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
