GER - S-100/50ES-GRI-GER-2000-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- GER S-100/50 Grinding machine

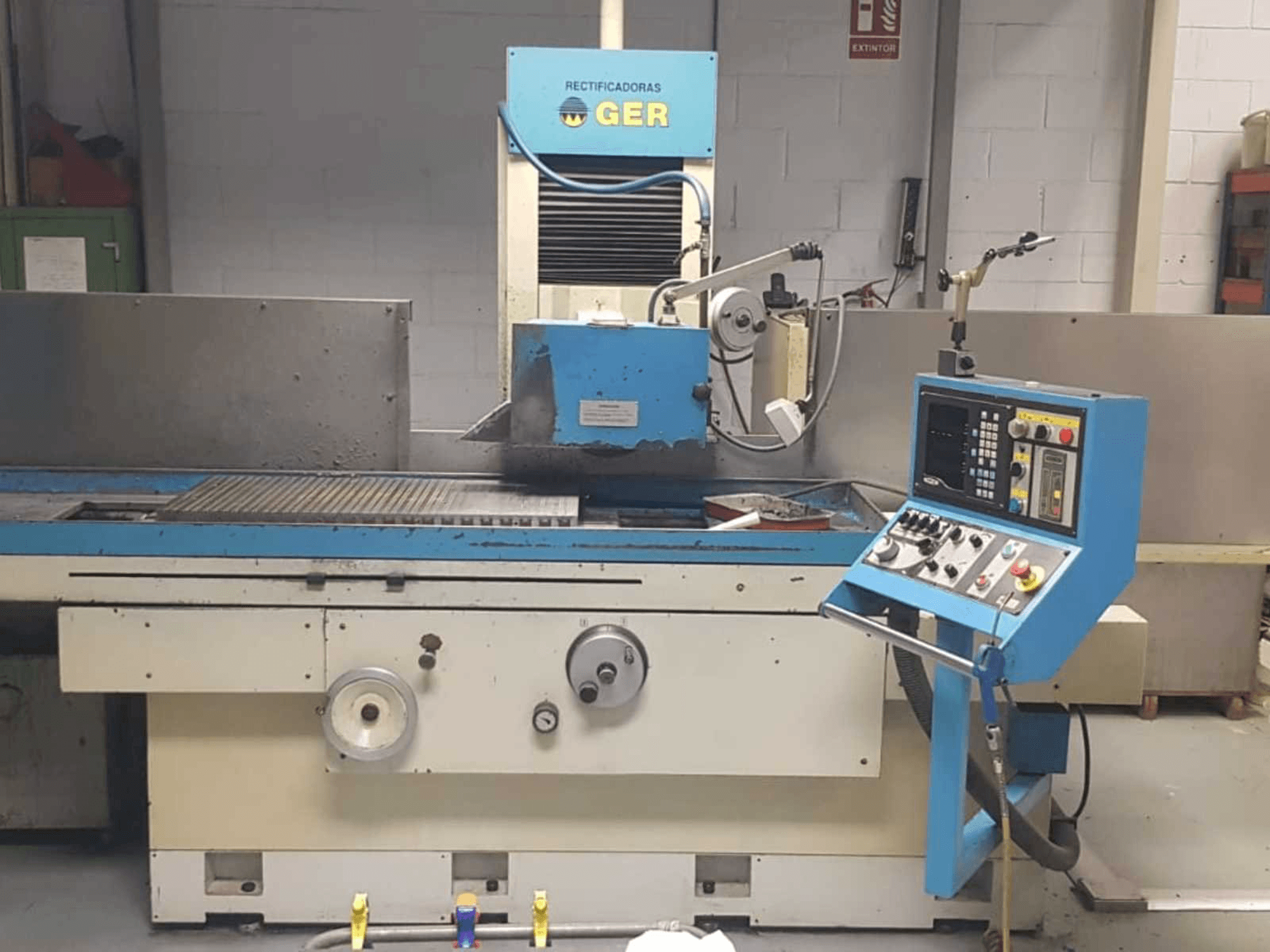

This GER S-100/50 Grinding machine was manufactured in the year 2000. It is equipped with a Fanuc control unit and has 2 axis. The machine has a spindle speed of 1500 rpm.
Overview
- brand: GER
- year: 2000
- MODEL: S-100/50
- application type: Grinding
- Location: Spain
- machine type: Surface Grinding Machine
- availability: Sold
- control unit brand: FAGOR
Technical Information - GER S-100/50
General Data
- Measurements width: 4600 mm
- Measurements depth: 2700 mm
- Measurements height: 2600 mm
- Machine weight: 7600 kg
Control Unit
- Brand: FAGOR
Main drive
- Spindle speed range: 1500 1/MIN
Movement
- X-AXIS Movement: 1160 mm
- Y-AXIS Movement: 600 mm
Workpiece
- Workpiece weight: 1000 kg
Table
- Outer length: 1000 mm
- Outer width: 600 mm
Additional Information
- Technical Machine Benefits:
- - Distancia máxima de la mesa a la muela: 800 mm
- - Dimensiones de la muela: 400x100x127 mm
- - Precisión 0,005 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
