GEKA - ALFA 500/150IE-PUN-GEK-2005-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- GEKA ALFA 500/150 Punching machine

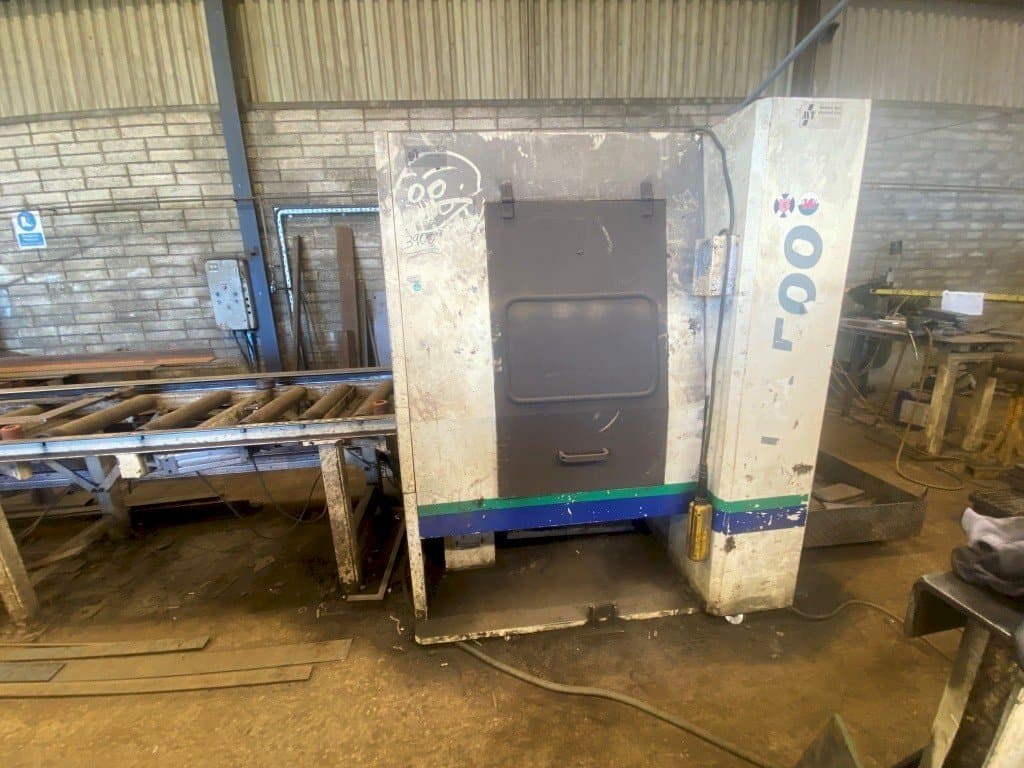

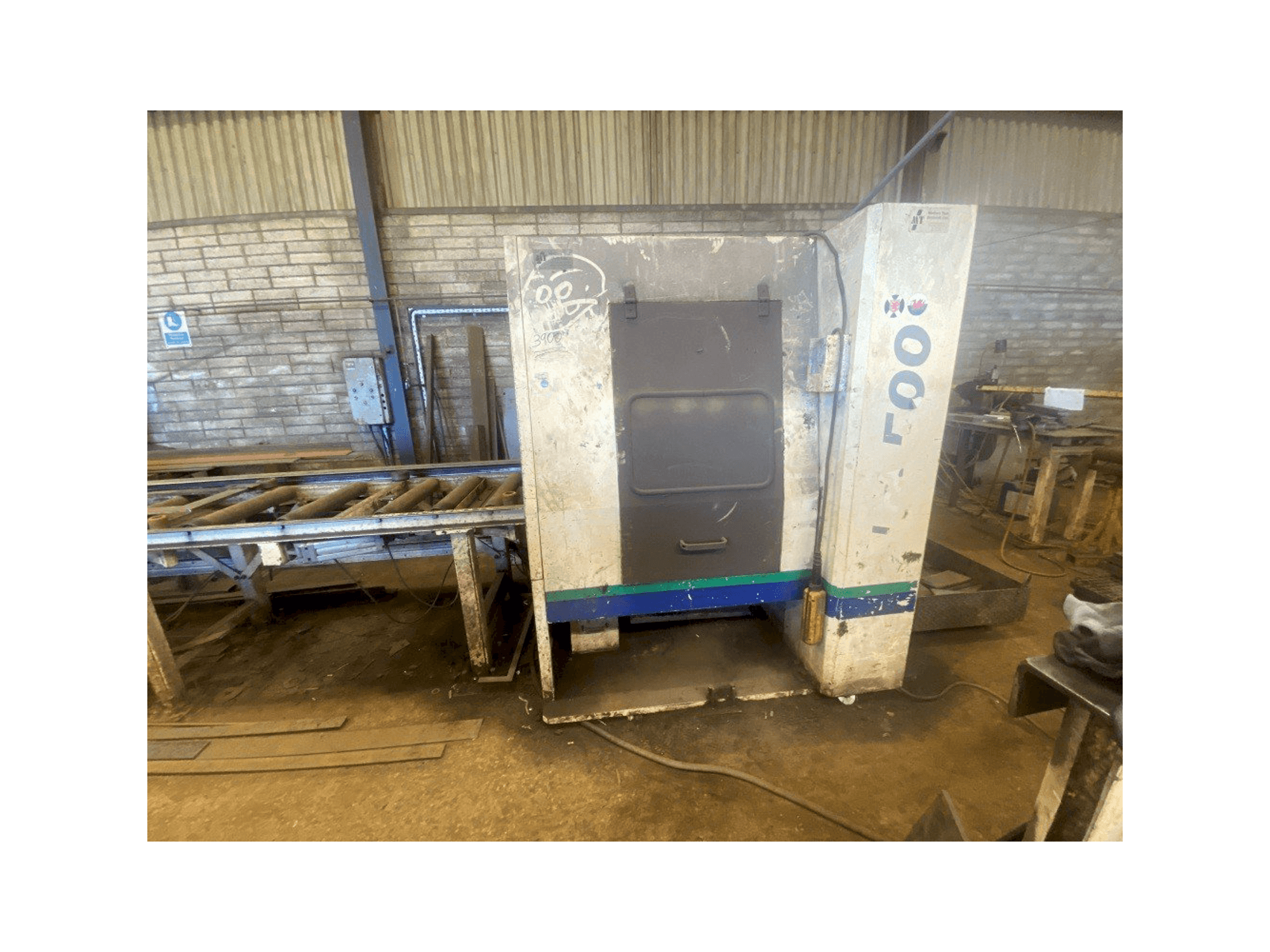

This GEKA ALFA 500/150 Punching machine was manufactured in the year 2005 in Spain. It is equipped with a Fagor control unit. The machine has a punching force of 1100 kN, and includes a 8.5m Infeed Conveyor, 6m Measuring System, Light Guards and Selection of Punches & Dies as additional equipment.
Overview
- brand: GEKA
- year: 2005
- MODEL: ALFA 500/150
- application type: Shearing
- Location: Ireland
- machine type: Hydraulic Shearing Machine
- control unit brand: FAGOR
Technical Information - GEKA ALFA 500/150
Control Unit
- Control Brand: FAGOR
Dimensions
- Machine Depth: 3000 mm
- Machine Height: 2000 mm
Technical Specification
- Max. Sheet Thickness: 20 mm
Additional Information
Additional equipment
- 8.5m Infeed Conveyor
- 6m Measuring System
- Light Guards
- Selection of Punches & Dies
Machine Benefits
Technical Machine Benefits
- Flat bar size (min. ): 50x5 mm
- Flat bar size (max. ): 500x20 mm
- Horizontal-wing punches: 3
- Maximum diameter: 40 mm
- Vertical wing punches: 1
- Maximum diameter: 31 mm
- Vertical punching force: 600 kn
- Angle processing (min. Size): 40x40x4 mm
- Angle processing (max. Size): 150x150x15 mm
Machine History
End product
Structural steel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
