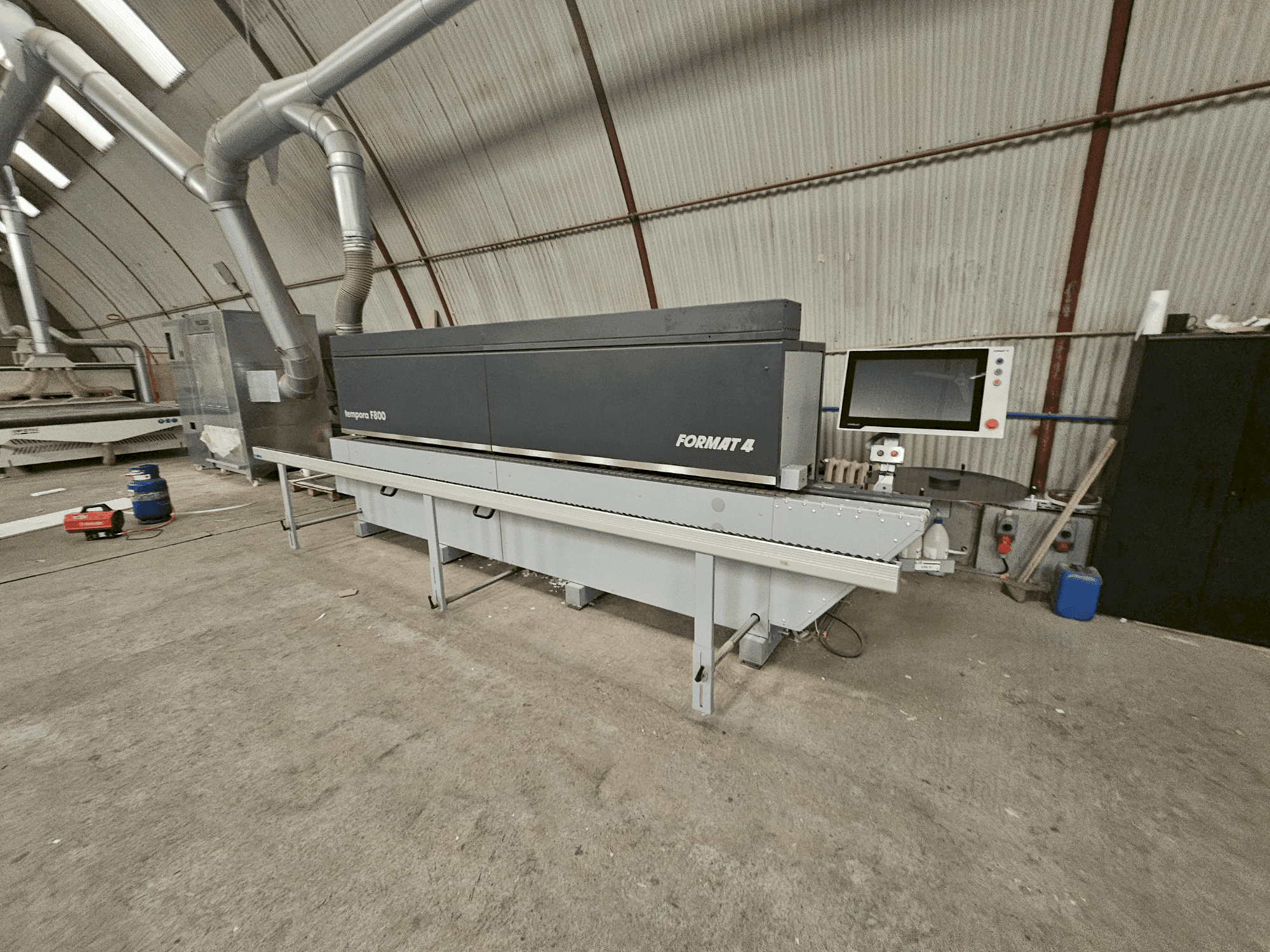

FORMAT4 - Tempora F800 60.12/2 EPL-EDG-FOR-2022-00001

Additional Equipment

• - Control Panel: Smartouch 21" Control System: E-motion // control system with motorized adjustment (accuracy 0.01 mm)
• - Chain Feed System: With automatic lubrication
• - Top Pressure Beam: Motorized height adjustment
• - Pre-milling Unit: 2 x 2.2 kW motors, diamond cutters, up to 3 mm removal
• - Glue Application System: Compatible with EVA and PUR, fast heat-up (8 min)
• - Additional Glue Tank: For fast glue change
• - Edge Pressure Unit: 1 driven + 2 passive rollers, pneumatic control
• - Trimming Unit: 2 motors (0.5 kW), adjustable 0–15°
• - Multi-functional Trimming Unit: 2 motors, 0.75 kW, top and bottom
• - Corner Rounding Unit: Edge thickness 0.4 – 3 mm, panel height 10 – 60 mm, 2 independent motors, 12000 rpm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Feed speed: 12 m/min (optional: 20 m/min)
  • - Min. Panel length: 140 mm
  • - Min. Panel width: 70 mm
  • - Panel height range: 8 – 60 mm
  • - Edge thickness: 0. 4 – 12 mm
  • - Glue pot capacity: 1. 5 kg
  • - Guillotine for coil edge thickness: 0. 4 – 3 mm
  • - Electric load: 3x 400v, 50 hz
