Finn-Power TP 2520 IF2 Turret Punching Machine

Show in original language

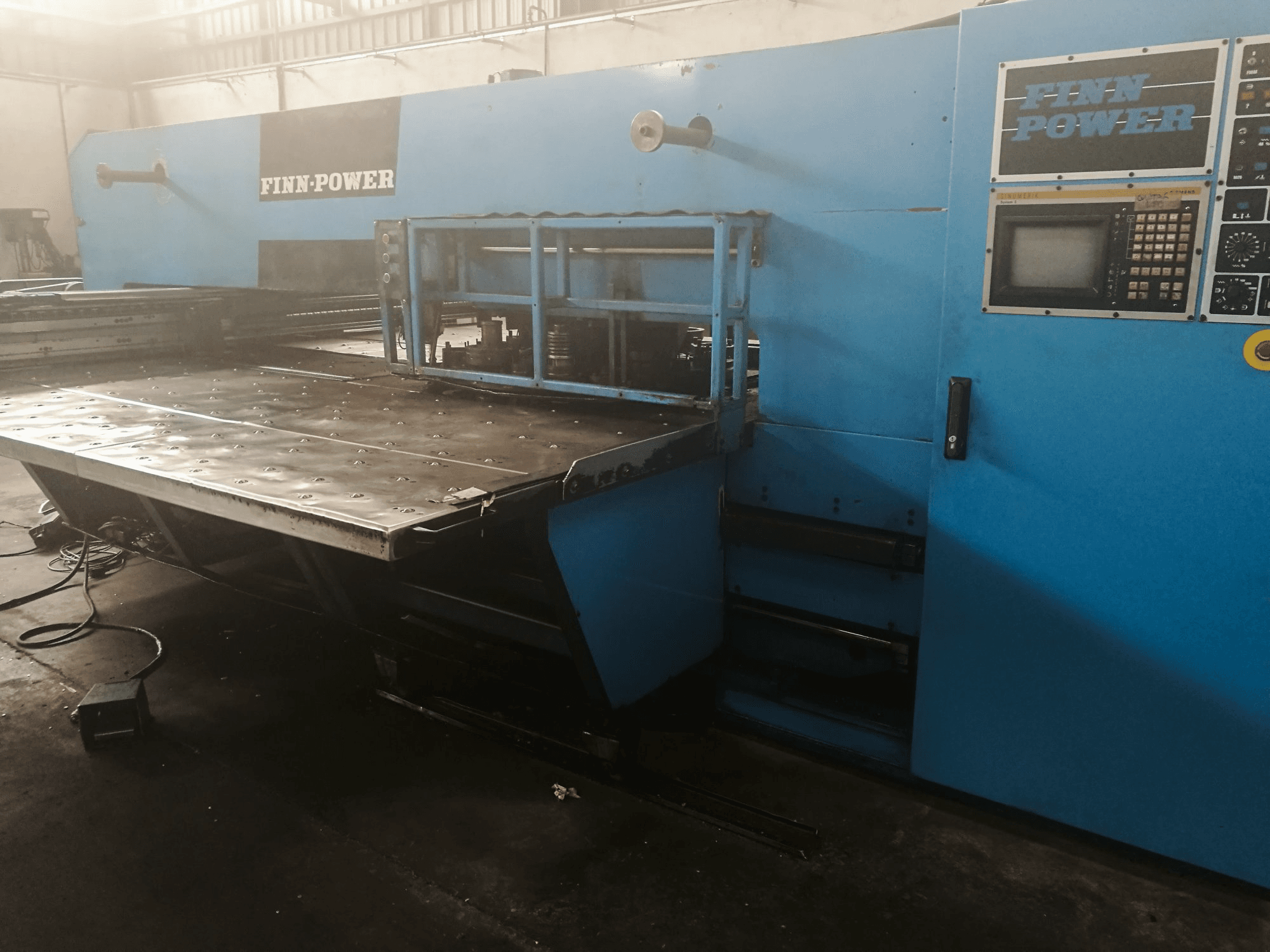

This Finn-Power TP 2520 IF2 Turret Punching Machine, manufactured in 1992, has a production history of approximately 35000 working hours. This closed punching machine is equipped with a SIEMENS SINUMERIK 3N Control unit, and is able to work in an area of 2000 x 1000 mm without the need of repositioning.

Overview

brand: Finn-Power
year: 1992
MODEL: TP 2520 IF2
production hours: 35000
application type: Punching
Location: Spain
machine type: CNC Punch Press
availability: Sold
control unit brand: SIEMENS

Technical Information - Finn-Power TP 2520 IF2

General Data

Measurements width: 5575 mm
Measurements depth: 4920 mm
Measurements height: 2000 mm
Machine weight: 10500 kg

Control Unit

Model: SINUMERIK 3N
Brand: SIEMENS

Movement

X-AXIS Movement: 2084 mm
X-AXIS Working Feed: 88 m/min
X-AXIS Rapid traverse: 115 m/min
Y-AXIS Movement: 1317 mm
Y-AXIS Working Feed: 75 m/min
Y-AXIS Rapid traverse: 115 m/min

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1250 mm
Workpiece weight: 200 kg

Tools

Number of stations: 22
Max tool diameter: 89 mm

Media

Main electronic connection: 380 V
Power consumption: 35 kVA
Air pressure: 6 bar
Lubrication tank: 200 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
