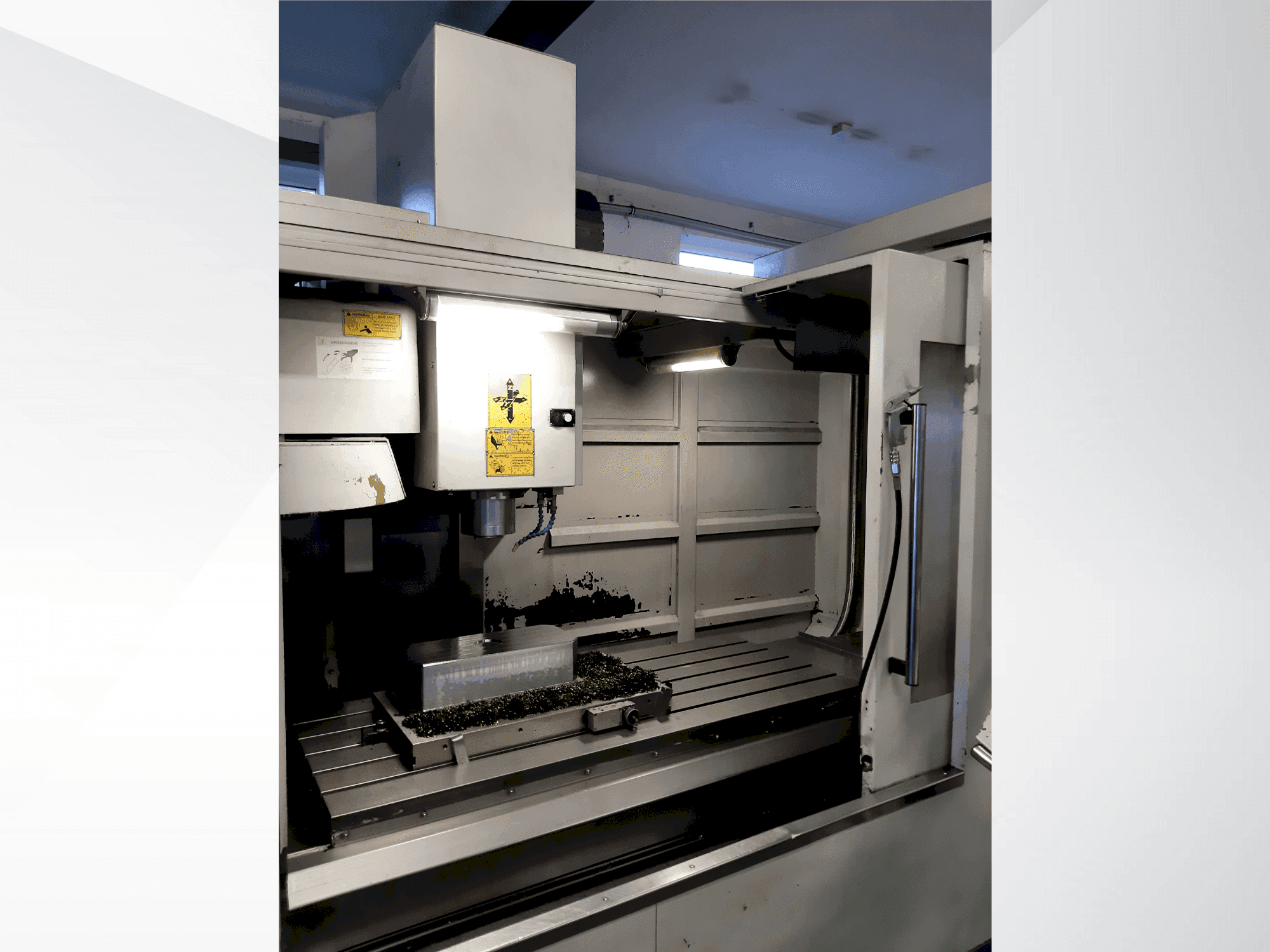

Front view of Finetech SMV-1570-3B machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Finetech SMV-1570-3B

Photo Gallery

Finetech - SMV-1570-3BCZ-MIL-FIN-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Finetech SMV-1570-3B For sale | gindumac.com

Show in original language

This 3-axis Finetech SMV-1570-3B vertical machining center was manufactured in 2012. It features a SIEMENS SINUMERIK 828 D control system, a work table of 1650 mm by 750 mm, and can handle a maximum load of 1,500 kg. The spindle taper is ISO 40, and it includes a 20-tool holder magazine and a chip conveyor. Ideal for robust machining needs. For more information about this vertical machining center, please reach out to us.

Overview

brand: Finetech
year: 2012
MODEL: SMV-1570-3B
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Finetech SMV-1570-3B

General Data

Machine weight: 9000 kg

Control Unit

Model: SINUMERIK 828 D
Brand: SIEMENS

Main drive

Tool taper: ISO 40
Number of axis: 3

Movement

X-AXIS Movement: 1500 MM
Y-AXIS Movement: 700 MM
Z-AXIS Movement: 650 MM

Table

Outer length: 1650 mm
Outer width: 750 mm
Table load: 1500 kg

Media

Chip conveyor: Yes

Additional Equipment

- Feedrates: Max Feed Speed in X Axis: 1500 mm/s / Max Feed Speed in Z Axis: 650 mm/s
- Number of Tools: 20 tool holder magazine
- Control Handwheel

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High load capacity for a wide range of workpieces.
- - Efficient tool management with 20 tool positions.
- - Precision control with siemens sinumerik 828 d.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
