➤ Used FICEP VALIANT 1004 VLFRC For Sale | gindumac.com

Show in original language

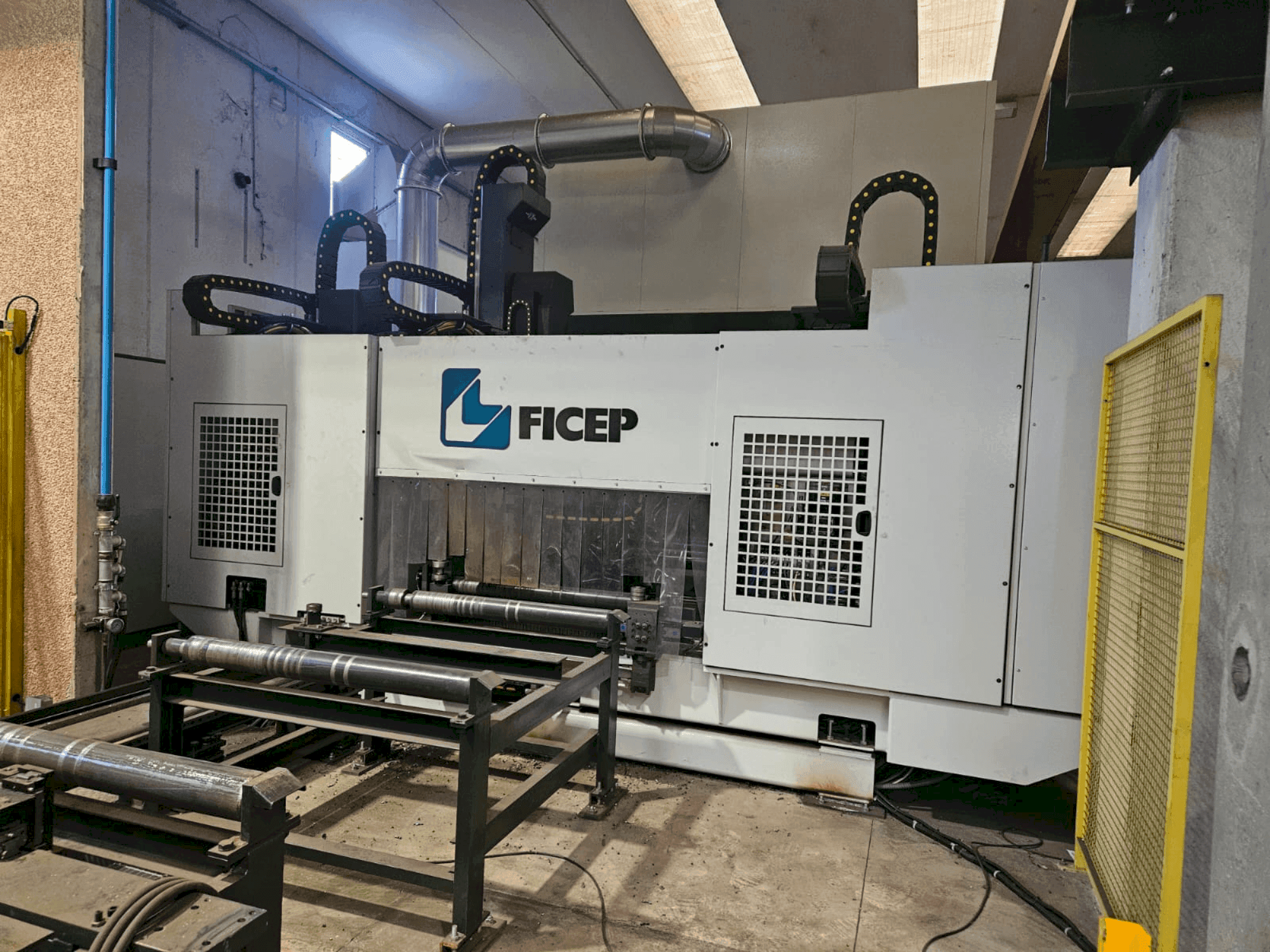

This FICEP VALIANT 1004 VLFRC drilling machine was manufactured in 2022. It features a CNC Automatic Line for Drilling and Thermal Cutting with a Flexible Robot "FRC". Capable of handling profiles from 80 mm to 1015 mm in height and up to 450 mm in width, it supports a maximum length of 15,000 mm. Ideal for processing I-beams, U-channels, angle irons, flat bars, and rectangular tubes. Contact us for more information about this machine.

Overview

brand: FICEP
year: 2022
MODEL: VALIANT 1004 VLFRC
application type: Other Machine Tools
Location: Italy
machine type: Drilling Machine (Metal)

Technical Information - FICEP VALIANT 1004 VLFRC

Main drive

Spindle speed range: 180-5000 1/MIN
Spindle motor power: 31 KW
Tool taper: HSK-A80

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Transferable length: 2500 - 15000 mm
- - Profile height: 80 - 1015 mm
- - Profile width: 10 - 450 mm
- - Processable materials include i-beams, u-channels, angle irons, flat bars, square tubes, and rectangular tubes
- - Max. Drilling diameter: 40 mm
- - Max. Drilling thickness: 100 mm
- - Drilling feed speed: 40 – 1000 mm/min
- - Rapid approach/return speed: 30 m/min
- - Max. Profile linear weight: 450 kg/m
- - Max. Bar longitudinal feed speed: 50 m/min
Qualitative Machine Benefits:
- - Horizontal head positioning speed: 30 m/min
- - Vertical head positioning speed: 30 m/min
- - Working table height: 865 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
