FANUC Robodrill Alpha T21iE Vertical Machining Center

Show in original language

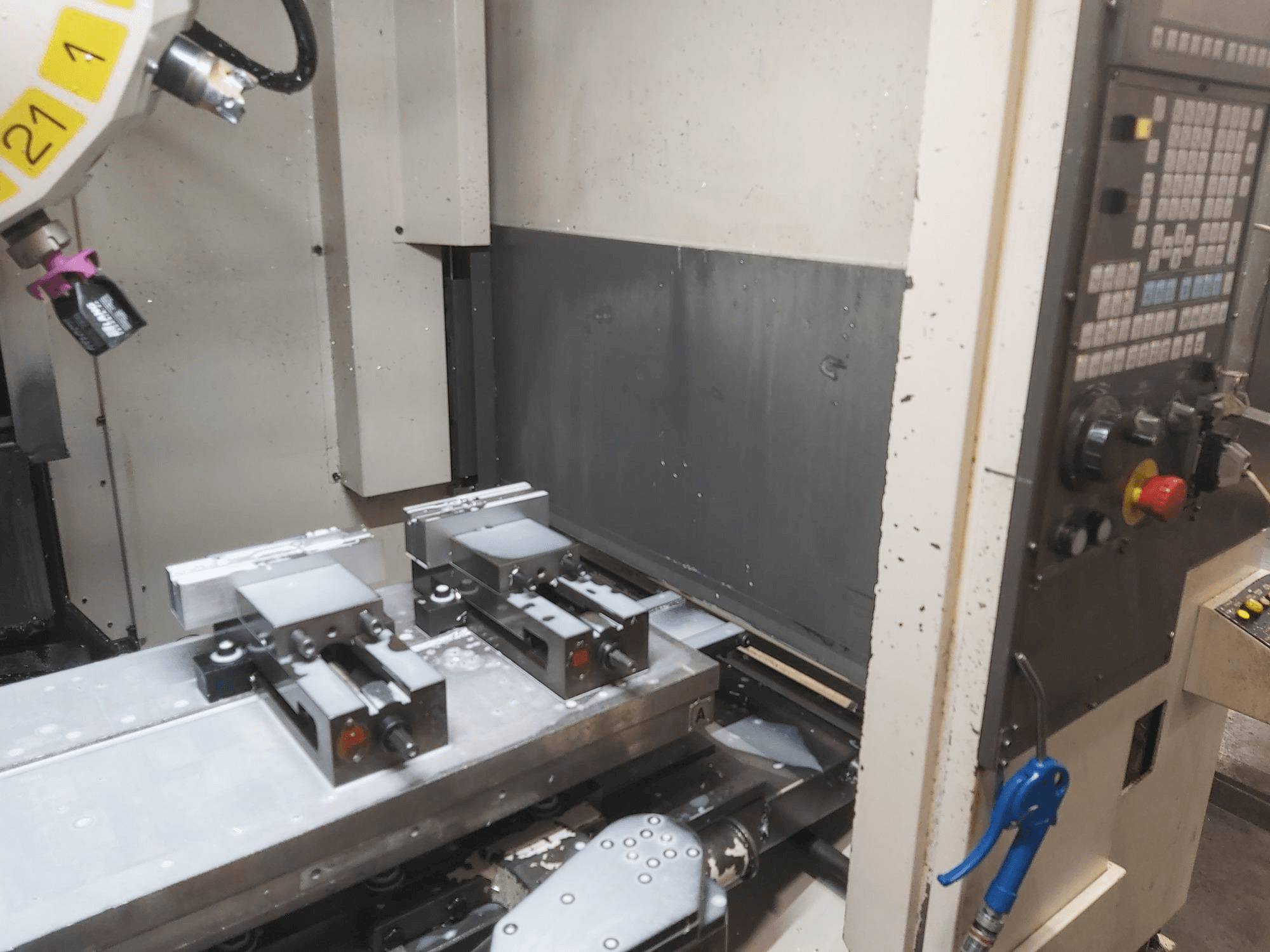

This FANUC Robodrill Alpha T21iE Vertical Machining Center was made in Japan in the year 2007. It is operated through a Fanuc Series 31i - Model A5 control unit. This machine operates with a spindle speed up to 10000 rpm.

Overview

brand: FANUC
year: 2007
MODEL: Robodrill Alpha T21iE
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC Robodrill Alpha T21iE

Control Unit

Model: Series 31i - MODEL A5
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Table

Outer length: 850 mm
Outer width: 400 mm

Tools

Slots in storage: 21
Max weight: 2 kg
Max tool diameter: 80 mm
Max tool length: 200 mm
Type of tool holder: BT30

Additional Equipment

- Pallet changer 2 pallets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
