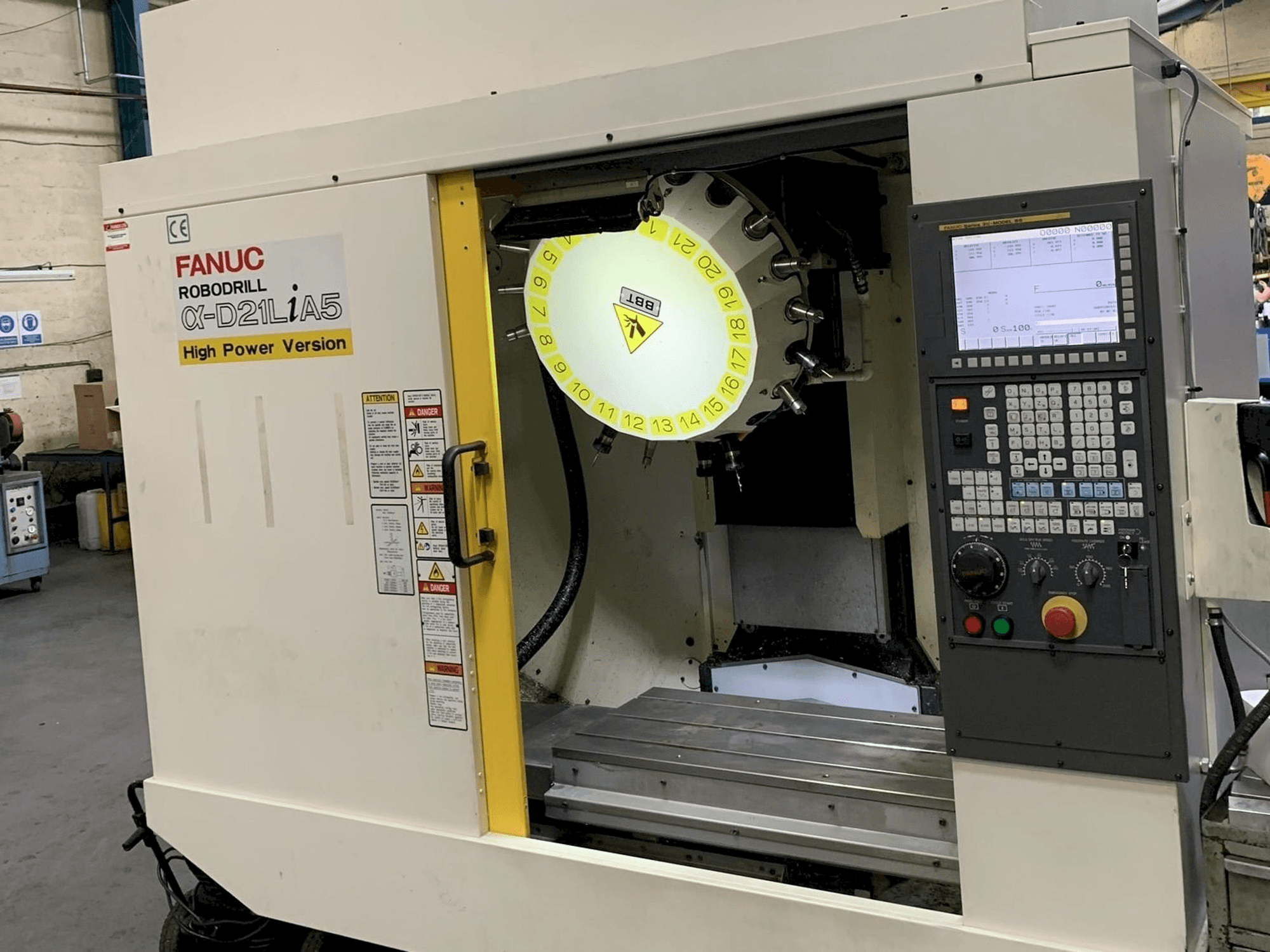

Front view of FANUC Robodrill Alpha D21LiA5 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Robodrill Alpha D21LiA5

Photo Gallery

FANUC - Robodrill Alpha D21LiA5GB-MIL-FAN-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FANUC Robodrill Alpha D21LiA5 Vertical Machining Center

Show in original language

This FANUC Robodrill Alpha D21LiA5 Vertical Machining Center was manufactured in Japan in the year 2016. It has been working for only 1300 hours. This machine is equipped with a FANUC 31i Control unit and operates with a spindle speed up to 24000 rpm.

Overview

brand: FANUC
year: 2016
MODEL: Robodrill Alpha D21LiA5
production hours: 1300
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FANUC Robodrill Alpha D21LiA5

General Data

Measurements width: 2115 mm
Measurements depth: 1900 mm
Measurements height: 2182 mm

Control Unit

Model: 31l
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 24000 1/MIN
Spindle motor power: 26 kW

Movement

X-AXIS Movement: 700 mm
X-AXIS Working Feed: 30 m/min
X-AXIS Rapid traverse: 54 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Working Feed: 30 m/min
Y-AXIS Rapid traverse: 54 m/min
Z-AXIS Movement: 330 mm
Z-AXIS Working Feed: 30 m/min
Z-AXIS Rapid traverse: 54 m/min

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 850 mm
Outer width: 410 mm
Min distance between vertical spindle and table: 250 mm
Max distance between vertical spindle and table: 580 mm

Tools

Slots in storage: 21
Max tool diameter: 40 mm
Max tool length: 200 mm
Type of tool holder: BT30

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
