This machine was recently sold. Take a look at similar options or get in touch with us directly.
FANUC - Robodrill - Häberle WKM2-B01 (A1)DE-MIL-FAN-2014-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

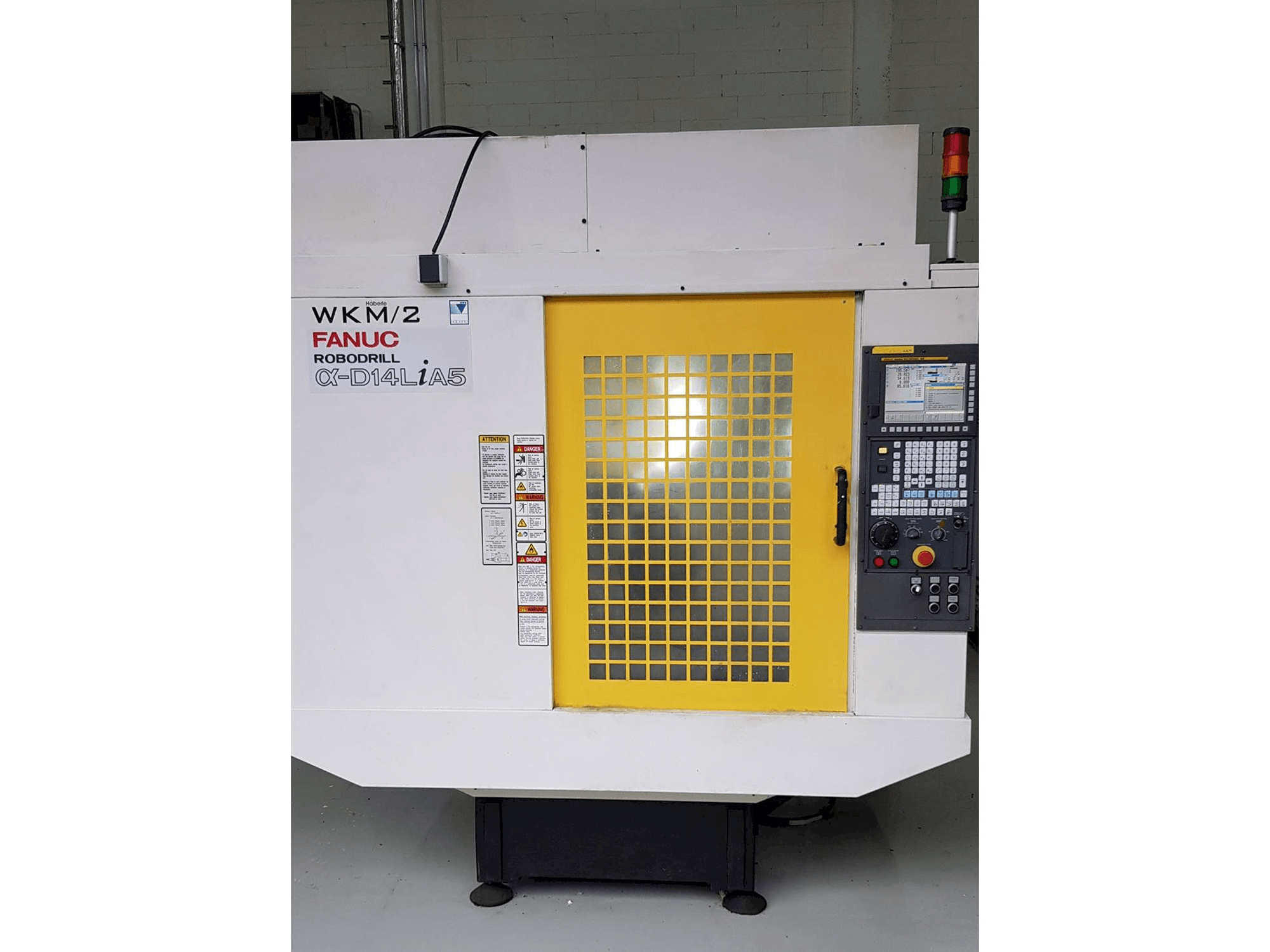

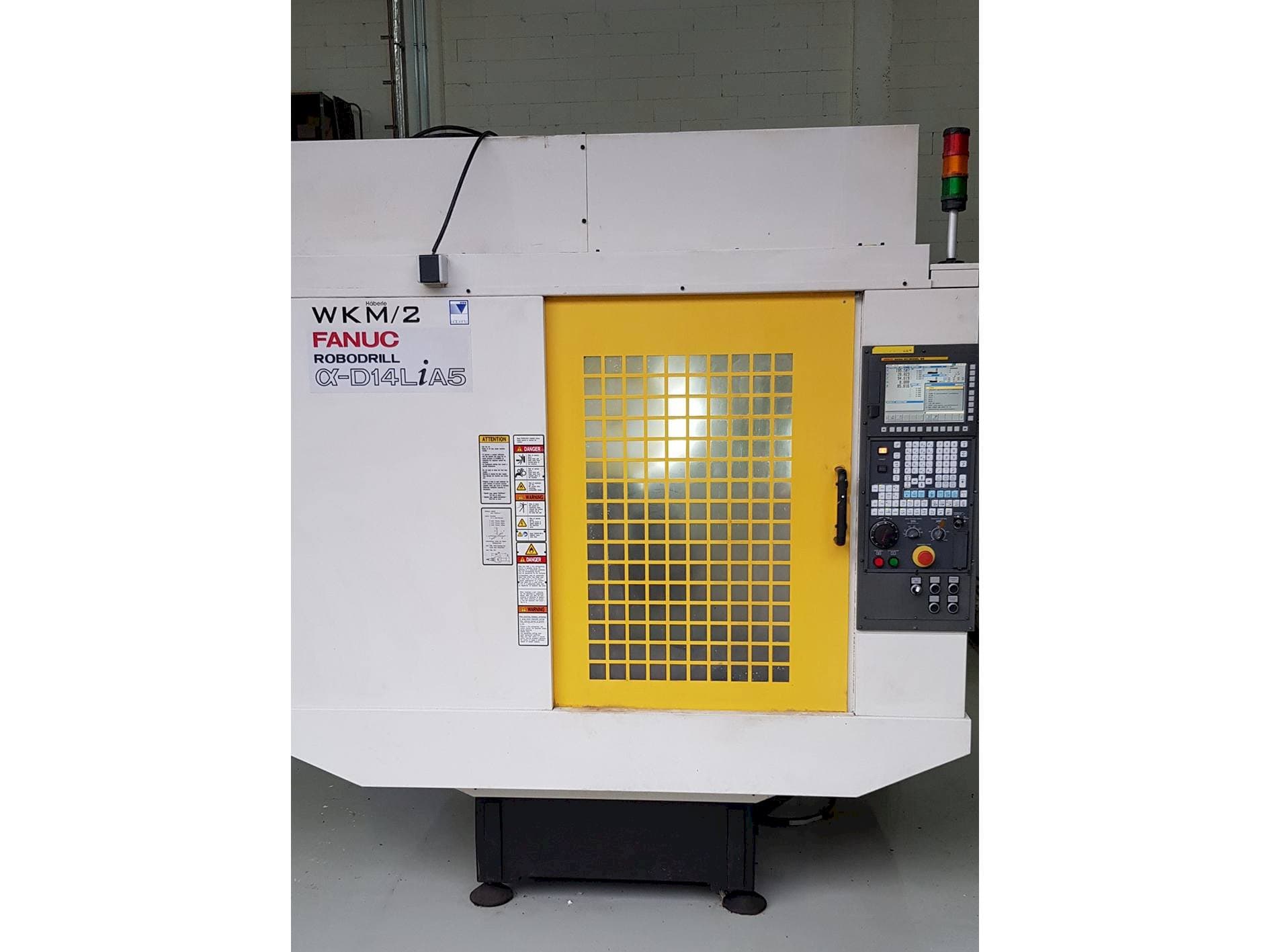

- FANUC Robodrill - Häberle WKM2-B01 (A1) Vertical Machine Center
This FANUC Robodrill - Häberle WKM2-B01 (A1) Vertical Machine Center was made in the year 2014 in Japan. It is operated through a FANUC 311B5 control unit and it works with a spindle speed up to 10000 rpm. This 5 axis machine has been working for 16688 hours and counts with a table size of 850 x 410 mm
Overview
- brand: FANUC
- year: 2014
- MODEL: Robodrill - Häberle WKM2-B01 (A1)
- production hours: 16688
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FANUC Robodrill - Häberle WKM2-B01 (A1)
Control Unit
- Control Brand: FANUC
- Control Model: 311B5
Dimensions
- Machine Weight: 2200 kg
- Table Length: 850 mm
- Table Width: 410 mm
Movement
- X-axis Travel: 650 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 330 mm
Technical Specification
- Max. Tool Weight: 3 kg
- Spindle Power: 5.5 kW
- Spindle Speed: 10000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Distance table surface/spindle measuring level 250 - 580 mm with 10103
- 13 disc places
- Rapid traverse 36
- 3d probe
- Coolant drain 3" height 230 mm central
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
