- ➤ Used EXPERT cut Expert ecocam 2 For Sale | gindumac.com

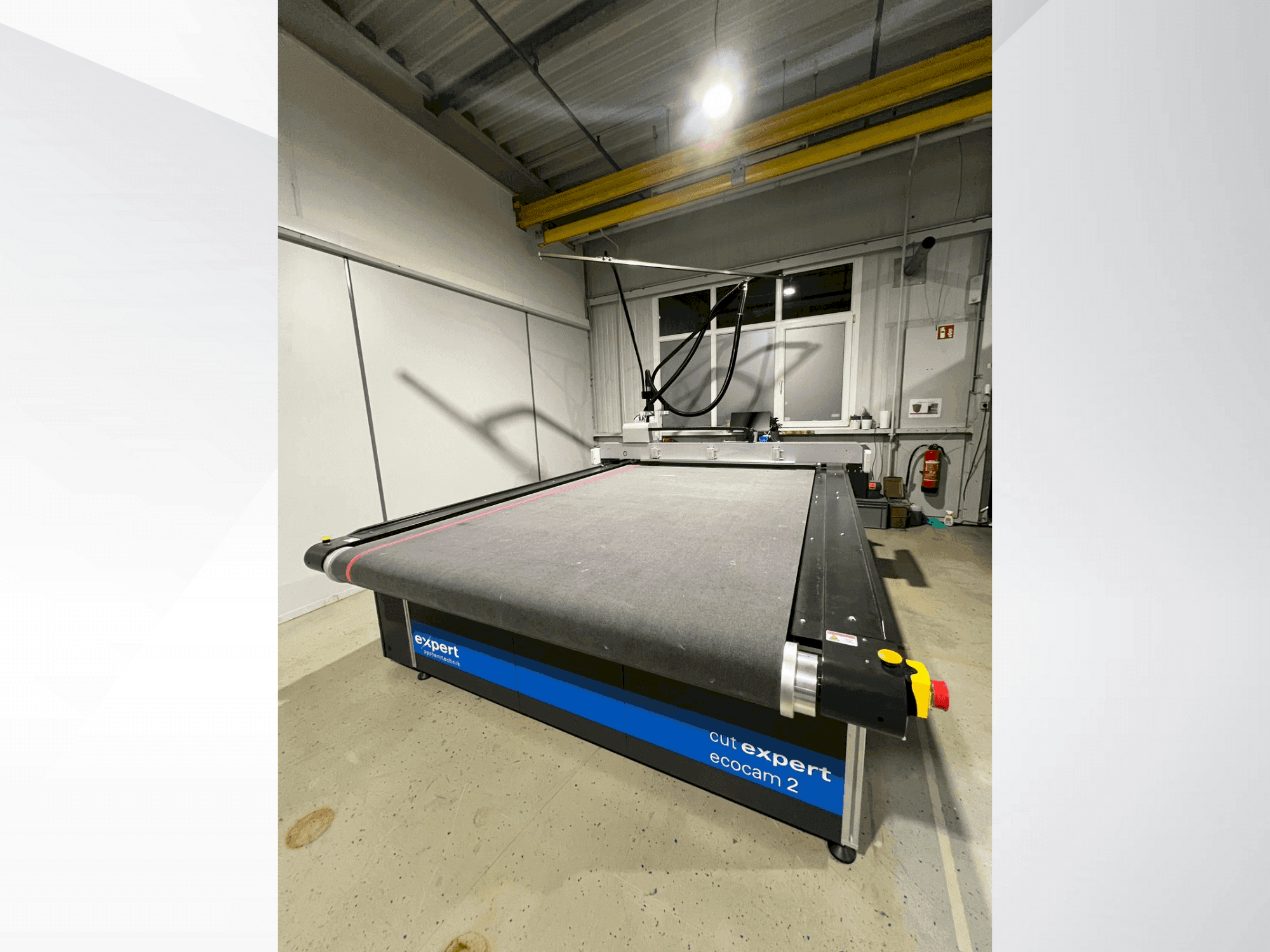

This EXPERT cut Expert ecocam 2 was manufactured in 2024. It features a high positioning speed of 90 m/min and can handle cutting heights up to 100 mm. The machine operates on a PC-based NC software and supports various tool options including electric oscillating knives and driven circular knives. Ideal for cutting leather, textiles, and foams. For more information about this machine, please reach out to us.
Overview
- brand: EXPERT
- year: 2024
- MODEL: cut Expert ecocam 2
- application type: Other Machine Tools
- Location: Germany
- machine type: Machine Tool
Technical Information - EXPERT cut Expert ecocam 2
Additional Information
- Technical Machine Benefits:
- - Positioning speed: 90 m/min / cutting height: standard: up to 50 mm / special version: up to 100 mm / repeat accuracy: ±0. 25 mm / precision: 0. 1 mm
- - Material layers: single layers or low layers
- - Electrical requirements: operating voltage: 400 vac, 50/60 hz / current: 63-125 a / control: pc-based nc software / compressed air: standard: 6. 0 bar / 200 l/min / for pneumatic knives: 8. 5 bar / 600 l/min
- - Working area (standard sizes): maximum size: 7500 x 3200 mm / further options: 3500 x 2100 mm, 5500 x 3200 mm, etc. / customization: customer-specific sizes possible
- - Tool options: fot: electric oscillating knife (up to 15000 oscillations/min) / prt: driven circular knife (up to 11000 rpm) / kct: kiss-cut tool (gentle on the surface) uct: universal cutter (tangentially controlled) / v-cut: angle-cut knife / milling head: with suction device
- - Nest expert: optimum material utilization / pattern expert: cad template management / order expert: erp connection (e. G. , sap) / pick-up expert: visual sorting aid
- - Areas of application: cutting of leather, technical textiles, foams, plastics, rubber, composite materials, prepregs, sealing materials, foils, cardboard
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
