Euromac STX Flex 12 Punching machine

Show in original language

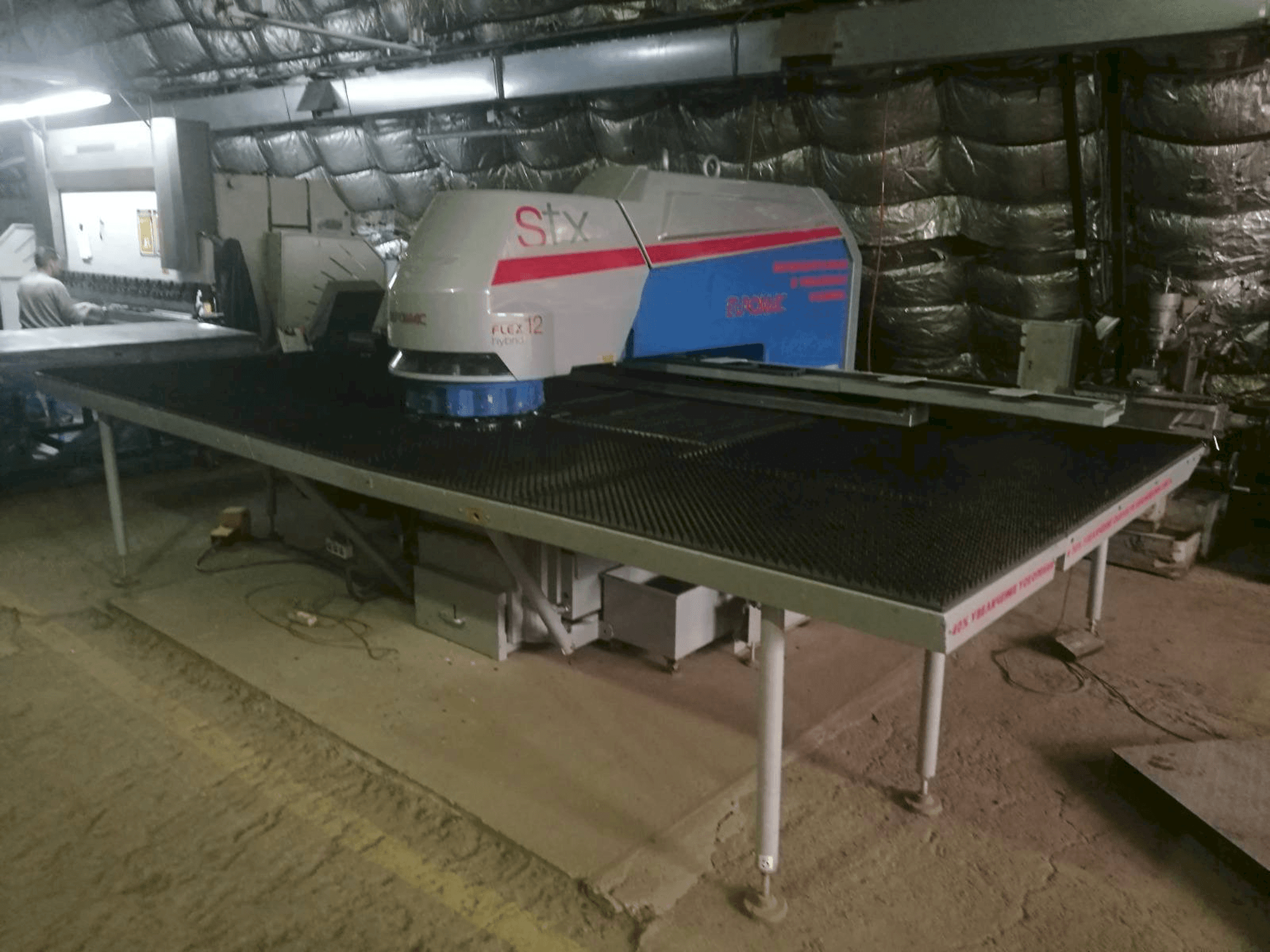

This Euromac STX Flex 12 Punching Machine was manufactured in the year 2015 in Italy. It is equipped with a control unit of the same brand. This machine can operate with a punching force of 300 kN.

Overview

brand: Euromac
year: 2015
MODEL: STX Flex 12
application type: Punching
Location: Belarus
machine type: CNC Punch Press
availability: Sold

Technical Information - Euromac STX Flex 12

General Data

Measurements width: 4840 mm
Measurements depth: 3630 mm
Machine weight: 8500 Kg

Main drive

Punching force: 300 kN

Movement

X-AXIS Movement: 1300 / 1250 mm
Y-AXIS Movement: 2500 mm

Media

Main electronic connection: 8,5 kW
Power consumption: 4,5 kW/h

Additional Equipment

- USB port: 6

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Marking: 2000
- - Numerically control stroke depth: from 0. 1 to 31 mm
- - Hydraulic servomotor controlled system: standard
- - Position accuracy: +/- 0. 05 mm
- - Precision in forming repeatability: +/- 0. 1 mm
- - Opening of clamps: 11 mm
- - Automatic positioning clamps: 2
- - Max. Hit rate: 1 min
- - Punching with 20 mm pitch: 460
- - Nibbling with 1 mm pitch: 1080

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
