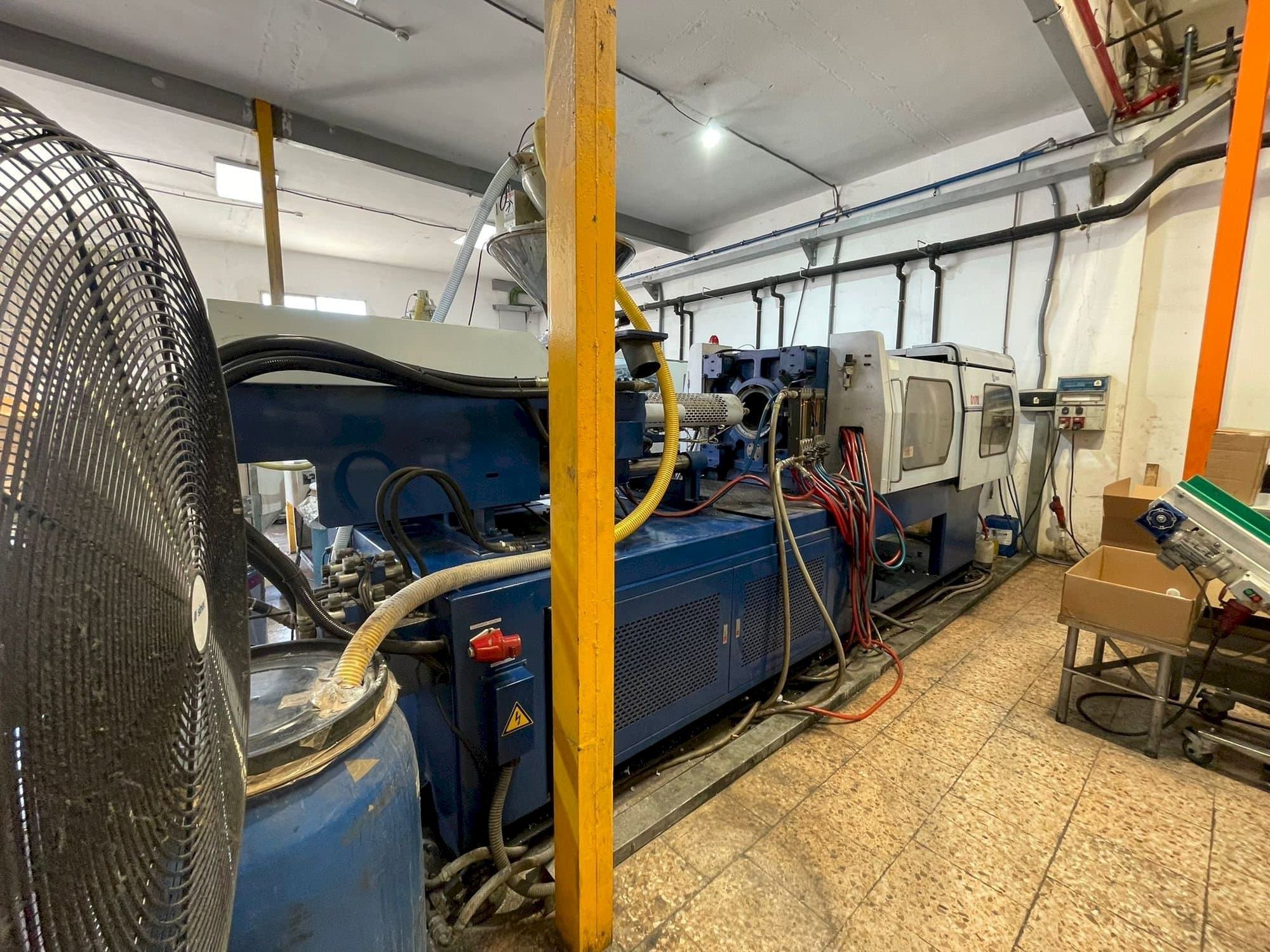

Euroinj D170 injection moulding machine

Show in original language

This Euroinj D170 injection moulding machine was built in the year 2012. The machine has a clamping force of 1700 kN and a screw diameter of 55 mm.

Overview

brand: Euroinj
year: 2012
MODEL: D170
application type: Injection Moulding
Location: Spain
machine type: Electrical Injection Moulding Machine

Technical Information - Euroinj D170

General Data

Measurements width: 6200 mm
Measurements depth: 1350 mm
Measurements height: 2000 mm
Machine weight: 10000 kg

Injection Unit

Screw diameter: 55 mm
Shot weight: 555 g
Stroke volume: 617 CM³
Injection pressure: 1691 bar

Clamping unit

Clamping force: 1700 kn
Opening stroke: 475 mm
Max open daylight: 650 mm
Distance between bars: 1125 mm
Mould height min: 150 mm
Mould height max: 150 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection index 199 g/seg
- - Screw stroke 260 mm
- - Distance columns 1125 mm
- - Diameter columns 510 x 510 mm
- - Max. Travel expansion 100 mm
- - Motor pump 30 - 40 hp
- - Hydraulic pressure 140 bar
- - Heating capacity 10,9 kw
- - No. Of heating zones 4+n
- - Oil tank capacity 450l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
