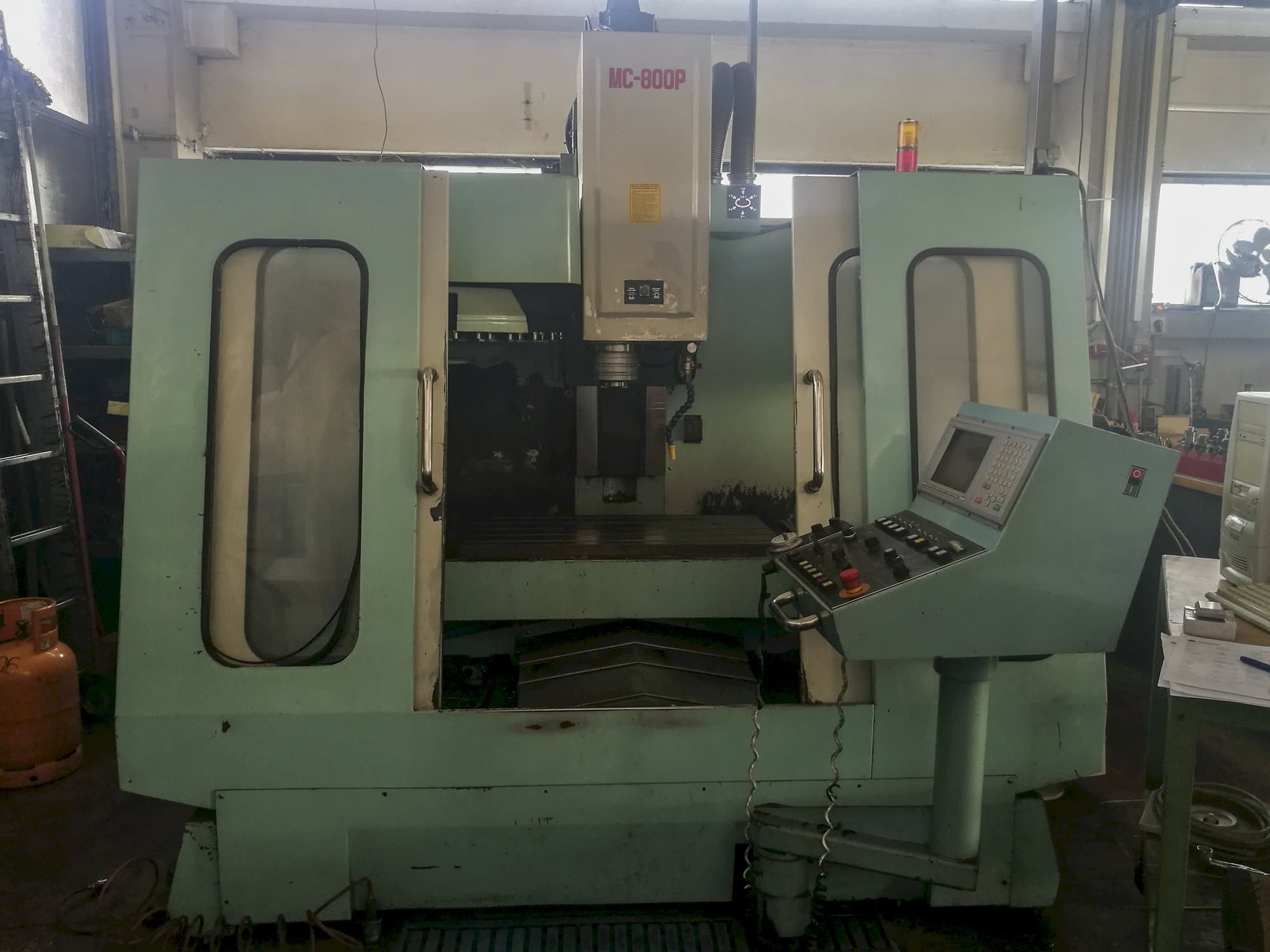

Eumach MC-800P Vertical Machining Center

Show in original language

This Eumach MC-800P Vertical Machining Center from 1997 was fabricated in Taiwan and has a production time of approximately 36000 working hours. Operated through a Mitsubishi Meldas 520 Control unit, this model allows simultaneous axis operation and stands out due to a big table. During the past, this machine has mainly worked with steel parts. A Renishaw workpiece probe is available upon request.

Overview

brand: Eumach
year: 1997
MODEL: MC-800P
production hours: 36000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: MITSUBISHI

Technical Information - Eumach MC-800P

General Data

Measurements width: 2400 mm
Measurements depth: 3000 mm
Measurements height: 2600 mm
Machine weight: 5500 kg

Control Unit

Model: Meldas 520
CNC main language: English
Brand: MITSUBISHI

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/min

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 1000 mm
Outer width: 500 mm
Number of tslots: 5
Distance between: 100 mm

Tools

Slots in storage: 24
Max weight: 7 kg
Max tool diameter: 150 mm
Max tool length: 300 mm
Type of tool holder: BT40

Media

Main electronic connection: 220 V
Power consumption: 20 kVA

Additional Information

Additional equipment

Renishaw workpiece probe (upon request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
