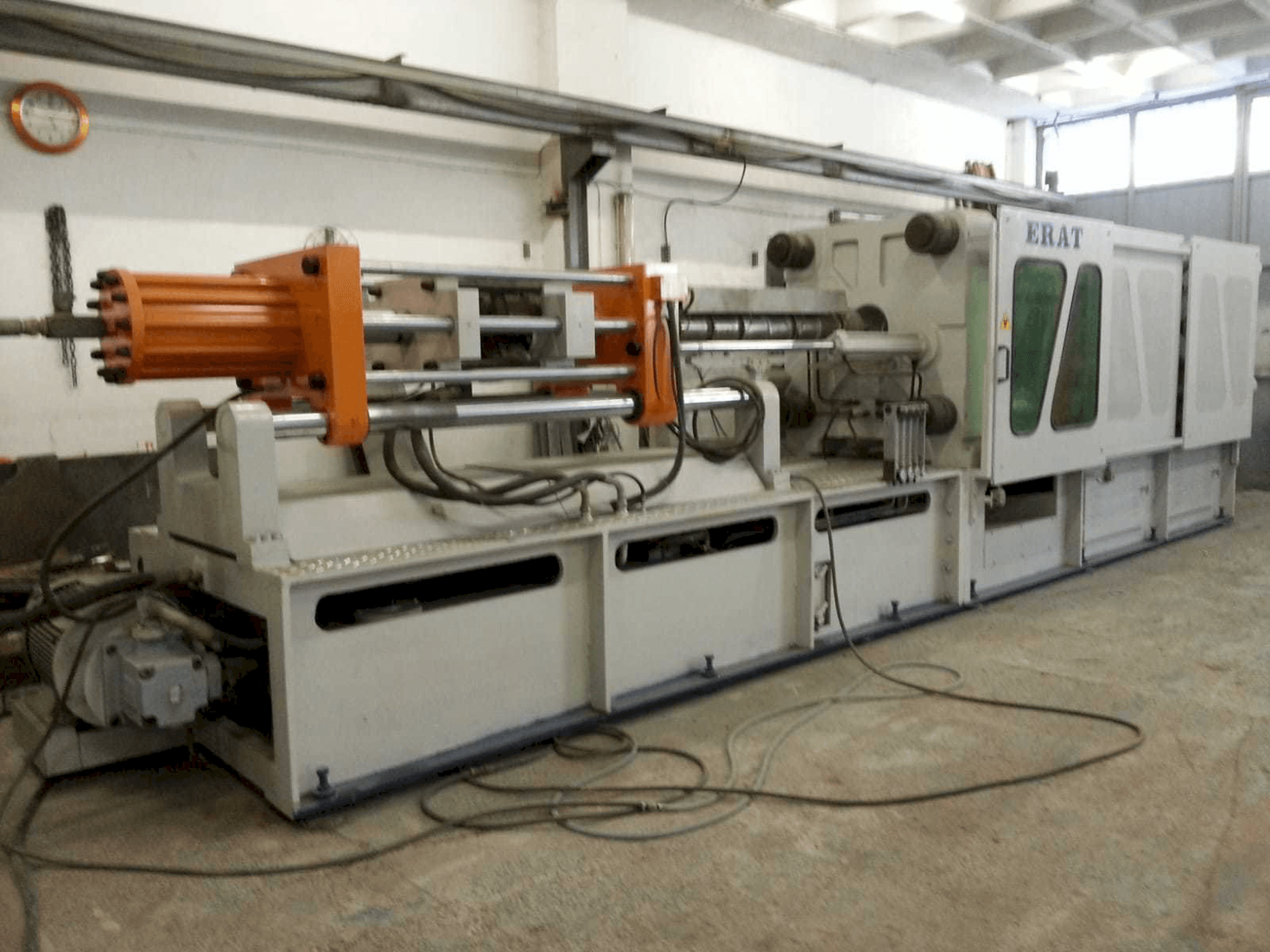

Front view of ERAT 3000/775 machine
Front view of ERAT 3000/775 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

ERAT - 3000/775TR-INJ-ERA-2015-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ERAT 3000/775 Injection Moulding Machine was manufactured in the year 2015. This powerful machine can operate with a clamping force of 7750kN.

Overview

  • brand: ERAT
  • year: 2015
  • MODEL: 3000/775
  • application type: Injection Moulding
  • Location: Turkey
  • machine type: Hydraulic Injection Moulding Machine

Technical Information - ERAT 3000/775

General Data

  • Measurements width: 1430 mm
  • Measurements depth: 8370 mm
  • Machine weight: 35000 kg

Injection Unit

  • Screw diameter: 90 mm
  • Stroke volume: 420 mm CM³
  • Heating capacity: 30 kW
  • Adjustable heating zones: 6

Clamping unit

  • Clamping force: 7750 kN
  • Opening stroke: 775 mm
  • Distance between bars: 850x850 mm
  • Mould height min: 300 mm
  • Mould height max: 1000 mm
  • Size of mold platens: 1240x1240 mm

Media

  • Power consumption: 55 kW

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Injection force: 100 kn

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
