ENGEL ES 4400/800 Injection Moulding Machine

Show in original language

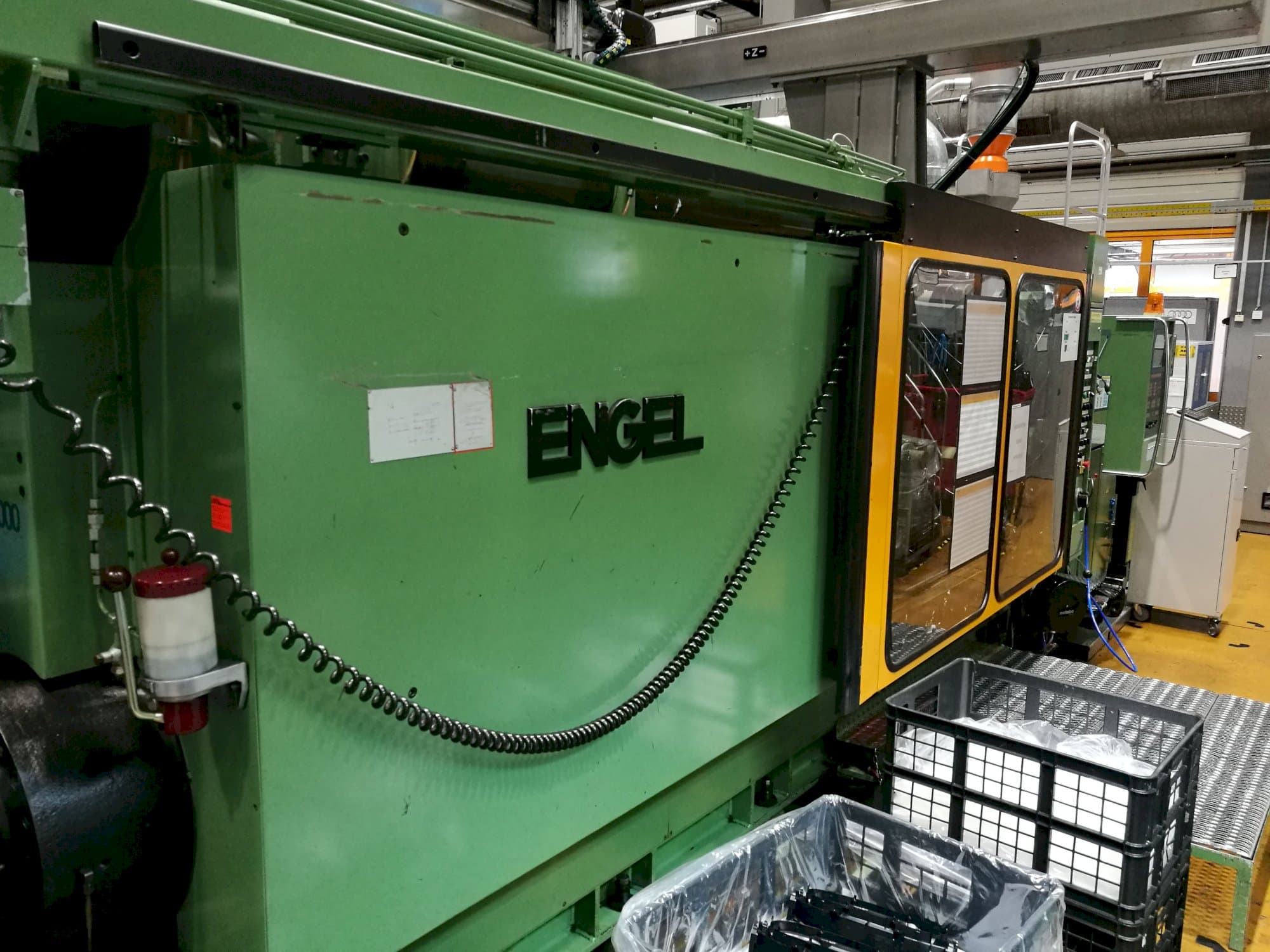

This ENGEL ES 4400/800 Injection Moulding Machine was made in 1991 in Austria. Equipped with a control unit of the same brand, this machine is capable of working with a clamping force up to 10000 kN.

Overview

brand: Engel
year: 1991
MODEL: ES 4400/800
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel ES 4400/800

General Data

Measurements width: 15000 mm
Measurements depth: 5500 mm
Measurements height: 2700 mm
Machine weight: 61000 kg

Control Unit

CNC main language: German
CNC language customizable: Yes
Brand: ENGEL

Injection Unit

Screw diameter: 80 mm
Stroke volume: 1960 cm³
Screw speed: 5-150 1/min
Heating capacity: 30.2 kW
Adjustable heating zones: 10
Nozzle pressure: 150 bar

Clamping unit

Clamping force: 10000 kN
Opening stroke: 1000 mm
Distance between bars: 1000x1000 mm
Mould height min: 400 mm
Mould height max: 1000 mm
Size of mold platens: 1500x1500 mm
Ejector stroke: 300 mm
Ejector force for / back: 215 kN

Media

Internal cooling: Yes

Additional Equipment

- Handling ENGEL ERC74/1-E YOM 2004

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
