Engel - Duo 16050/2300DE-INJ-ENG-2002-00006
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Plastics Processing Machinery
- ENGEL Duo 16050/2300 Injection moulding machine
Show in original language

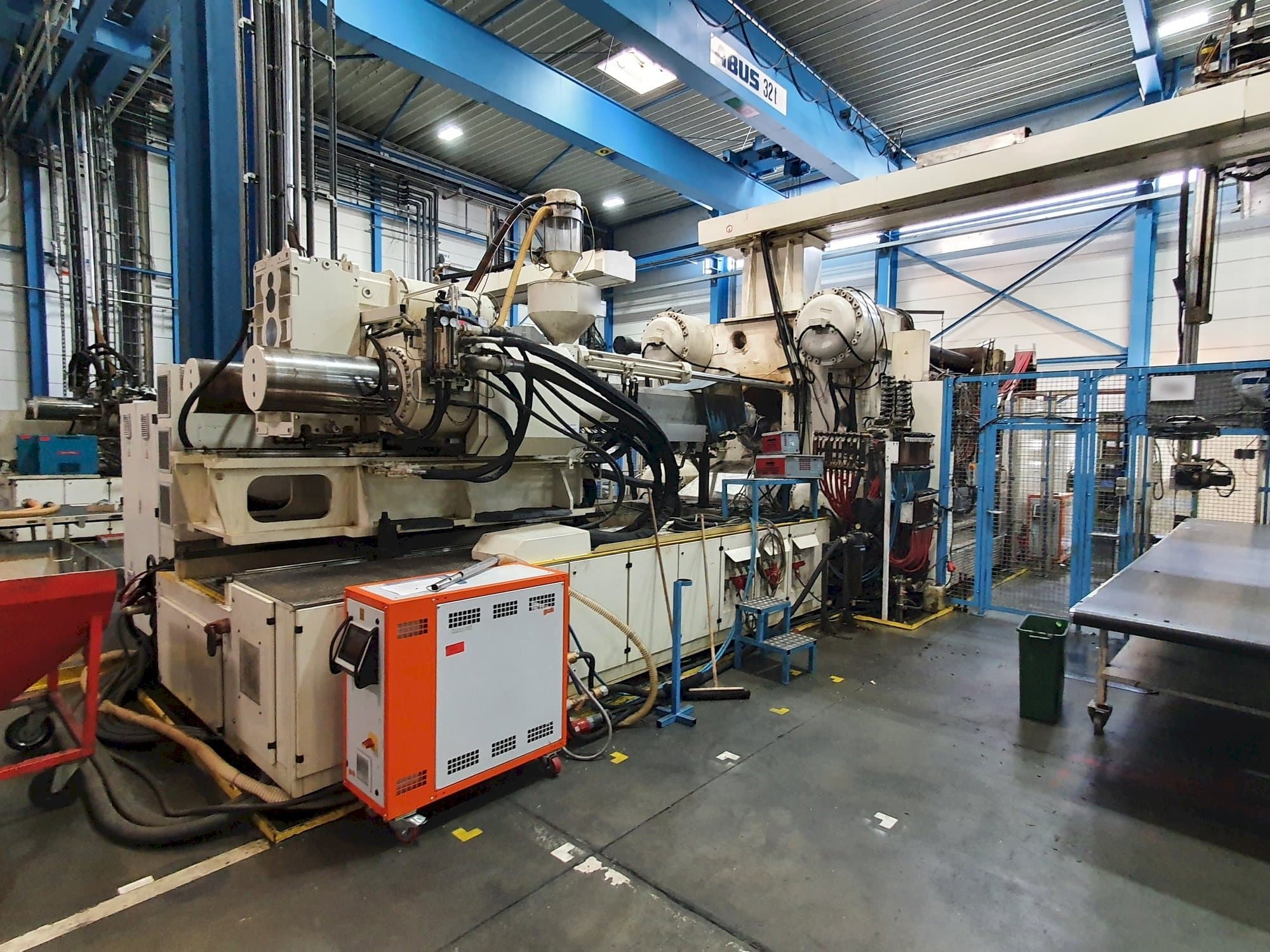

This ENGEL Duo 16050/2300 Injection moulding machine was made in 2002. It is equipped with an Engel control unit. The machine has a clamping force of 23000 kN and a screw diameter of 135 mm.
Overview
- brand: Engel
- year: 2002
- MODEL: Duo 16050/2300
- production hours: 4985
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- control unit brand: ENGEL
Technical Information - Engel Duo 16050/2300
General Data
- Machine weight: 14100 kg
Control Unit
- Brand: ENGEL
Injection Unit
- Screw diameter: 135 mm
- Injection pressure: 16400 N/cm3 BAR
Clamping unit
- Clamping force: 23000 kN
- Opening stroke: 3000 mm
Additional Information
- Technical Machine Benefits:
- - Bar distance horizontal/vertical 2000/1600 mm
- - Clamping platen horizontal/vertical, 2900/2500 mm
- - Mold installation height max/min 2000/800 mm
- - Total mold weight: 54000 kg
- - Centering ds/as :250/250 mm
- - Crosshead thread m30
- - Injection volume 8870 cm3
- - Cascade 15-fold, core pulls fap/bap 2/3
- - Heating circuits ma/psg 40/12
- Qualitative Machine Benefits:
- - Linear handling robot engel type erc xxl
- - Protective enclosure
- - 560 kw
Machine Benefits
