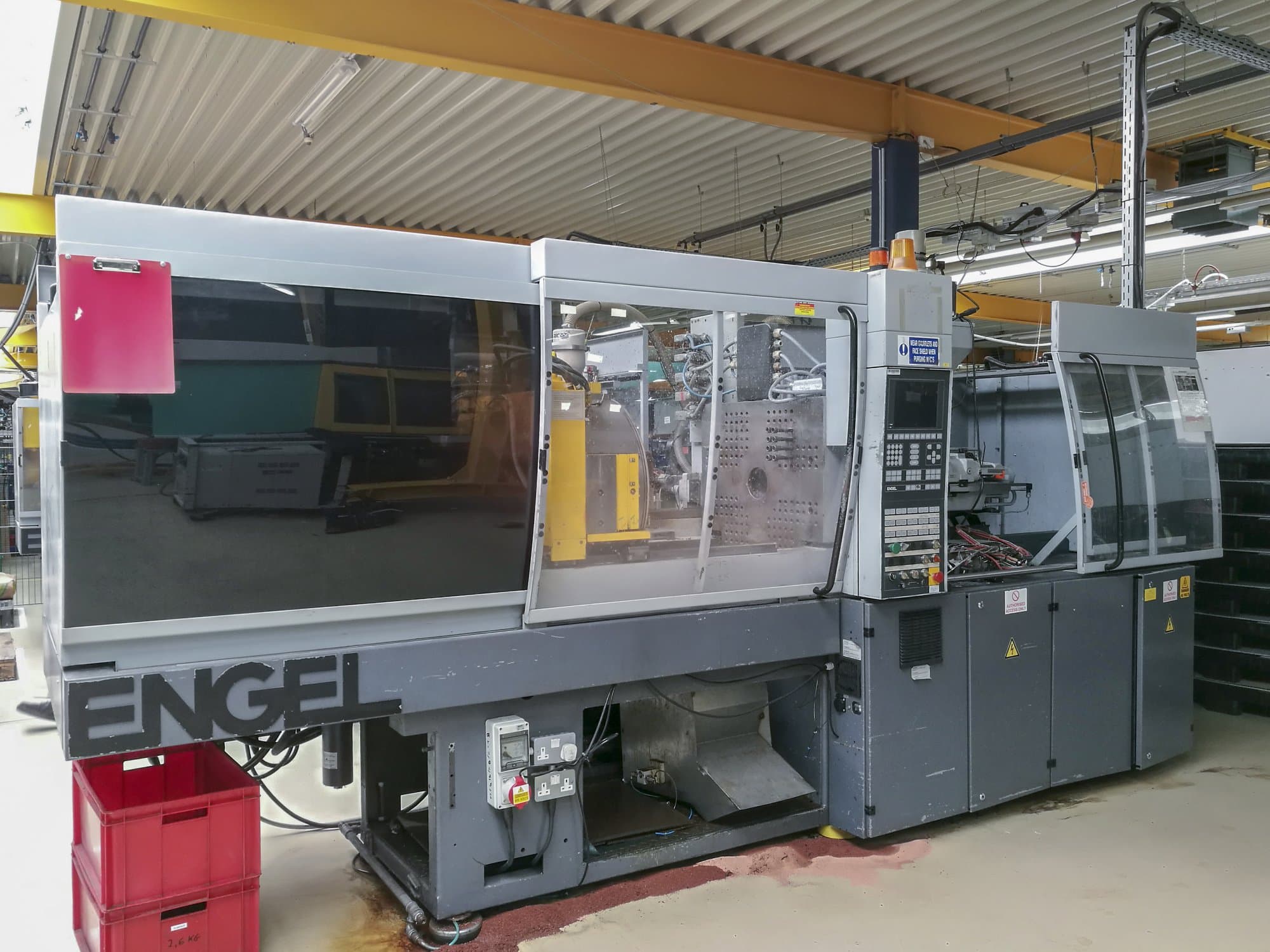

Front view 1 of ENGEL 80H80L/80 HL-2F Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel 80H80L/80 HL-2F

Photo Gallery

Engel - 80H80L/80 HL-2FDE-INJ-ENG-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
ENGEL 80H80L/80 HL-2F Injection Moulding Machine

Show in original language

This ENGEL 80H80L/80 HL-2F Injection Moulding Machine from 1997 was made in Austria and has been operative for 97920 production hours since then. Equipped with an ENGEL CC 100 Control unit, this model has worked with plastics, producing connector plugs for the automotive industry.

Overview

brand: Engel
year: 1997
MODEL: 80H80L/80 HL-2F
production hours: 97920
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel 80H80L/80 HL-2F

General Data

Measurements width: 3710 mm
Measurements depth: 2010 mm
Measurements height: 2100 mm
Machine weight: 7200 kg

Control Unit

Model: CC 100
Brand: ENGEL

Injection Unit

Screw diameter: 25 mm
Stroke volume: 49 cm³
Injection pressure: 1150 bar
Plasticizing rate max.: 9 g/s PS
Screw speed: 20-300 1/min
Heating capacity: 6 kW
Nozzle pressure: 28 kN

Clamping unit

Clamping force: 800 kN
Opening stroke: 500 mm
Max open daylight: 130 mm
Distance between bars: 780x660 mm
Ejector stroke: 130 mm
Ejector force for / back: 40 kN

Media

Oil tank: 260 L
Oil water separator: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
