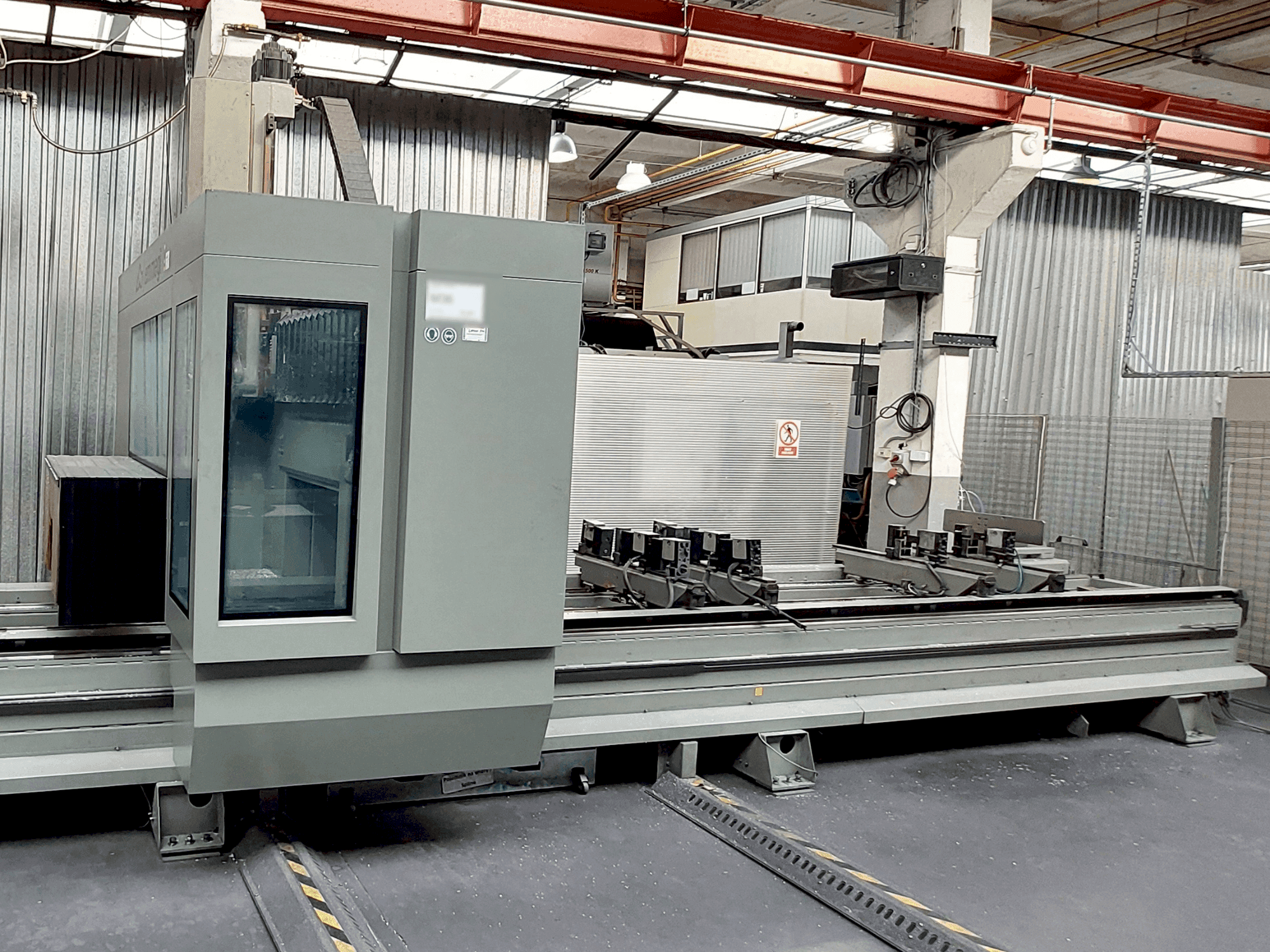

Front view of Emmegi Emmegi Diamant XL7700 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Emmegi Emmegi Diamant XL7700

Photo Gallery

Emmegi - Emmegi Diamant XL7700PL-MIL-EMM-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Emmegi Emmegi Diamant XL7700 | Universal Center

Show in original language

This 4-axis Emmegi Diamant XL7700 universal machining center was manufactured in 2013. It features a large working area with X-Axis at 7700 mm, Y-Axis at 900 mm, and Z-Axis at 380 mm. The spindle can reach speeds up to 20,000 rpm, ideal for diverse machining tasks. A great opportunity to buy this Emmegi Diamant XL7700 universal machining center. Contact us for further details regarding this universal machining center.

Overview

brand: Emmegi
year: 2013
MODEL: Emmegi Diamant XL7700
production hours: 13296
application type: Milling
Location: Poland
machine type: Universal Machining Centre

Technical Information - Emmegi Emmegi Diamant XL7700

General Data

Machine weight: 6800 kg

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 7.5 kW
Number of axis: 4

Movement

X-AXIS Movement: 7700 mm
X-AXIS Rapid traverse: 80 m/min
Y-AXIS Movement: 900 mm
Y-AXIS Rapid traverse: 64 m/min
Z-AXIS Movement: 380 mm
Z-AXIS Rapid traverse: 64 m/min
A-AXIS Rapid traverse: 10,000 °/min
AXIS 1 Movement: 0° ÷ 180

Additional Information

Additional equipment

Independent, Adjustable Work Areas on X-Axis: 2
Optional Tool Holder Cone: ISO 30 (DIN 69871)
Pull Stud for Tool Holder Cone ISO 30: Special
Number of Tool Magazine Slots for HSK F63: 9
Number of Tool Magazine Slots for ISO 30: 10
Optional Number of Clamping Systems (total): Up to 12 // Positioning of Clamping Systems Standard: Automatic
Optional Positioning of Clamping Systems: Automatic and independent
Number of Stops Standard: 2
Optional Number of Stops (total): 4
Average Absorbed Electric Power: 12 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
