- ➤ Used EMAG VSC 250 Vertical Lathe For Sale | gindumac.com

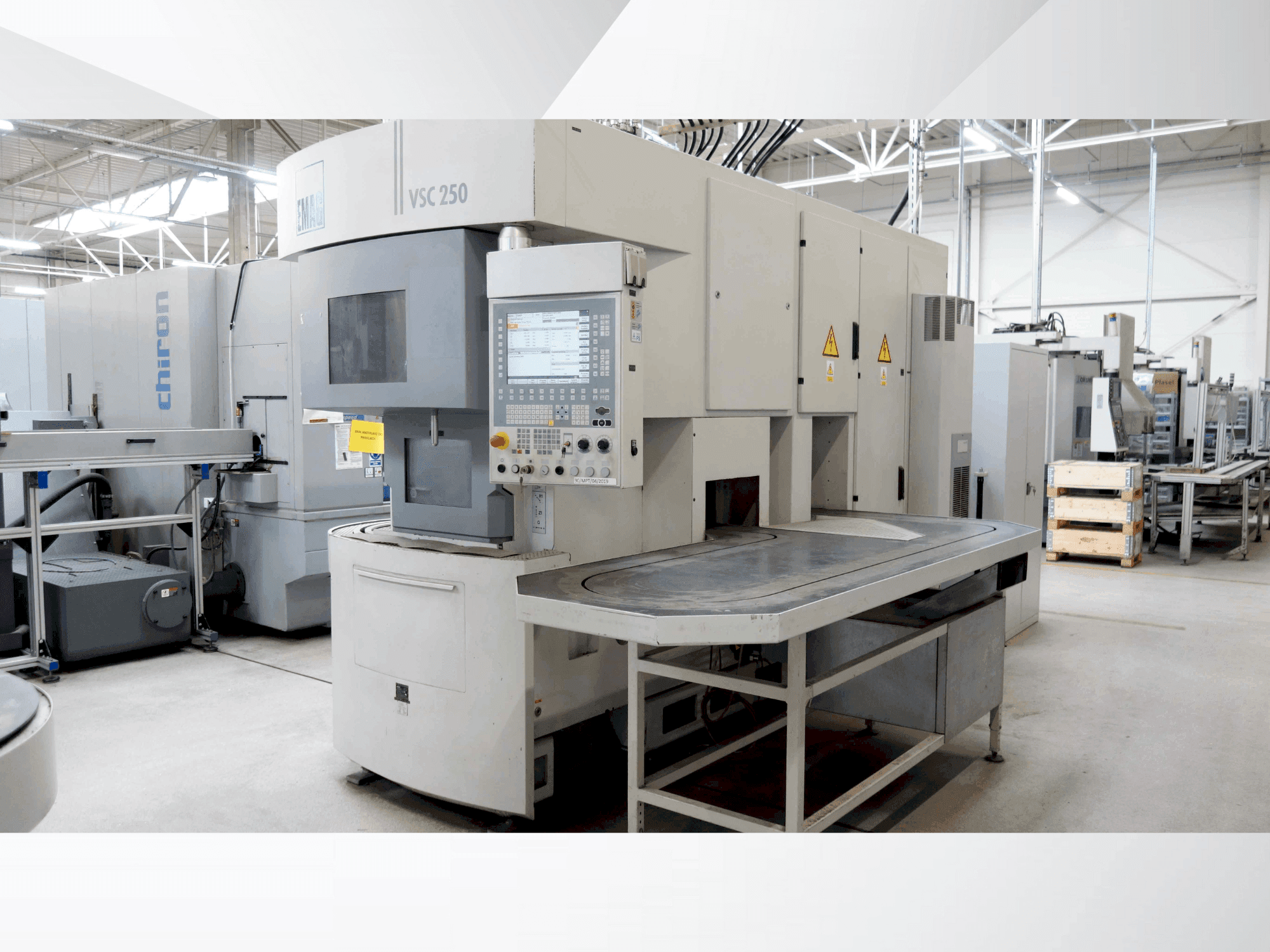

This EMAG VSC 250 vertical turning machine was manufactured in 2011. It features a Siemens SINUMERIK 840Dsl control system, a robust hydraulic 6-jaw chuck, and a flange turret with 12 tool positions. With a spindle speed up to 4500 rpm and a main spindle drive power of 28kW at 40% duty cycle, it's ideal for precise, efficient operations. For more information about this vertical turning machine, please reach out to us.
Overview
- brand: EMAG
- year: 2011
- MODEL: VSC 250
- application type: Turning
- Location: Germany
- machine type: Vertical Turning Machine
- control unit brand: SIEMENS
Technical Information - EMAG VSC 250
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840Dsl with integrated PLC S7-300
Movement
- X-axis Travel: 745 mm
- Z-axis Travel: 300 mm
Technical Specification
- Number of Tools: 12
- Spindle Power: 18 kW
- Spindle Speed: 4500 RPM
Additional Information
Additional equipment
- Hydraulic 6-jaw special chuck from EMAG with face clamping device and central lubrication
- 15-inch TFT monitor
- V24 interface
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
