EMAG VL 3

Photo Gallery

EMAG - VL 3HU-TUR-EMA-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

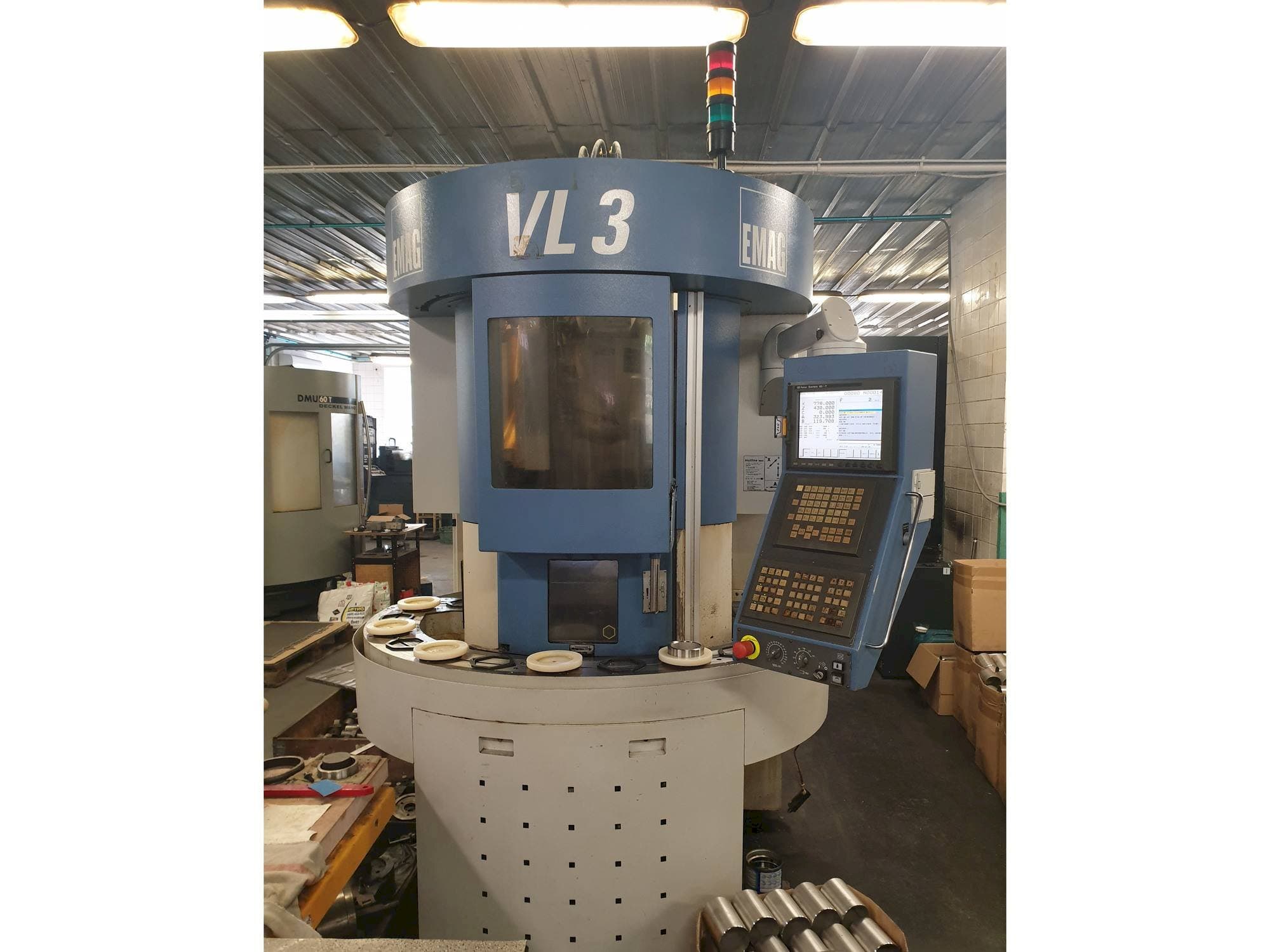

This EMAG VL 3 Lathe was manufactured in the year 2002 in Germany. It is equipped with a Fanuc Series 18i-T control unit. The machine has a spindle speed of 7500 rpm.

Overview

brand: EMAG
year: 2002
MODEL: VL 3
application type: Turning
Location: Hungary
machine type: Vertical Turning Machine
control unit brand: FANUC

Technical Information - EMAG VL 3

General Data

Measurements width: 2500 mm
Measurements depth: 1900 mm
Measurements height: 2300 mm
Machine weight: 5500 kg

Control Unit

Model: Series 18i-T
Brand: FANUC

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter 210 mm
- - Max. Chuck diameter 170 mm
- - Max. Spindle power ed 10-40/100% 25/16 kw
- - Main spindle size gr. 5 (din 55026)
- - Axes on the spindle unit x/z
- - Feed rate x/y/z 5000/-/5000 n
- - Max. Rapid traverse speed x/y/z 60/-/30 m/min
- - Main spindle travels x/y/z 400/-/200 mm
- - Lower revolver 12 tools
- - Tool holders vdi 40
Qualitative Machine Benefits:
- - Driven tool revolution 6000 1/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
