DYE FD-3600 Milling machine

Show in original language

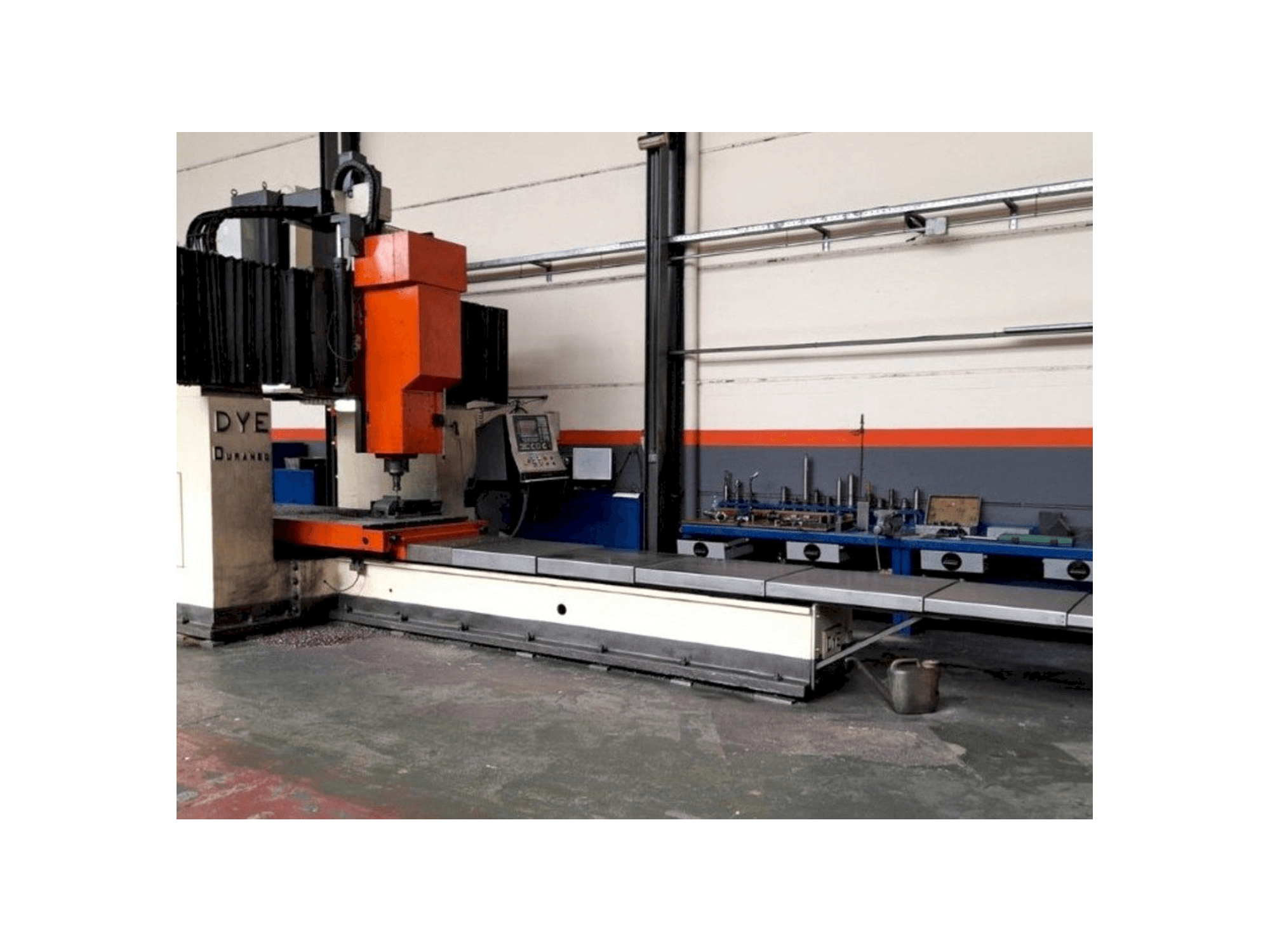

This DYE FD-3600 Milling machine was built in 1998 and has been retrofitted in 2006. It operated through a Fagor 80551 control unit. This 3 axis machine has a spindle speed up to 2500 rpm, a table dimension of 4000 x 1250 mm and a double chip conveyor. Always good maintenance.

Overview

brand: DYE
year: 1998
MODEL: FD-3600
production hours: 0
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
control unit brand: FAGOR

Technical Information - DYE FD-3600

General Data

Measurements width: 11400 mm
Measurements depth: 4800 mm
Measurements height: 5800 mm

Control Unit

Model: 80551
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 2500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 3600 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 1200 mm

Workpiece

Workpiece weight: 6000 KG

Table

Outer length: 4000 mm
Outer width: 1250 mm

Tools

Type of tool holder: ISO 50

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between columns: 1800 mm
- - Max. Milling width: 2000 mm
- - Double chip conveyor
- - Range of tools and accesories
Qualitative Machine Benefits:
- - Control unit replaced in 2017
- - Retrofitting in 2006
- - Always good maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
