Doosan Puma 3100XLY Lathe

Show in original language

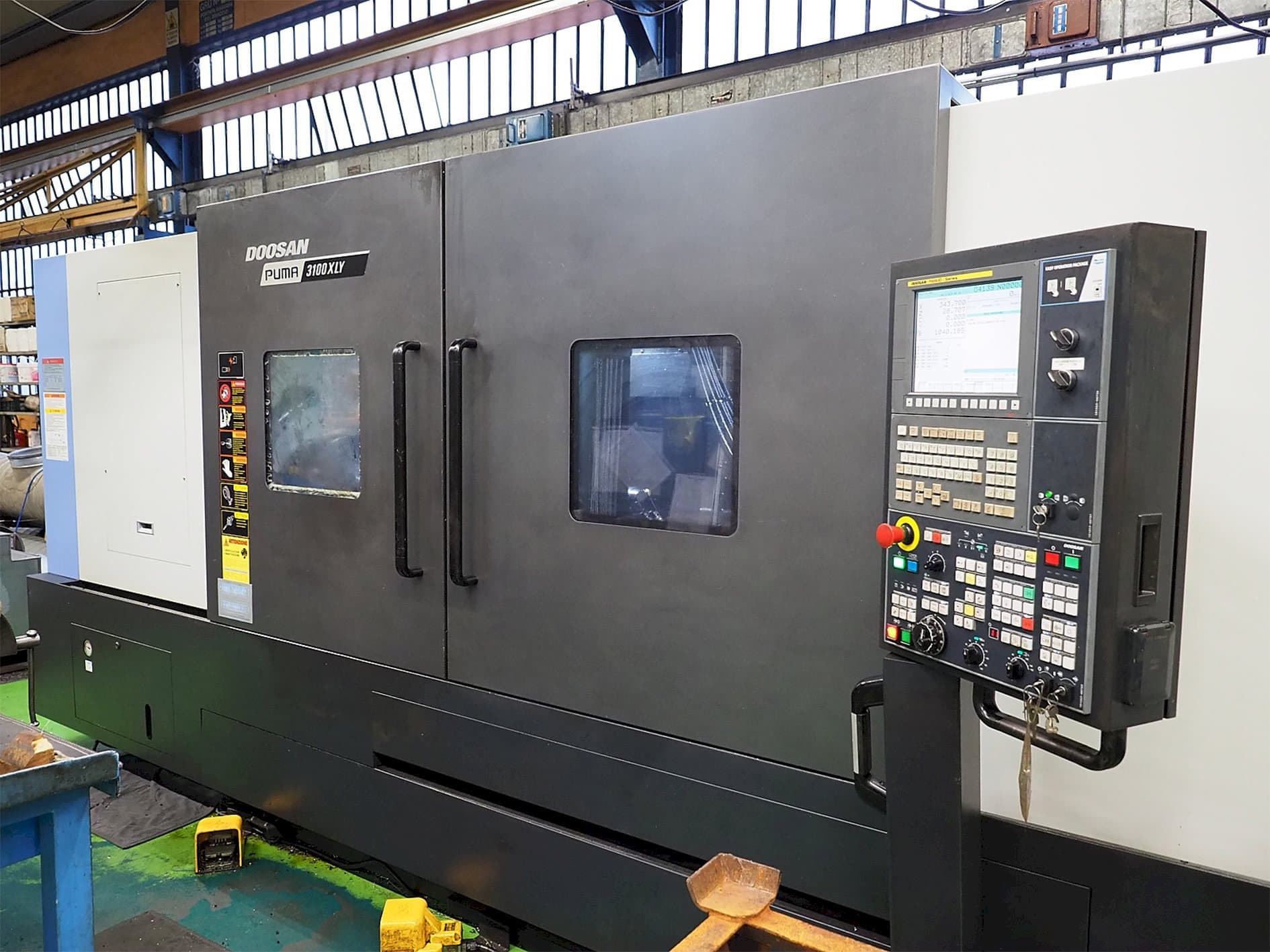

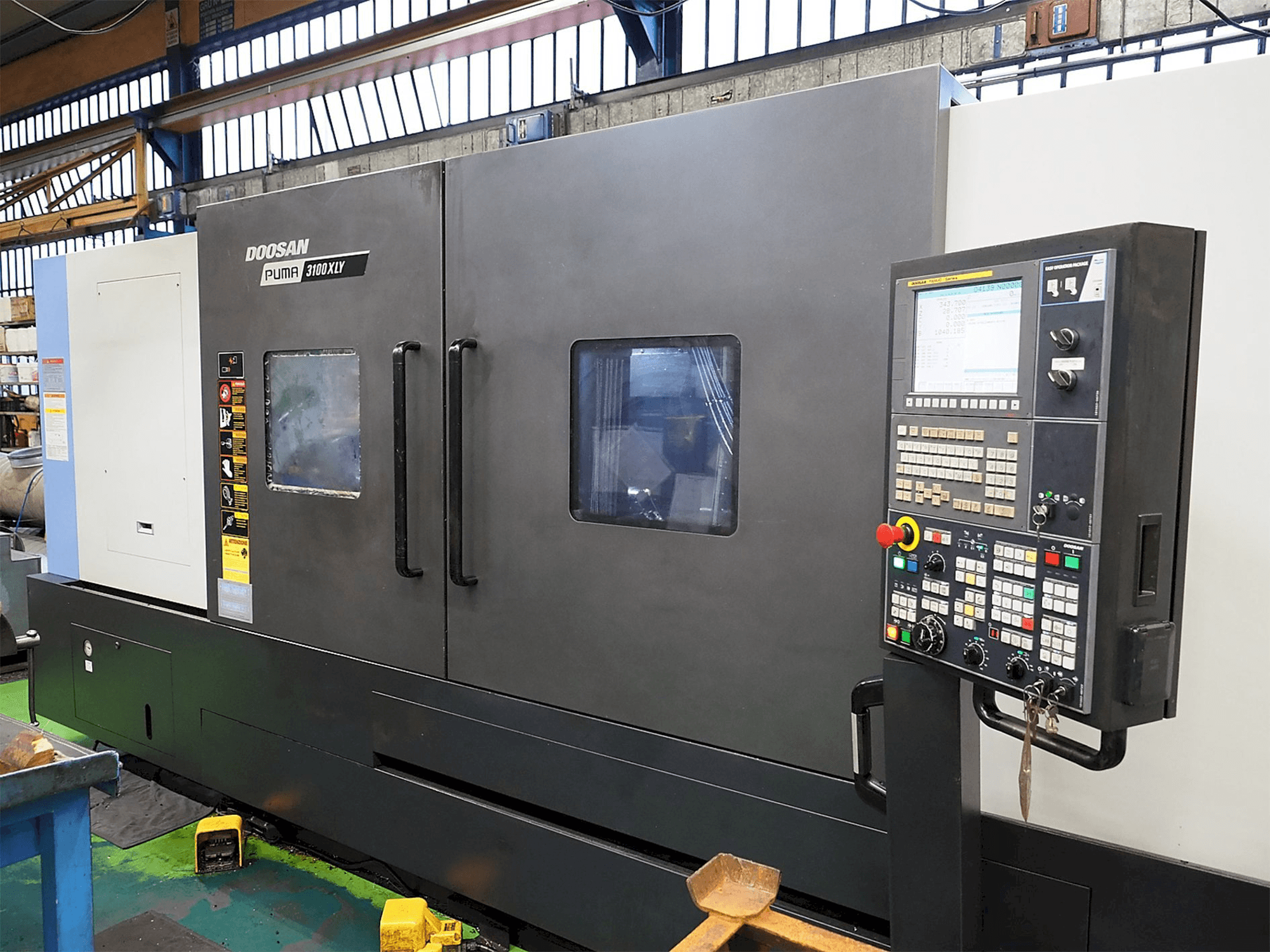

This Doosan 3100XLY Lathe was built in 2015 in Korea. It has been working for 3954 hours of which 3061 are cutting hours. It is equipped with a Fanuc i-Series control unit. This 3 axis machine operates with a spindle speed up to 3000 rpm. The lunette is a full-effect axis, also programmable to track.

Overview

brand: DOOSAN
year: 2015
MODEL: Puma 3100XLY
production hours: 3954
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Puma 3100XLY

General Data

Measurements width: 2280 mm
Measurements depth: 5615 mm
Measurements height: 2315 mm
Machine weight: 10500 KG

Control Unit

Model: i-Series
Brand: FANUC

Main drive

Spindle speed range: 3000 1/MIN
Spindle motor power: 25 / 30 kW (cont./30min.)
Number of axis: 3

Turret

Number of turrets: 12 (motorizable)

Media

Main electronic connection: 400V / 60Hz
Power consumption: 55.81 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Capacity rotating diameter over bed: 850 mm
- - Max. Turning diameter: 420 mm
- - Max. Turning length: 2125 mm
- - Max. Turning diameter from bar: 102 mm
- - Y-axis stroke: 130 mm (± 65)
- - Spindle attachment asa a2-11
- - Turret motorized power kw / 30min. 5. 5
- - The lunete is a full-effect axis, also programmable to track

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
