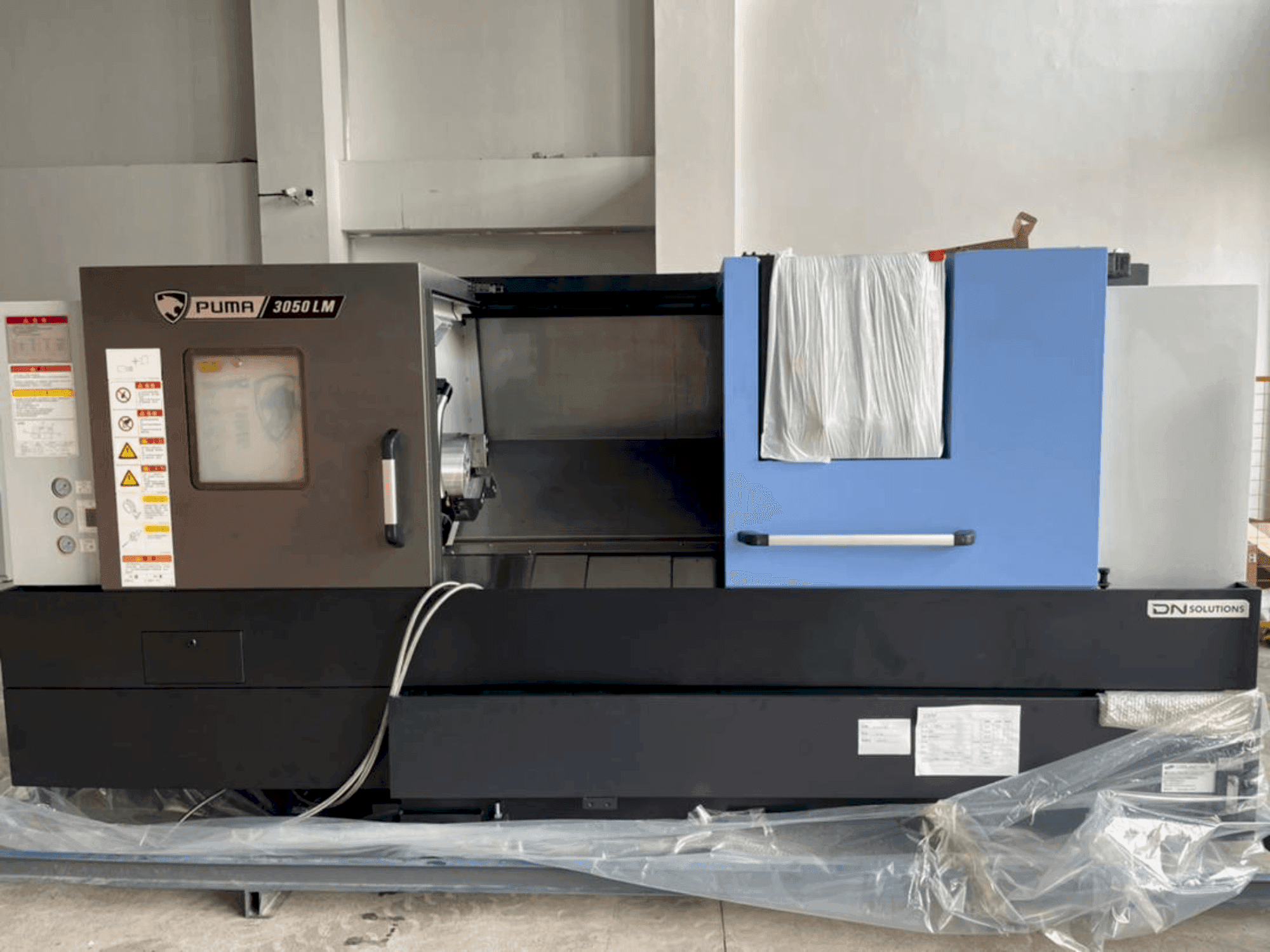

This 3-axis DOOSAN PUMA 3050 LM lathe was manufactured in 2024. It features a robust 12-position BMT55 Servo Power Turret, a powerful main spindle motor at 18.5/15 kW, a spindle speed of 3.000 rpm, and a milling spindle speed of 5000 rpm. The machine includes a 12 hydraulic chuck, chip conveyor, and a FANUC - 0iPLUS control system. Ideal for precision, the DOOSAN PUMA 3050 LM machine we have for sale represents a significant opportunity. Contact us for further details regarding this turning machine.
Overview
- brand: DOOSAN
- year: 2024
- MODEL: PUMA 3050 LM
- production hours: 0
- application type: Turning
- Location: Slovenia
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DOOSAN PUMA 3050 LM
General Data
- Measurements width: 1630 MM
- Measurements depth: 3735 MM
- Measurements height: 1720 MM
- Machine weight: 5900 KG
Control Unit
- Model: 0iPLUS
- Brand: FANUC
Main drive
- Spindle speed range: 5000 1/MIN
- Spindle motor power: 18.5/15 kW
- Number of axis: 3
Tail Stock
- Pinol diameter: 100 mm
- Pinol tool taper: MT#5
Tools
- Slots in storage: 12
Media
- Chip conveyor: Yes
Additional Equipment
- - 12 Hydraulic Chuck
- - 12-position BMT55 Servo Power Turret
- - BMT 55 Power Tool Holder (Axial and Radial)
- - Box Guideway
- - Hydraulic Power Unit
- - 30 Integral Inclined Bed
- - Tool Kit
- - Tool Holders & Boring Sleeve
- - Lubrication Equipment
- - Signal Tower (Yellow, Red, Green)
Additional Information
- Technical Machine Benefits:
- - Milling spindle motor power: 5. 5 kw
- - Tool size (w x h): 25 x 25 mm
- - Boring bar size: 40 mm
- - Efficient tool management with 12-position bmt55 servo power turret.
- - Advanced control system ensures precision and reliability.
- Qualitative Machine Benefits:
- - Stability and precision with box guideway and integral inclined bed.
- - Enhanced safety features with front door interlock and signal tower.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
