DOOSAN - HP 6300GB-MIL-DOO-2012-00002
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Doosan HP 6300 Horizontal Machining Center
Show in original language

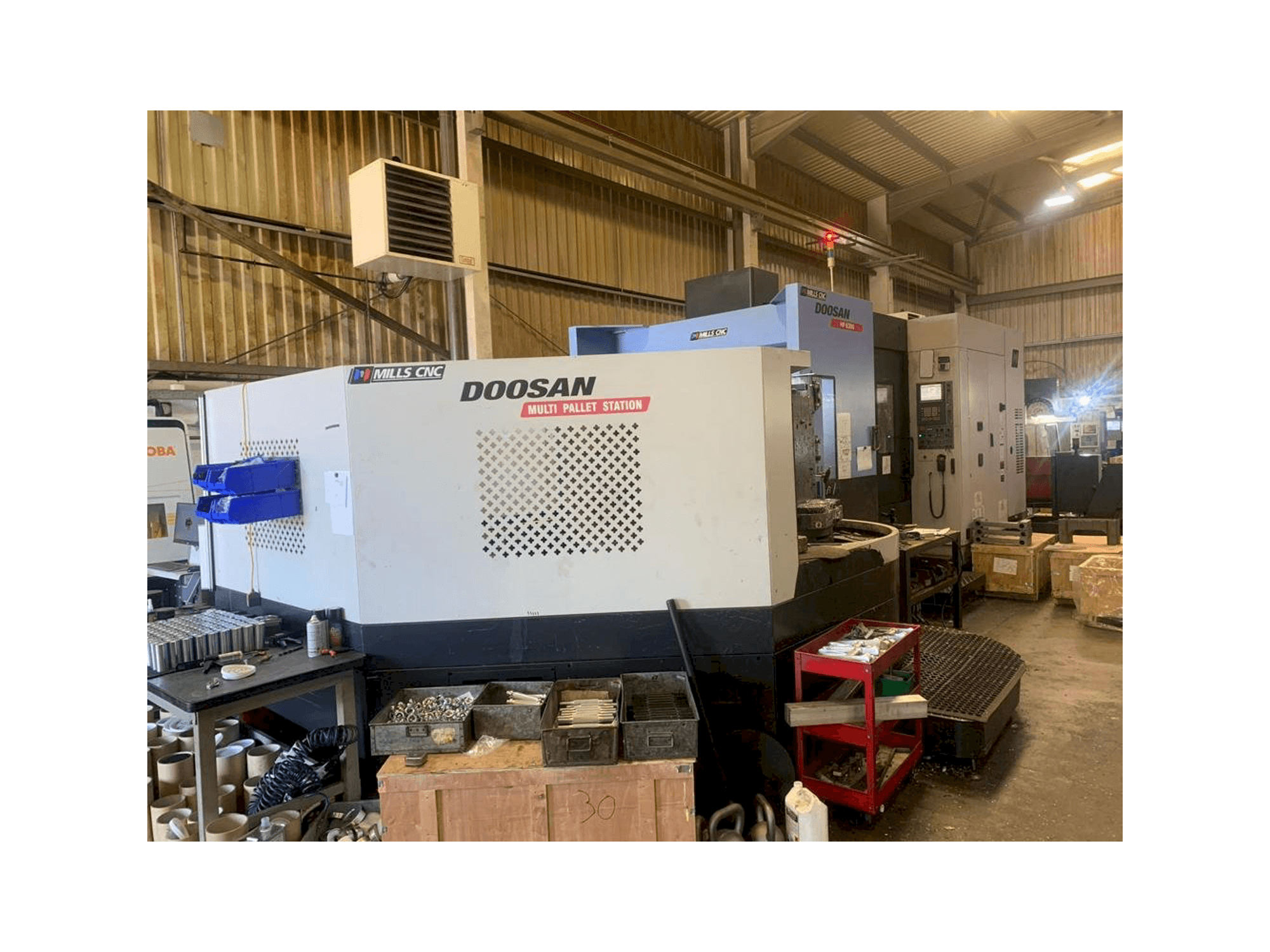

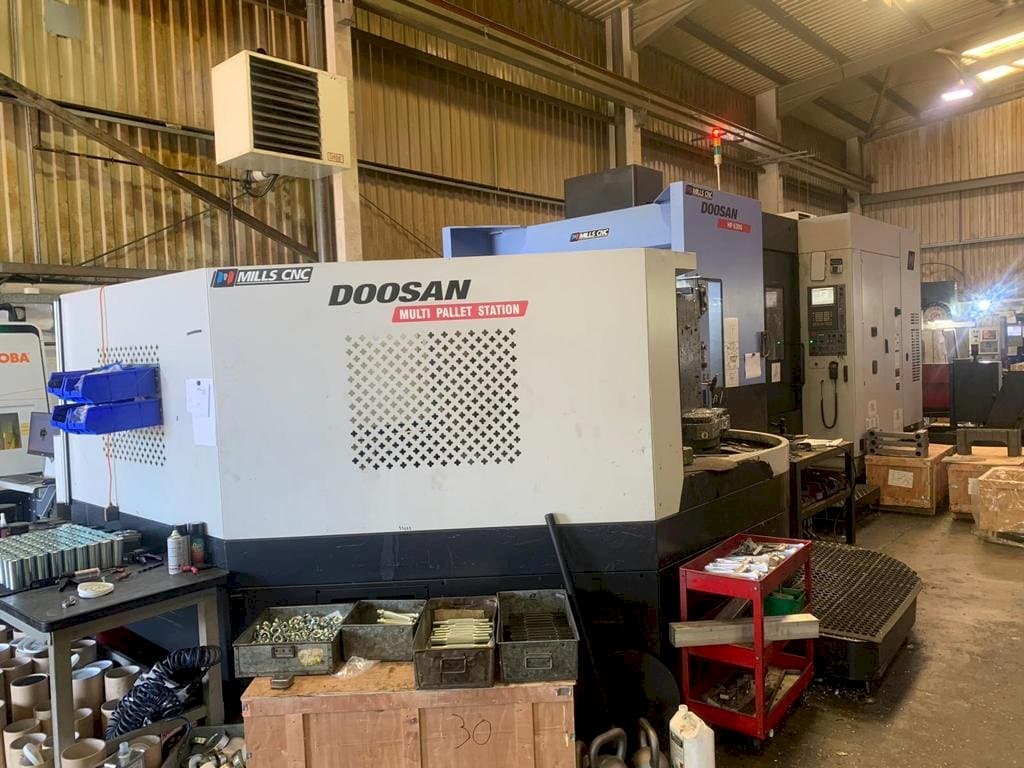

This Doosan HP 6300 Horizontal Machining Center was made in the year 2012 in South Korea. This 4 axis machine operates through a FANUC 31i control unit. It has a spindle speed up to 12000 rpm. It includes 196 slots in storage, 7 pallets and manual book.
Overview
- brand: DOOSAN
- year: 2012
- MODEL: HP 6300
- application type: Milling
- Location: United Kingdom
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN HP 6300
Control Unit
- Control Brand: FANUC
- Control Model: 31i
Dimensions
- Machine Depth: 4820 mm
- Machine Height: 3330 mm
- Table Length: 630 mm
- Table Width: 630 mm
Movement
- Number of Axes: 4
- X-axis Travel: 1000 mm
- Y-axis Travel: 850 mm
- Z-axis Travel: 850 mm
Technical Specification
- Max. Tool Weight: 20 kg
- Number of Tools: 196
- Spindle Power: 30 kW
- Spindle Speed: 12000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Simultaneous axis operation
- Includes machine manual
- Very good condition
Technical Machine Benefits
- Number of pallets: 7
- Cutting feedrate: 24 m/min
- Rapid feedrates: 48 m/min
- Distance between table centre to spindle nose: 150 - 1000 mm
- Distance between table top to spindle centre: 75 - 925 mm
- B axis movement: 0. 001 degree
- Through spindle coolant
- Swarf conveyor
- Coolant
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
