DOOSAN - HP 5100 IISK-MIL-DOO-2016-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Doosan HP 5100 II

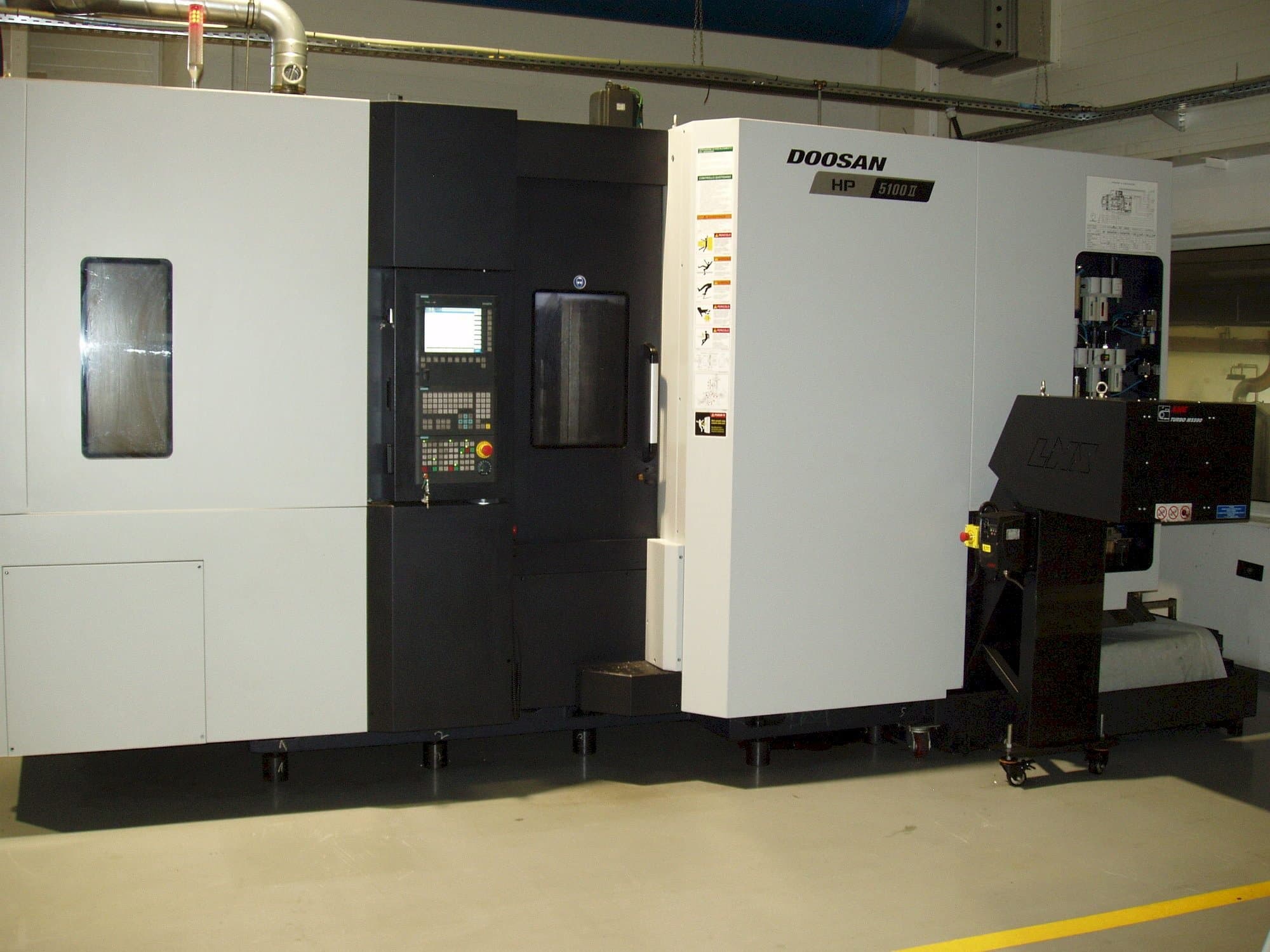

This Doosan HP 5100 II Horizontal Machining Center from 2016 was built in Korea. It has a record of only 3070 cutting hours. This 4 axis machine is operated through a SIEMENS Sinumerik 840 control unit. It stands out for its spindle speed up to 14000 rpm. This showroom machine was purchased as new in 2019 and is in very good condition.
Overview
- brand: DOOSAN
- year: 2016
- MODEL: HP 5100 II
- production hours: 3070
- application type: Milling
- Location: Slovakia
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - DOOSAN HP 5100 II
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840
Dimensions
- Machine Weight: 15000 kg
- Table Length: 500 mm
- Table Width: 500 mm
Movement
- Number of Axes: 4
- X-axis Travel: 850 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 750 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Number of Tools: 40
- Spindle Power: 30 kW
- Spindle Speed: 14000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
- Showroom machine purchased as new in 2019
Technical Machine Benefits
- 2 pallets
- Paper band filtration
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
