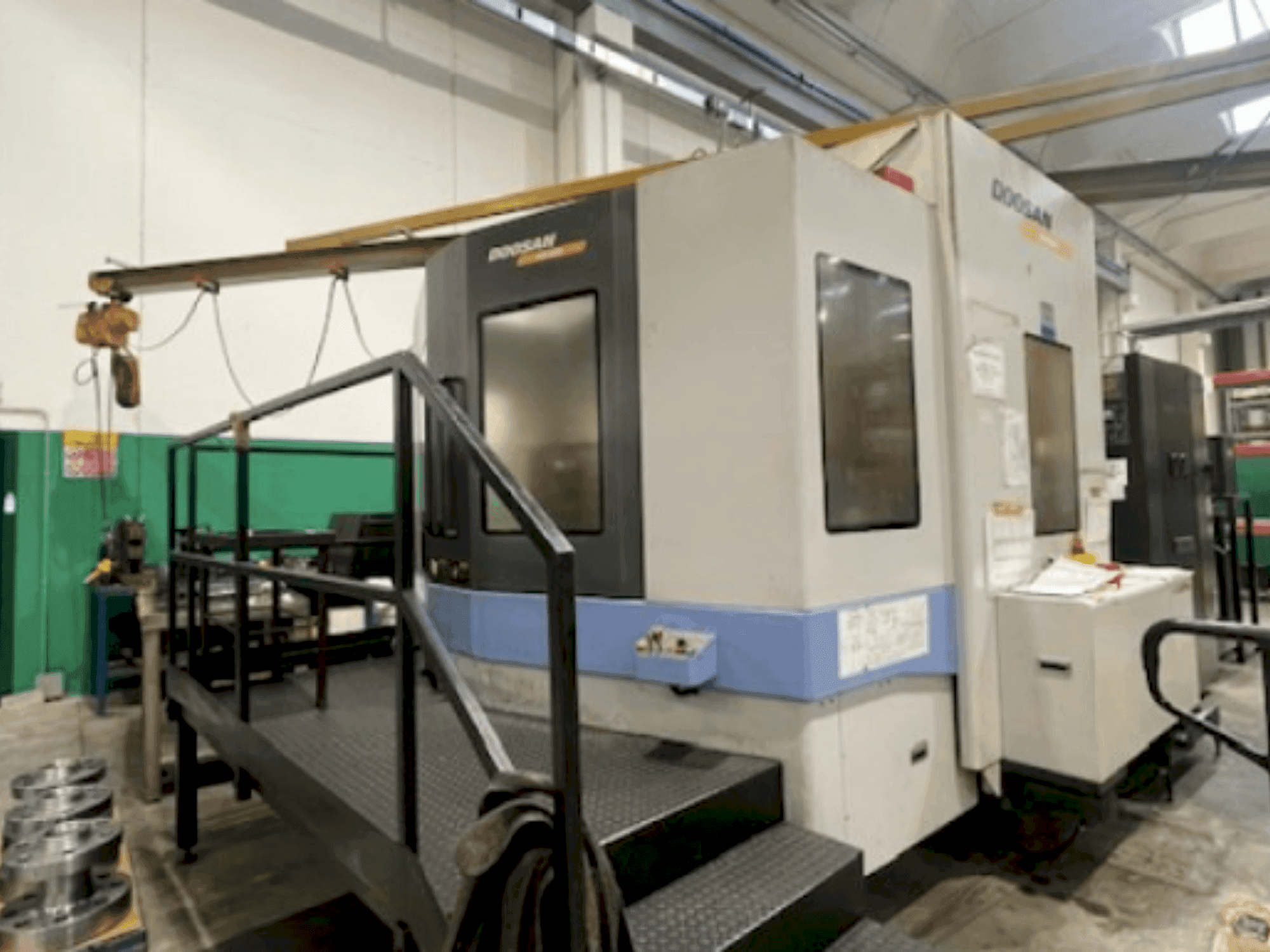

Front view of DOOSAN HM 800 (2008) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN HM 800

Photo Gallery

DOOSAN - HM 800IT-MIL-DOO-2008-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN HM 800 - 2008 - Horizontal machine centre

Show in original language

This 4-Axis DOOSAN HM 800, a 2008 horizontal machining centre, offers high performance with the CNC FANUC 18i–MB control system. It has extensive strokes: 1250 mm on the X-axis and 1000 mm on the Y and Z axes, with rapid movements of 24 m/min on all axes. The dual pallet system, each 800 x 800 mm, has a 1600 kg load capacity. Its spindle reaches 6000 rpm with a 22/26 kW motor output. A 90-position tool chain and high-pressure coolant system ensure optimal cutting. Contact us for more details.

Overview

brand: DOOSAN
year: 2008
MODEL: HM 800
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN HM 800

General Data

Machine weight: 20000 kg

Control Unit

Model: 18i–MB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 rpm 1/MIN
Spindle motor power: 22/26 Kw
Tool taper: ISO 50 Din 69871
Number of axis: 4

Movement

X-AXIS Movement: 1250 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 1000 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 1000 mm
Z-AXIS Rapid traverse: 24 m/min

Tools

Number of stations: 90

Media

Chip conveyor: Yes

Additional Equipment

- 2 Pallets (dimensions 800 x 800 mm, indexing 1°, weight allowed on the pallet: 1600 kg)
- Remote electronic handwheel

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High-speed spindle (6000 rpm) with significant motor power (22/26 kw) supports heavy-duty machining.
- - Rapid movement of 24 m/min on all axes ensures quick positioning and reduced cycle times.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
