DOOSAN DNM 500

Photo Gallery

DOOSAN - DNM 500IT-MIL-DOO-2012-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

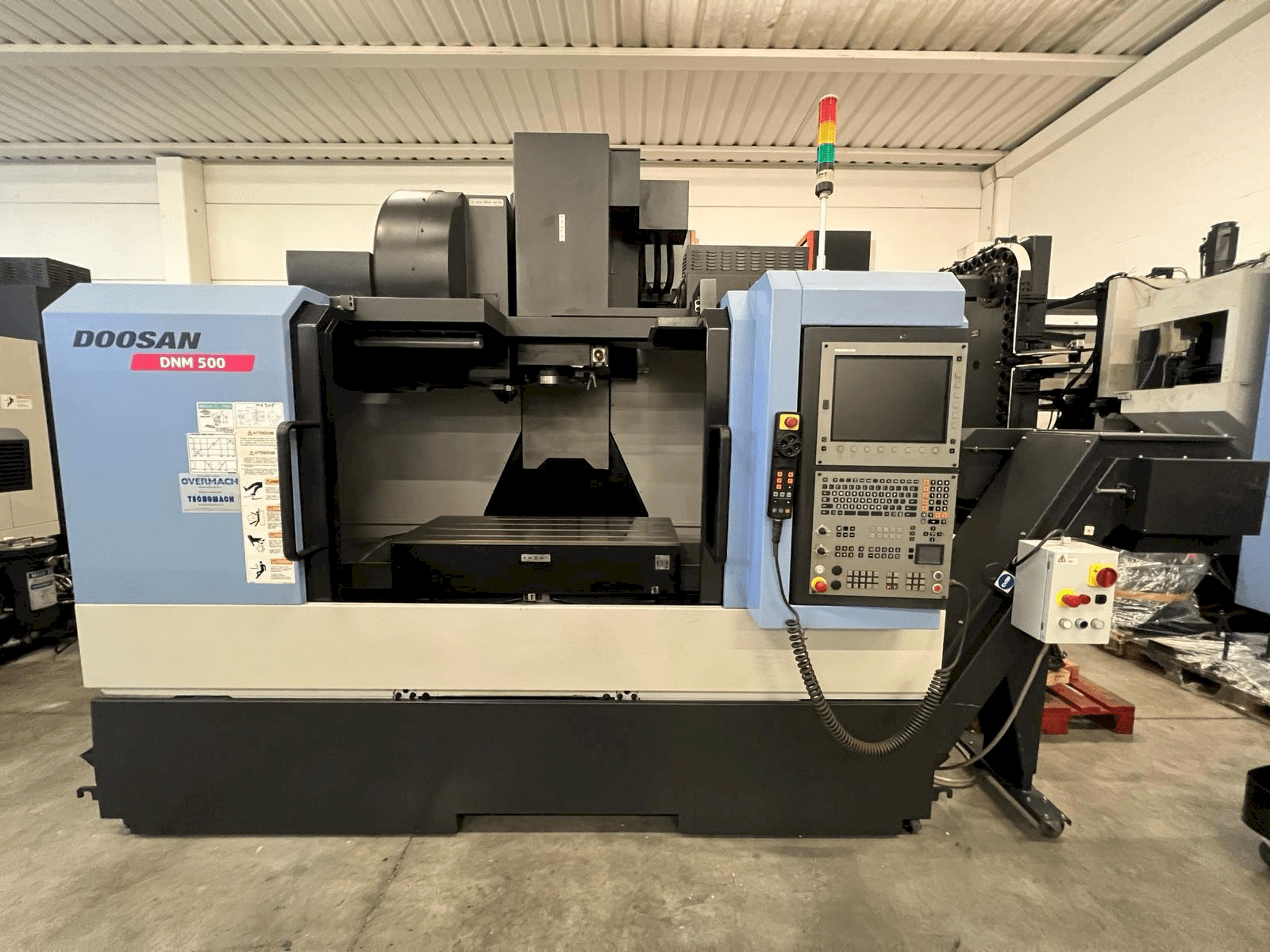

DOOSAN DNM 500 Vertical Machining Centre

Show in original language

This DOOSAN DNM 500 Vertical Machining Centre was manufactured in 2012 in South Korea. It is equipped with a HEIDENHAIN iTNC 530 control and internal cooling - IKZ - 18 bar. This 4 axis machining centre has a ISO 40 spindle with 12,000 rpm and 18kW motor power. It comes with presetting, chip conveyor and a 30 tool magazine. The table size is 1200 x 540 mm.

Overview

brand: DOOSAN
year: 2012
MODEL: DNM 500
production hours: 13558
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DOOSAN DNM 500

General Data

Machine weight: 6500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 18 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 1020 MM
Y-AXIS Movement: 540 MM
Z-AXIS Movement: 510 MM

Table

Outer length: 1200 mm
Outer width: 540 mm

Tools

Slots in storage: 30

Media

Chip conveyor: Yes
Internal cooling: Yes
Cooling pressure: 18 bar

Additional Equipment

- Internal Cooling - IKZ 18 bar
- Chip Conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of tools places in magazine: 30
- - Presetting: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
