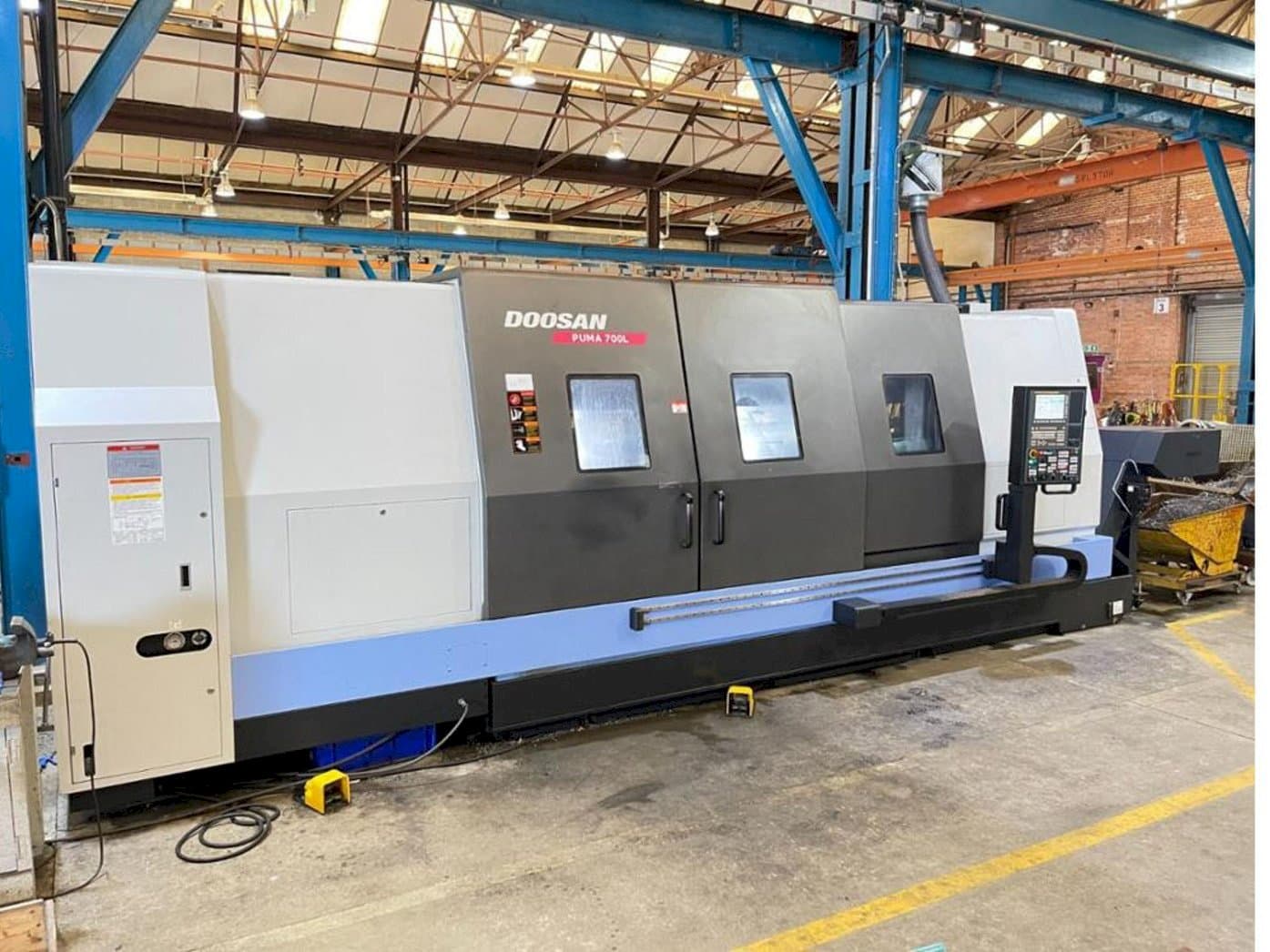

This Doosan 700L Lathe was manufactured in the year 2014 in South Korea. It is equipped with a Fanuc Series 32i-Model B control unit and has 2 axis. The machine has a spindle speed of 1500 rpm.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: 700L
- application type: Turning
- Location: United Kingdom
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN 700L
Control Unit
- Control Brand: FANUC
- Control Model: Series 32i-Model B
Dimensions
- Machine Depth: 2770 mm
- Machine Height: 2590 mm
- Machine Weight: 21800 kg
Movement
- Number of Axes: 2
- X-axis Travel: 470 mm
- Z-axis Travel: 470 mm
Technical Specification
- Number of Tools: 12
- Spindle Speed: 1500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
Technical Machine Benefits
- Max. Swing 1030 mm
- Swing over the cross-slide: 800mm
- Maximum cutting diameter : 900mm
- Maximum cutting length: 3200mm
- Bar capacity: 164mm
- Chuck size: 609mm
- Rapid feedrates: xz: 12 x 10m/minute
- Spindle motor power: 45/37kw
- Tailstock body travel: 3135mm, quill diameter 160mm, quill stroke 150mm, taper mt #6
- Spindle nose: a1-15
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
