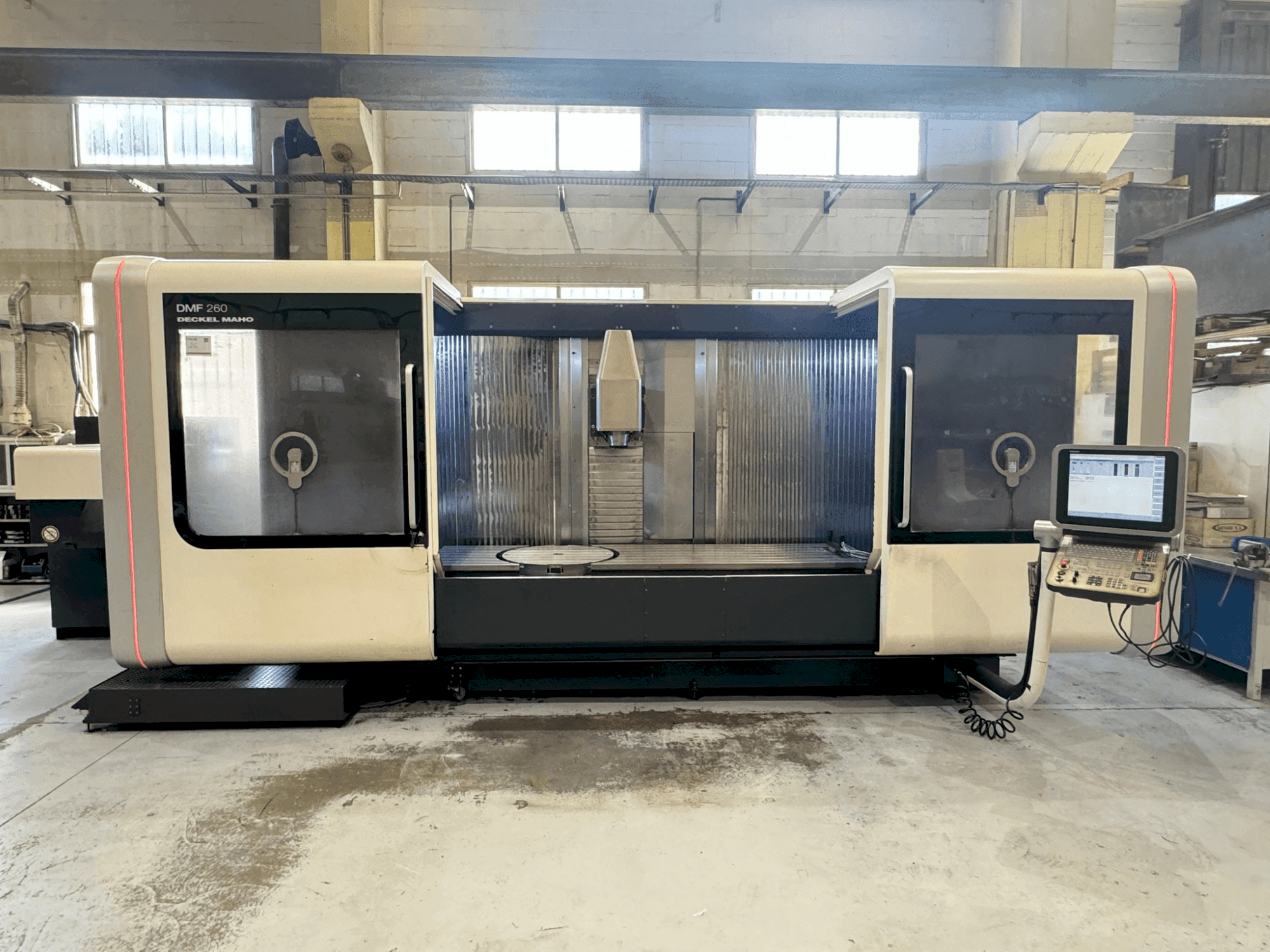

This 5-axis DMG MORI DMF 260/7 vertical machining centre was manufactured in 2012. It features a HEIDENHAIN iTNC 530 control, a fixed table surface of 2,900 x 700 mm, and a rotary table Ø 730 mm with 360° rotation. The machine supports a maximum weight of 2,150 kg on the fixed table and 560 kg on the rotary table. It offers a longitudinal travel of 2,600 mm, transversal travel of 700 mm, and vertical travel of 700 mm. For more information about this vertical machining centre, please reach out to us.
Overview
- brand: DMG MORI
- year: 2012
- MODEL: DMF 260/7
- production hours: 10175
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMF 260/7
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Weight: 16070 kg
Movement
- B-axis Max: 110°
- C-axis: 360°
- Number of Axes: 5
- X-axis Travel: 2600 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 700 mm
Technical Specification
- Max. Tool Weight: 5 kg
- Spindle Power: 23.5 kW
- Spindle Speed: 800 RPM
Additional Information
Additional equipment
- Rotary table Ø 730 mm (Axis C) // Rotary encoder head
- Detachable 2-zone working separator
- Direct measurement system // Tool measurement LAER BLUM
- Spindle cooling / Col. 1
- Longitudinal chip conveyor
- 2 front windows
- Leveling pilots
- Portable handwheel
- DMG 3D quickSET (for checking and dynamic correction of the machine tool accuracy in 5 axes)
- DMG Mori PP60 PowerProbe 50 optical probe (Renishaw OMP60)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
