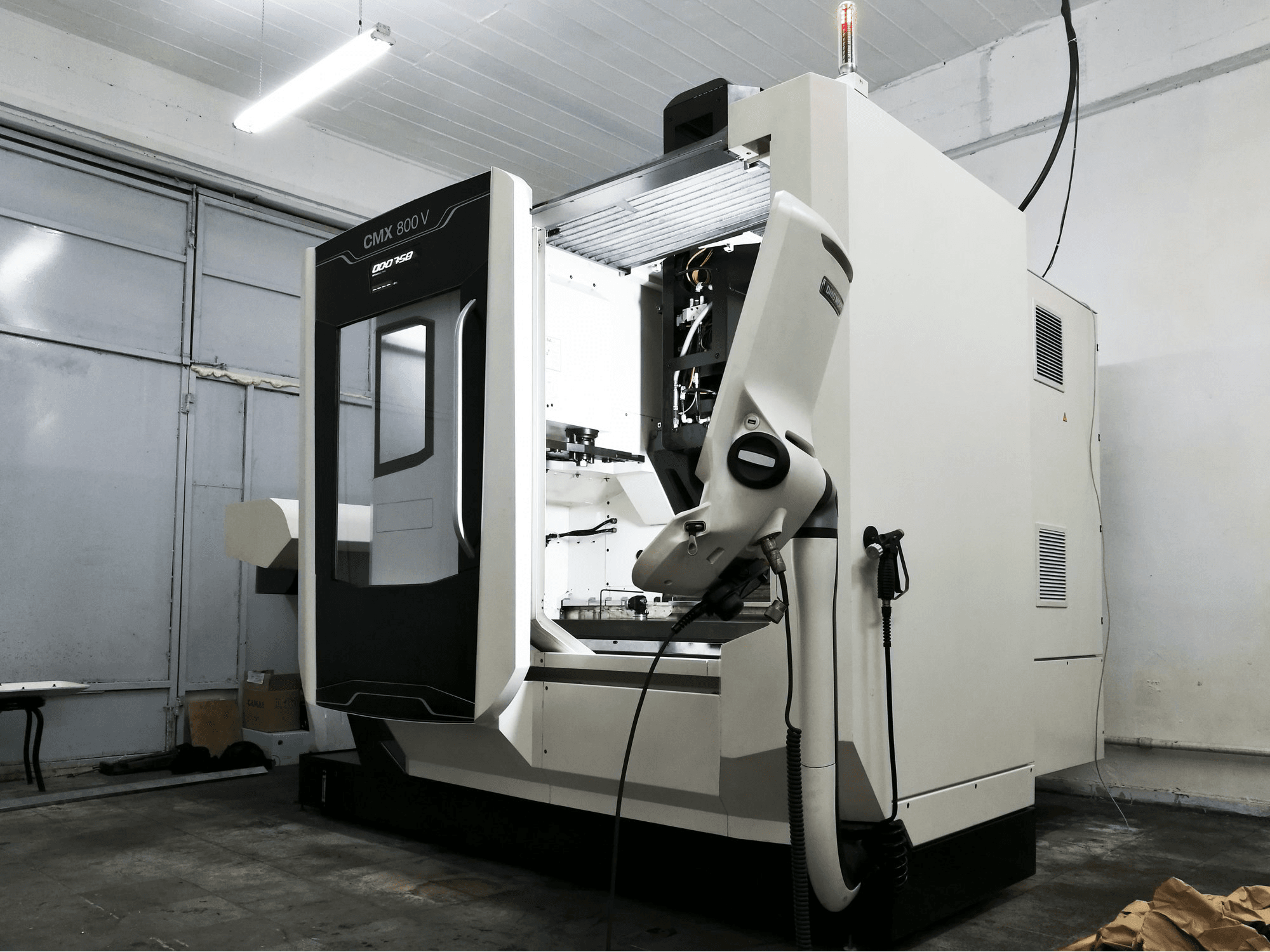

Right view of DMG MORI CMX 800 V machine
Right view of DMG MORI CMX 800 V machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DMG MORI - CMX 800 VTR-MIL-DMG-2016-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG MORI CMX 800 V Machining Center from 2016 is a nearly new machine, with a production record of only 230 hours. Operated through a SIEMENS SINUMERIK 840D sl Control unit (with RJ-45 interface), the equipment stands out for its perfect condition. As additional equipment, a Renishaw Measurement system is included.

Overview

  • brand: DMG MORI
  • year: 2016
  • MODEL: CMX 800 V
  • production hours: 230
  • application type: Milling
  • Location: Turkey
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - DMG MORI CMX 800 V

General Data

  • Measurements width: 3395 mm
  • Measurements depth: 2747 mm
  • Measurements height: 2937 mm
  • Machine weight: 5450 kg

Control Unit

  • Model: SINUMERIK 840D sl
  • Interface: RJ-45, USB
  • Brand: SIEMENS
  • Remote control: Yes

Main drive

  • Number of spindles: 1
  • Spindle speed range: 0-12000 1/min
  • Spindle motor power: 13 kW
  • Tool taper: SK 40

Movement

  • X-AXIS Movement: 800 mm
  • X-AXIS Working Feed: 1-30000 mm/min
  • X-AXIS Feed Force: 5 kN
  • X-AXIS Rapid traverse: 36 m/min
  • Y-AXIS Movement: 560 mm
  • Y-AXIS Working Feed: 1-30000 mm/min
  • Y-AXIS Feed Force: 5 kN
  • Y-AXIS Rapid traverse: 36 m/min
  • Z-AXIS Movement: 510 mm
  • Z-AXIS Working Feed: 1-30000 mm/min
  • Z-AXIS Feed Force: 5 kN
  • Z-AXIS Rapid traverse: 30 m/min

Workpiece

  • Workpiece weight: 800 kg

Table

  • Outer length: 1100 mm
  • Outer width: 560 mm
  • TSlots size: 18 mm
  • Number of tslots: 5
  • Distance between: 100 mm

Tools

  • Slots in storage: 30
  • Max weight: 8 kg
  • Max tool diameter: 80/125 mm
  • Max tool length: 300 mm

Media

  • Main electronic connection: 400 V / 50Hz
  • Power consumption: 32 kVA
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional Equipment

    • - Renishaw Measurement system

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
