DMG MORI - CMX 50UDE-MIL-DMG-2019-00003

Name: DMG MORI CMX 50U
Brand: DMG MORI
SKU: DE-MIL-DMG-2019-00003
Price: 119000 EUR
Availability: InStock

119,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI CMX 50U For Sale | gindumac.com

Show in original language

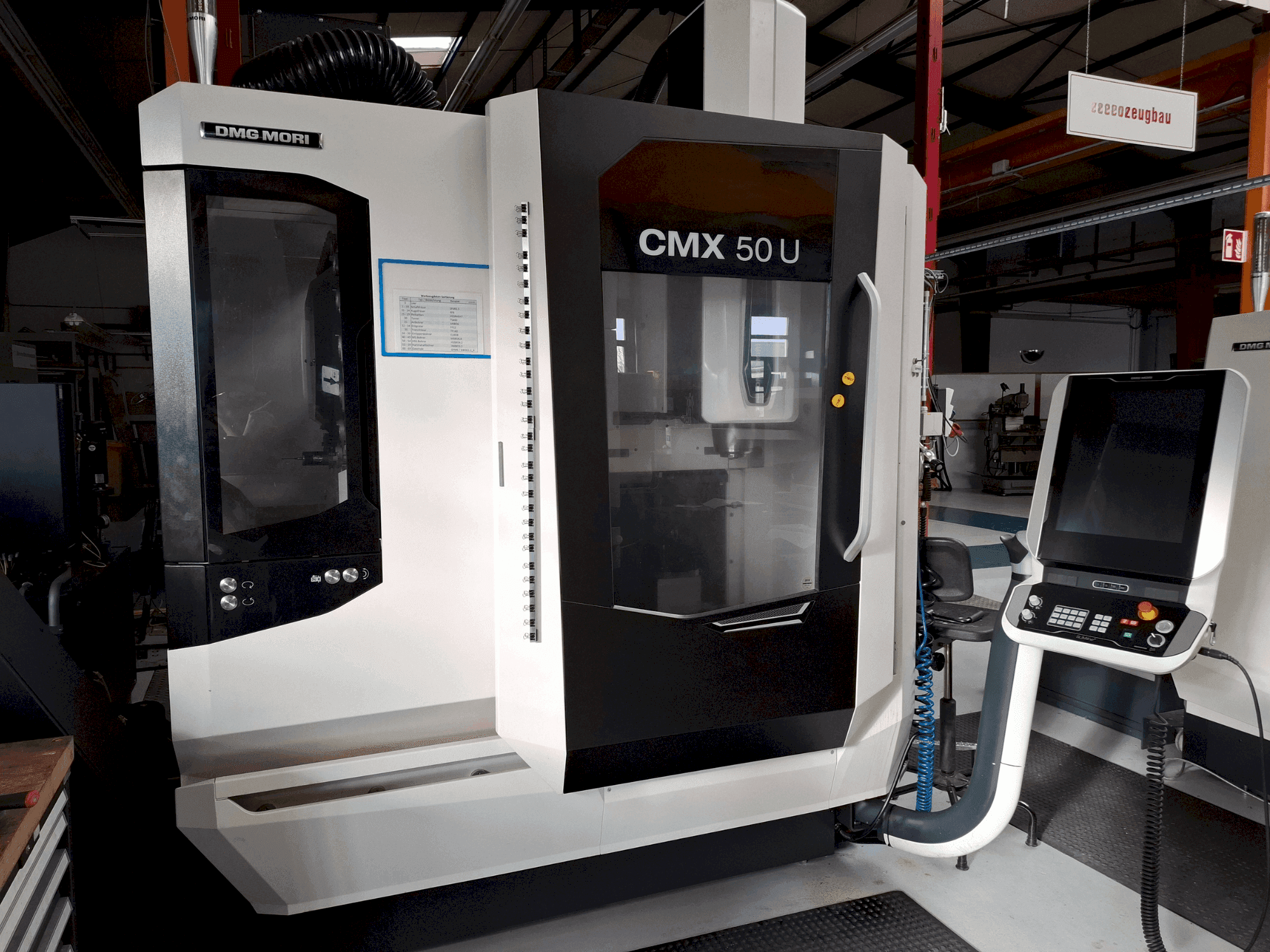

This 5-axis DMG MORI CMX 50U vertical machining center was manufactured in 2019. If you are looking to get high-quality milling capabilities, consider the DMG MORI CMX 50U machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2019
MODEL: CMX 50U
production hours: 0
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN TNC 620 S

Technical Information - DMG MORI CMX 50U

General Data

Measurements width: 3035 mm
Measurements depth: 2910 mm
Measurements height: 2710 mm
Machine weight: 4700 kg

Control Unit

Brand: HEIDENHAIN TNC 620 S

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 13 kW
Number of axis: 5

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 400 mm
B-AXIS Movement: 5° / +110° MM
C-AXIS Movement: ±360° MM

Tools

Type of tool holder: SK40 / BT40

Clamping unit

Clamping force: 10 kN

Additional Equipment

- Coolant Spray Gun
- Infrared Measurement Probe
- Paper Band Filter with Tank Capacity 600L
- Chip Conveyor (Scraper Band) with Tank Capacity 250L (Left)
- Internal Coolant Supply 40 Bar
- Bed and ATC (Automatic Tool Changer) Flushing via M-function
- Oil and Emulsion Mist Separator
- Cabin Roof
- Blow Air through Spindle Center (can be activated)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazine for 30 tools with double gripper
- - Speed range: continuously programmable (20–12000 rpm)
- - Rated power (100% duty cycle): 9 kw
- - Maximum spindle torque (40% duty cycle): 83 nm
- - Rated torque (100% duty cycle): 57 nm
- - Feed rate up to 30000 mm/min (continuously programmable)
- - Rapid traverse: 30 m/min
- - Footprint (l × w): 5500 × 6020 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
