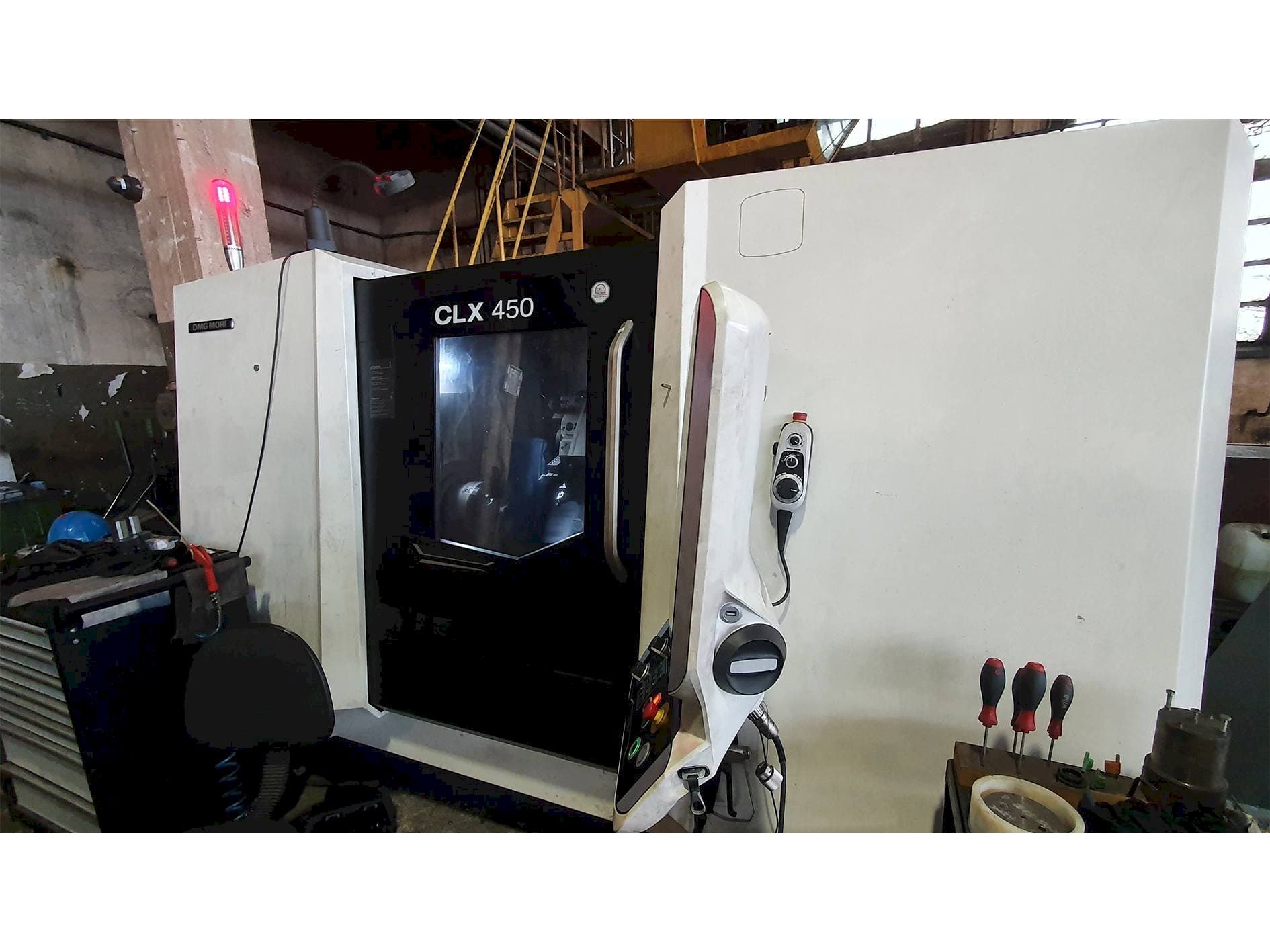

DMG MORI CLX450 Lathe machine

Show in original language

This DMG MORI CLX450 Lathe machine was manufactured in Poland in the year 2019 This machine counts with only 5046 working hours of which 2037 are spindle hours. It is equipped with a DMG MORI SLIMline and SIEMENS control unit. This machine can perform with a spindle speed up to 4000 rpm.

Overview

brand: DMG MORI
year: 2019
MODEL: CLX450
production hours: 5046
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI CLX450

General Data

Measurements width: 2953 mm
Measurements depth: 2988 mm
Measurements height: 2122 mm
Machine weight: 5400 kg

Control Unit

Brand: SIEMENS

Main drive

Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 267.5 mm
X-AXIS Rapid traverse: 30/30 m/min
Z-AXIS Movement: 600 mm
Z-AXIS Rapid traverse: 30/30 m/min

Turret

Number of turrets: 12 pcs

Media

Main electronic connection: 400V / 50Hz
Power consumption: 39 kVA
Chip conveyor: Yes

Additional Equipment

- Turret SAUTER V3 (DELTA)
- Spray gun
- Measuring device
- 4xsignal lamp
- High-pressure pump
- Linear scale X
- Turret’s all tools driven

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 650 mm
- - Max. Turning diameter: 400 mm
- - Spindle nose: a2-8
- - Bar capacity dia. Max: 80 mm
- - Bar lenght max: 200 mm
- - Bar weight max: 4 kg
- - Tailstock travel: 500 mm
Qualitative Machine Benefits:
- - Full documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
