DMG MORI - CLX 350GB-TUR-DMG-2020-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DMG MORI CLX 350 Lathe machine

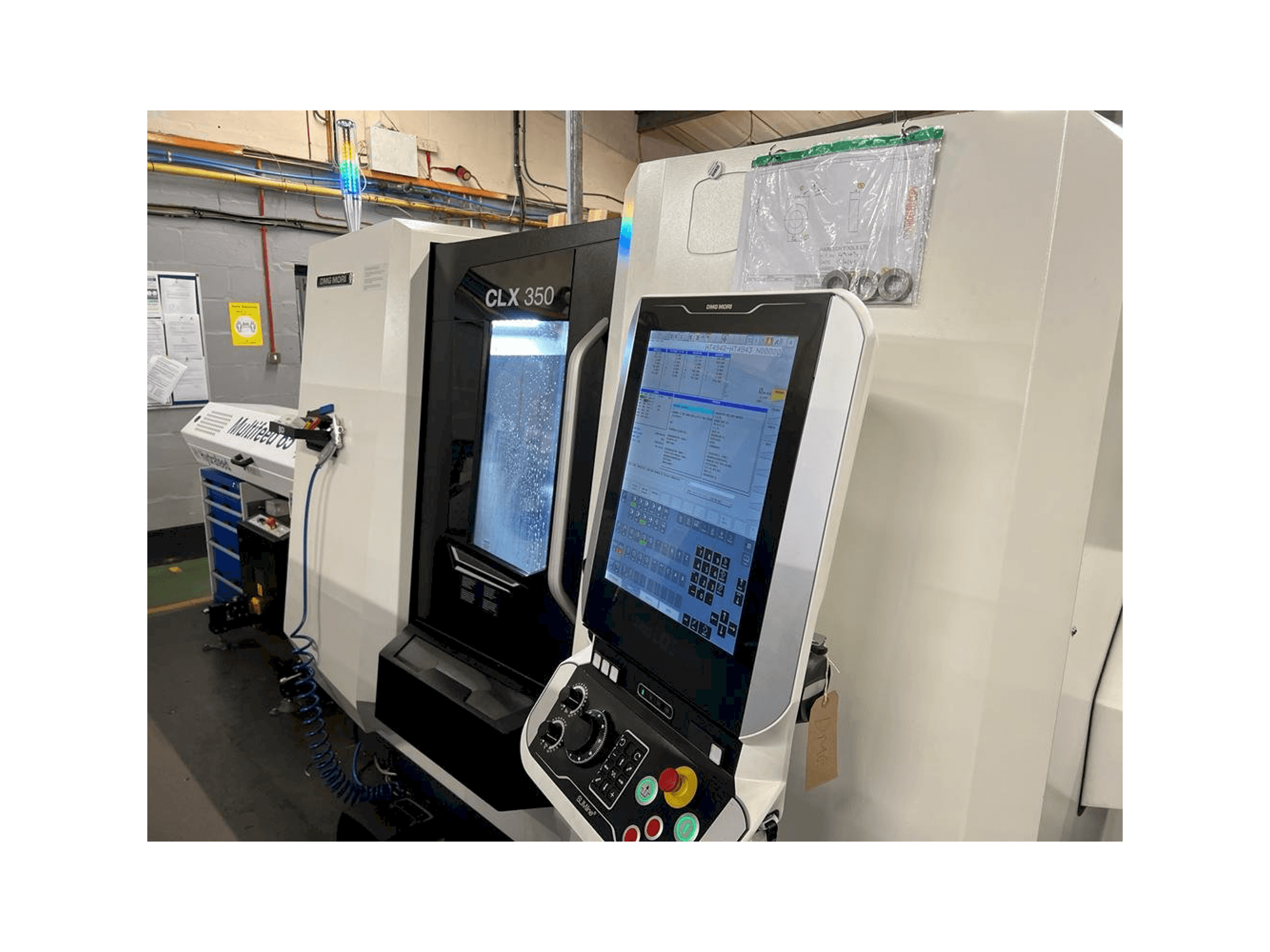

This DMG MORI CLX 350 Lathe machine was built in Germany in the year 2020. This 5 axis machine it is equipped with a FANUC control unit. This machine can perform with a spindle speed up to 5500 rpm. Includes a Barfeed Magazine Hydrafeed Multifeed 65. Machine in very good condition, low production hours.
Overview
- brand: DMG MORI
- year: 2020
- MODEL: CLX 350
- application type: Turning
- Location: United Kingdom
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DMG MORI CLX 350
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Depth: 2271 mm
- Machine Height: 2208 mm
- Machine Weight: 4700 kg
Movement
- Number of Axes: 5
- X-axis Travel: 242.5 mm
- Z-axis Travel: 540 mm
Technical Specification
- Number of Tools: 12
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
- Barfeed Magazine Hydrafeed Multifeed 65
Machine Benefits
Qualitative Machine Benefits
- Very good condition, low hours
Technical Machine Benefits
- Maximum cutting diameter 320mm
- Swing over the cross-slide 360mm
- Bar capacity 65mm
- Chuck size 200mm
- Milling motor power 5. 4kw
- Milling rpm 5500 rpm
- Spindle motor power 16. 5/11kw
- Rapid feedrates xyz: 30 x 22. 5 x 36m/minute
- Sub spindle max speed 5000rpm
- C axis & milling, tool setter, coolant, y-axis, interlocked guards, low volt light, 3 jaw chuck, collets, magazine barfeed, collet chuck, swarf conveyor, c axis on sub spindle
Extra Information
5 axis lathe wit C axis, Y axis and milling function
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
