DMG DMU 50 VL Milling Machine

Show in original language

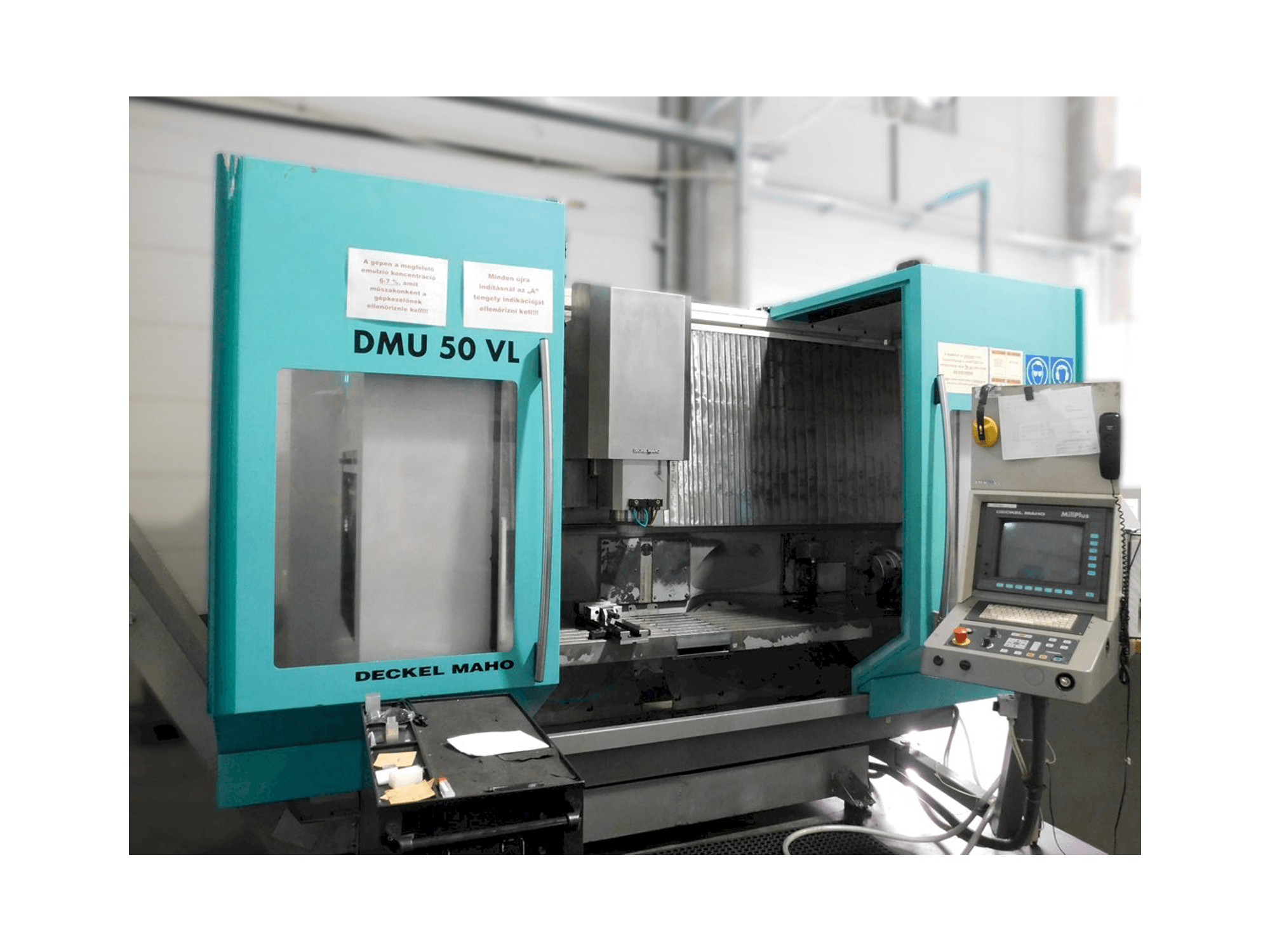

This DMG DMU 50 VL Milling Machine was produced in the year 2000. It has been on for 23242 hours, of which 7129 are spindle power hours. It is equipped with a Heidenhain MillPlus control unit. This 4 axis machine can work with a spindle speed up to 30000 rpm. It includes chip conveyor, coolant system, hand wheel for all axes, and spindle cooler.

Overview

brand: DMG
year: 2000
MODEL: DMU 50 VL
production hours: 23242
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG DMU 50 VL

General Data

Measurements width: 2500 mm
Measurements depth: 3300 mm
Measurements height: 2400 mm
Machine weight: 5600 kg

Control Unit

Model: MillPlus
Brand: HEIDENHAIN

Main drive

Spindle speed range: 30000 1/MIN
Tool taper: HSK-E50
Number of axis: 4

Movement

X-AXIS Movement: 1420 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Media

Power consumption: 29 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4 axis machine with a axis
- - A - axis rotation 360º
- - Table surface area 2 pcs. 800 x 480 mm
- - Distance of t-slots 63 mm
- - Width of t-slots 7 x 14 h7 mm
- - Number of tools 24 pcs
- - Feeds x/y/z 10. 000 mm/min
- - Rapid traverse x/y/z 30 m/min
- - Chip conveyor
- - Coolant system
Qualitative Machine Benefits:
- - Handwheel for all axes
- - Spindle cooler

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
