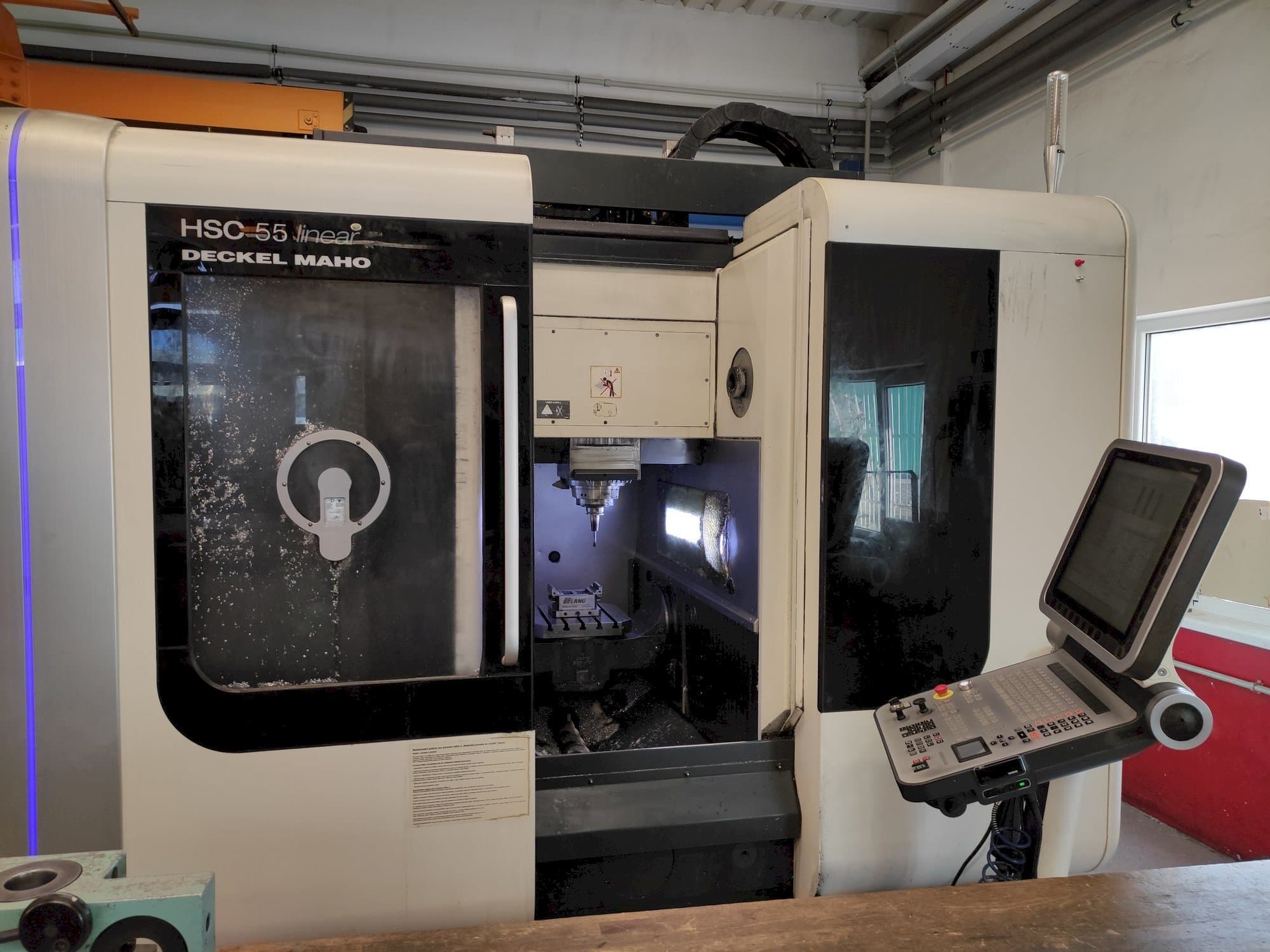

Front view of DMG Deckel Maho HSC 55 linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO HSC 55 linear

Photo Gallery

DECKEL MAHO - HSC 55 linearCZ-MIL-DMG-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG Deckel Maho HSC 55 linear

Show in original language

This Deckel Maho HSC 55 linear Vertical Machining Center was manufactured in the year 2008 in Germany. It has a record of 46572 hours, of which 20002 are spindle hours. This 5 axis machine is equipped with a HEIDENHAIN iTNC 530 control unit. It machine can perform with a spindle speed of 28000 rpm. This machine includes a graphite dust collector and got its table retrofitted in 2015 (A axis motor, bearings). It has mainly produced molds. This machine which has been regularly maintained is in very good condition.

Overview

brand: DECKEL MAHO
year: 2008
MODEL: HSC 55 linear
production hours: 46572
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO HSC 55 linear

General Data

Measurements width: 3210 mm
Measurements depth: 2930 mm
Measurements height: 2900 mm
Machine weight: 9200 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 28000 1/MIN
Spindle motor power: 38/28 kW (40% ED/100%)
Number of axis: 5

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece weight: 200 kg

Table

Outer length: 400 mm
Outer width: 400 mm
Number of tslots: 5
Distance between: 63 mm

Tools

Slots in storage: 30
Max weight: 6 kg
Max tool diameter: 80 mm
Max tool length: 250 mm
Type of tool holder: HSK-A63

Media

Main electronic connection: 400 v 50/60 hz
Power consumption: 50 kva
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Graphite dust collector
- Heidenhain touch probe TS 649

Additional Information

Machine history

End product: Mould
Industries: Die & mould

Machine Benefits

Technical Machine Benefits:
- - Torque 33/24. 5 nm (40/100 %)
- - Table c axis 360 degrees
- - Table a axis - 10/+110 degress
- - High pressure cooling 40 bar, filter paper
- - 3d quick set for 5 axis calibration
Qualitative Machine Benefits:
- - Very good condition, regularly maintained.
- - 2015 - table retrofitted (a axis motor, bearings)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
