Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DECKEL MAHO - HSC 105 LinearMD-MIL-DEC-2008-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DECKEL MAHO HSC 105 Linear For Sale | gindumac.com

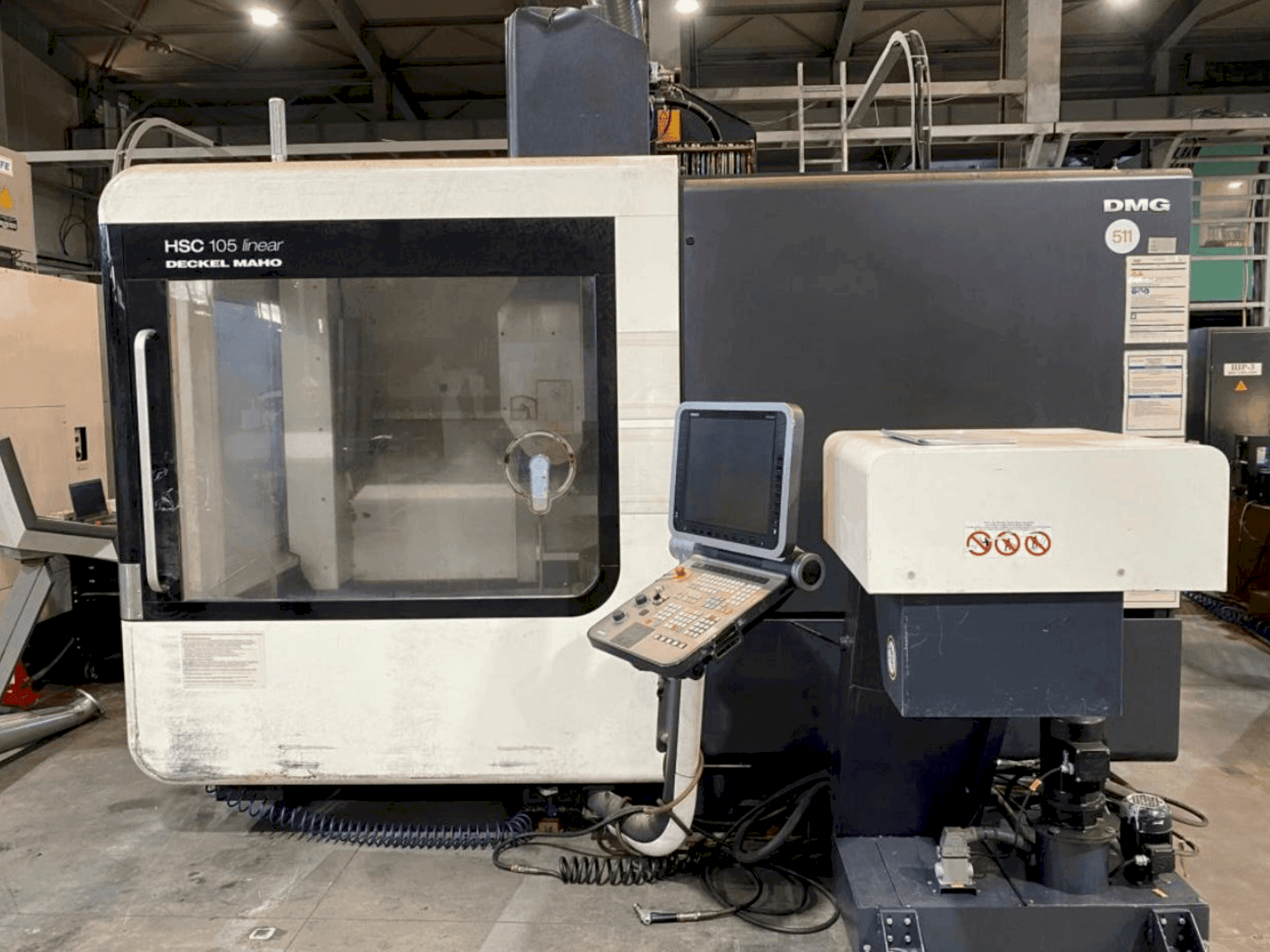

This 5-axis DECKEL MAHO HSC 105 Linear was manufactured in 2008. A vertical machining centre featuring 3D-Control Heidenhain iTNC 530, DMG ERGOline Control with a 19" display, and digital controlled AC-Motor spindle. It supports a spindle speed range of 20-18,000 rpm and a spindle taper HSK-A63 DIN 69893. Ideal for complex geometries, the machine we have for sale offers precision and versatility. For more information about this vertical machining centre, please reach out to us.
Overview
- brand: DECKEL MAHO
- year: 2008
- MODEL: HSC 105 Linear
- application type: Milling
- Location: Moldova
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO HSC 105 Linear
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Movement
- Number of Axes: 5
- X-axis Travel: 450 mm
- Y-axis Travel: 580 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Power: 41 kW
- Spindle Speed: 18000 RPM
Additional Information
Additional equipment
- 3D-Control Heidenhain iTNC 530
- Operator screen SmarT.NC DMG ERGOline Control, 19" display
- Electronic handwheel
- Ethernet Data lines and adapter
- Application Tuning Cycle ATC-Software selection of the optimal milling mode for the current machining
- Maximum workpiece height: 350 mm
- C-Axis: 360 degrees Rotation Range (110 rpm)
- A-Axis: +10/-110 degrees Til
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
