➤ Used DECKEL MAHO DMC 75 V Linear - For Sale

Show in original language

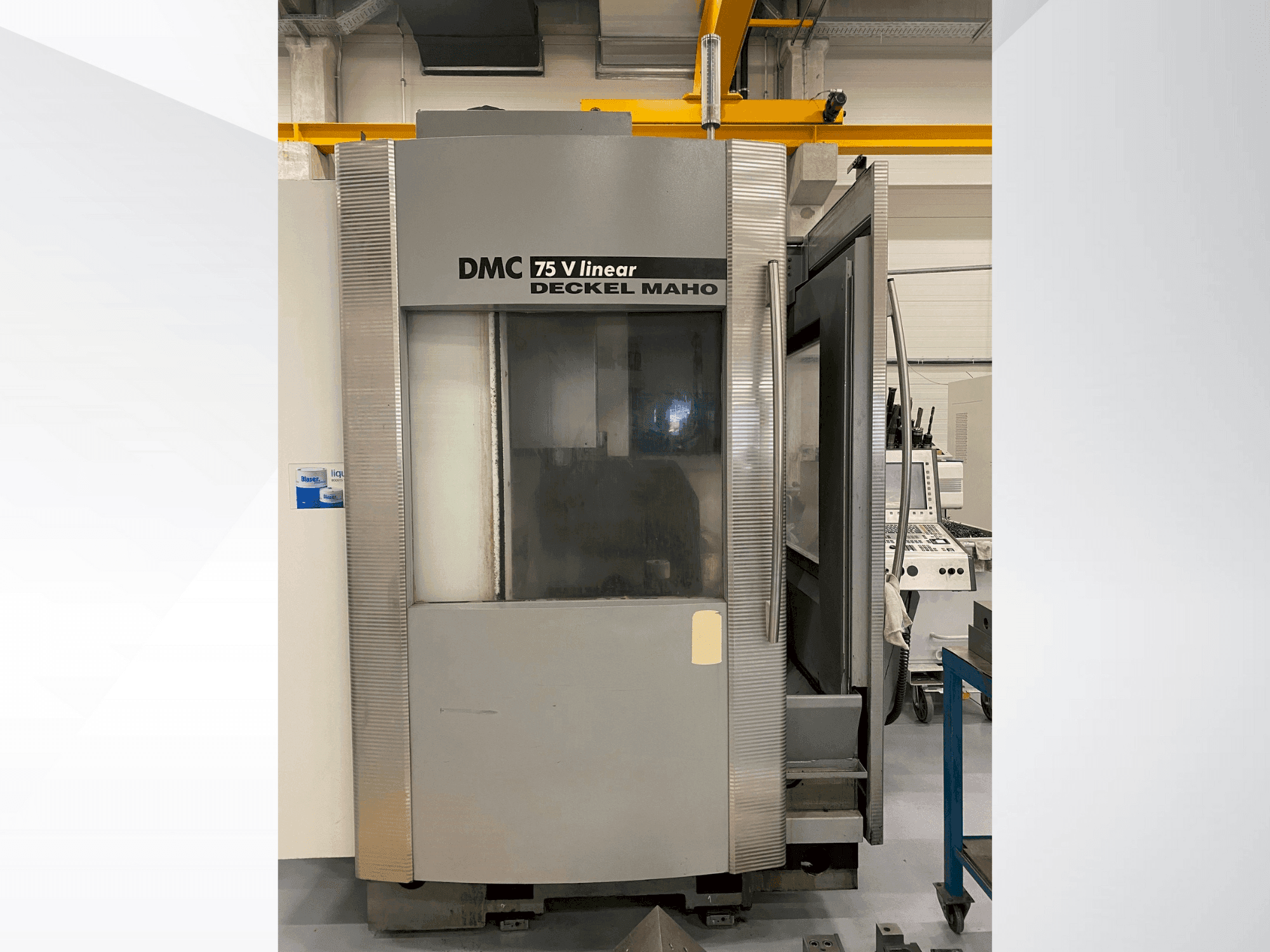

This 3-axis DECKEL MAHO DMC 75 V Linear was manufactured in 2005. It features a travel range of 885 x 600 x 600 mm and a maximum feed speed of 90 m/min. The machine includes a high-capacity coolant system and an efficient scraper belt conveyor for swarf disposal. If you are looking to get high-quality milling capabilities, consider the DECKEL MAHO DMC 75 V machine we have for sale. Contact us for more information.

Overview

brand: DECKEL MAHO
year: 2005
MODEL: DMC 75 V Linear
production hours: 69995
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN TNC 530

Technical Information - DECKEL MAHO DMC 75 V Linear

Control Unit

Brand: HEIDENHAIN TNC 530

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 885 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 600 mm

Table

Table load: 600 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Acceleration: x-axis: up to 15 m/s² y-axis: up to 12 m/s² z-axis: up to 18 m/s²
- - Condition: very good (used)
- - Functionality: fully functional
- - Maximum feed speed: 90 m/min
- - Tool holder: hsk-a63
- - Tank capacity: 500 liters
- - Coolant supply: 40 l/min at 2. 3 bar
- - Swarf disposal: efficient scraper belt conveyor (discharge height 850 mm)
- - Rated power: 73 kva
- - Rated current: 105 a
Qualitative Machine Benefits:
- - Operating voltage: 400 v
- - Operating pressure: 6 bar
- - Compressed air connection capacity: 30 m³/h

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
