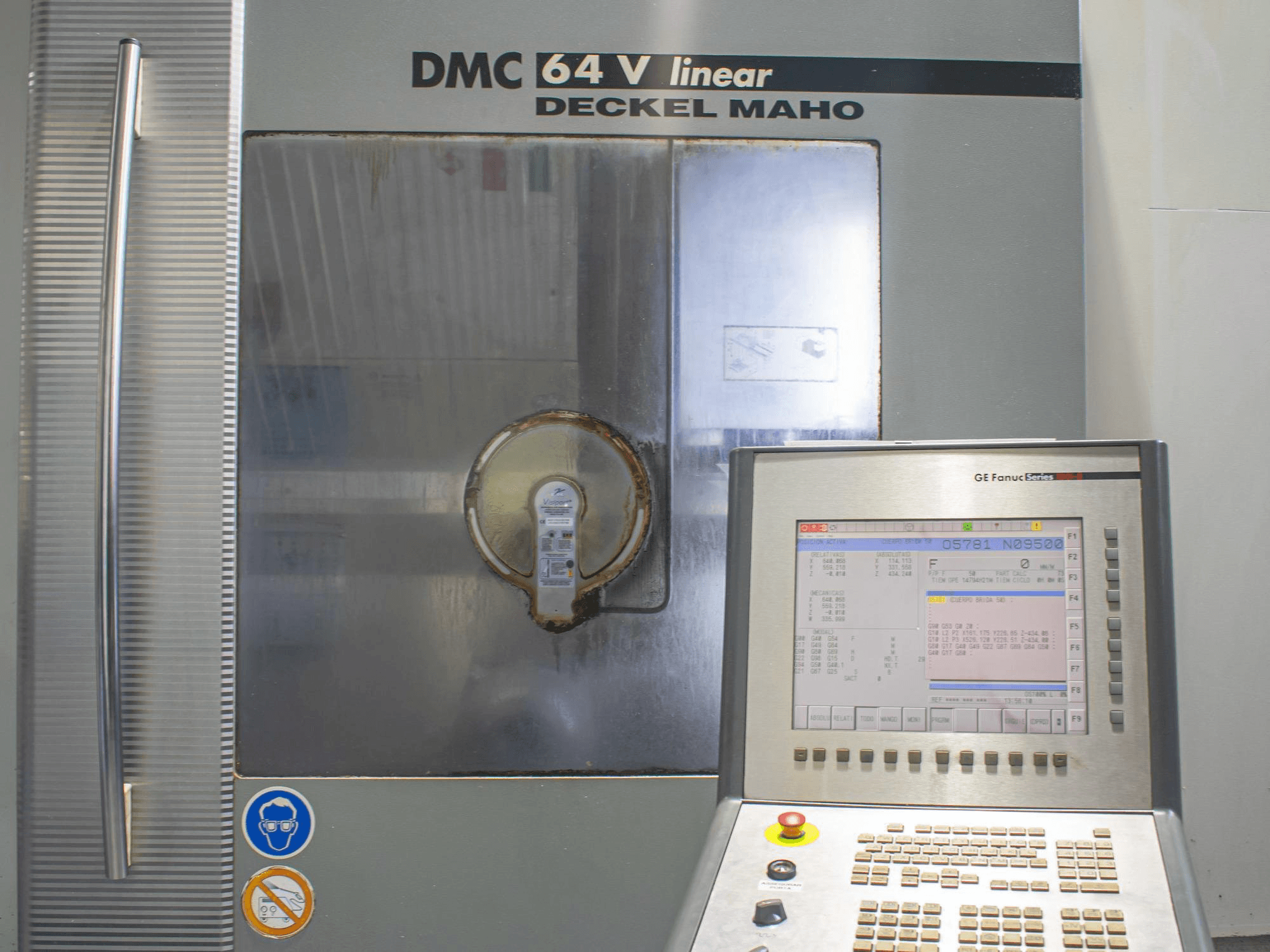

Front view of DECKEL MAHO DMC 64 V linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMC 64 V linear

Photo Gallery

DECKEL MAHO - DMC 64 V linearES-MIL-DEC-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DECKEL MAHO DMC 64 V linear Vertical Machining Center

Show in original language

This DECKEL MAHO DMC 64 V linear Vertical Machining Center, produced in Germany in the year 2004. It is equipped with a Fanuc Series 180i-B control unit. This machine can work with a spindle speed range up to 12000 rpm. It includes 2 fourth axes TSUDAKOMA brand, a bloom brand laser tool meter, and an internal cooling with 20bar and additional 700l refrigerant tank. It presents good conditions.

Overview

brand: DECKEL MAHO
year: 2004
MODEL: DMC 64 V linear
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DECKEL MAHO DMC 64 V linear

Control Unit

Model: Series 180i-B
CNC main language: Spain
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 640 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 850 mm
Outer width: 630 mm
TSlots size: 5

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 140 mm
Max tool length: 300 mm
Type of tool holder: BT40

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Good status

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
