DECKEL MAHO - DMC 100 V Hi-DynAT-MIL-DEC-2001-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

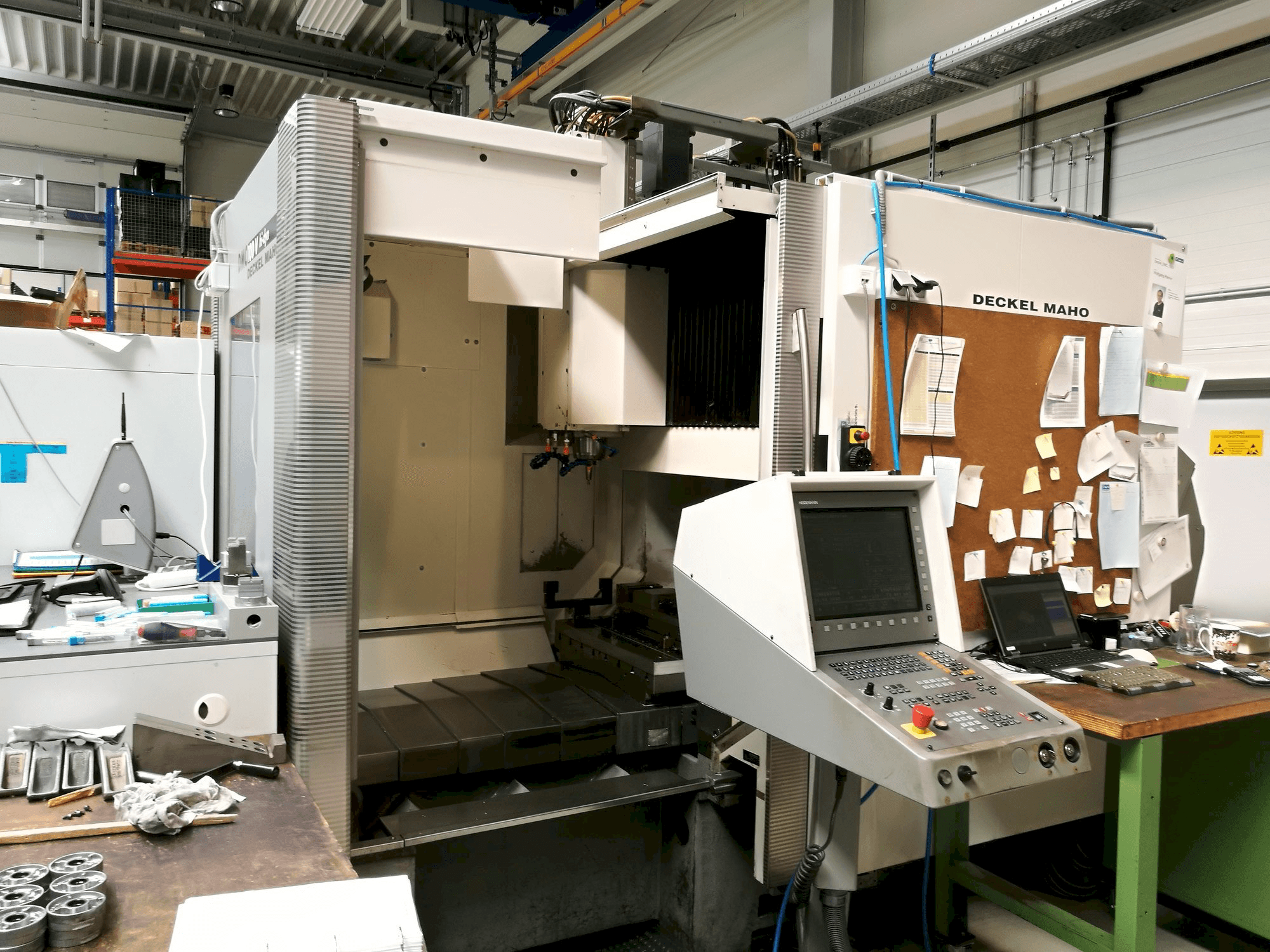

- DECKEL MAHO DMC 100 V Hi-Dyn Vertical Machining Center
This DECKEL MAHO DMC 100 V Hi-Dyn Vertical Machining Center, produced in Germany in 2001. It has a production history of the new spindle of 1300 working hours. It is equipped with a Heidenhain 430 control unit. This machine can work with a spindle speed range up to 18000 rpm.
Overview
- brand: DECKEL MAHO
- year: 2001
- MODEL: DMC 100 V Hi-Dyn
- production hours: 14600
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMC 100 V Hi-Dyn
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 430
Dimensions
- Machine Depth: 4100 mm
- Machine Height: 2900 mm
- Machine Weight: 9100 kg
- Table Length: 1250 mm
- Table Width: 800 mm
Movement
- X-axis Travel: 1000 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 500 mm
Technical Specification
- Max. Tool Weight: 12 kg
- Number of Tools: 30
- Spindle Speed: 18000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Tool measuring system
- RotoClear window
- Workpiece measuring device
Machine Benefits
Qualitative Machine Benefits
- Perfect conditions
- Little working time on new spindel
Technical Machine Benefits
- New spindle since 1300h
- High dynamic machine center
- Hsc spindle
Machine History
Industries
Mould and die
End product
Mould and die components
Material type
Steel
