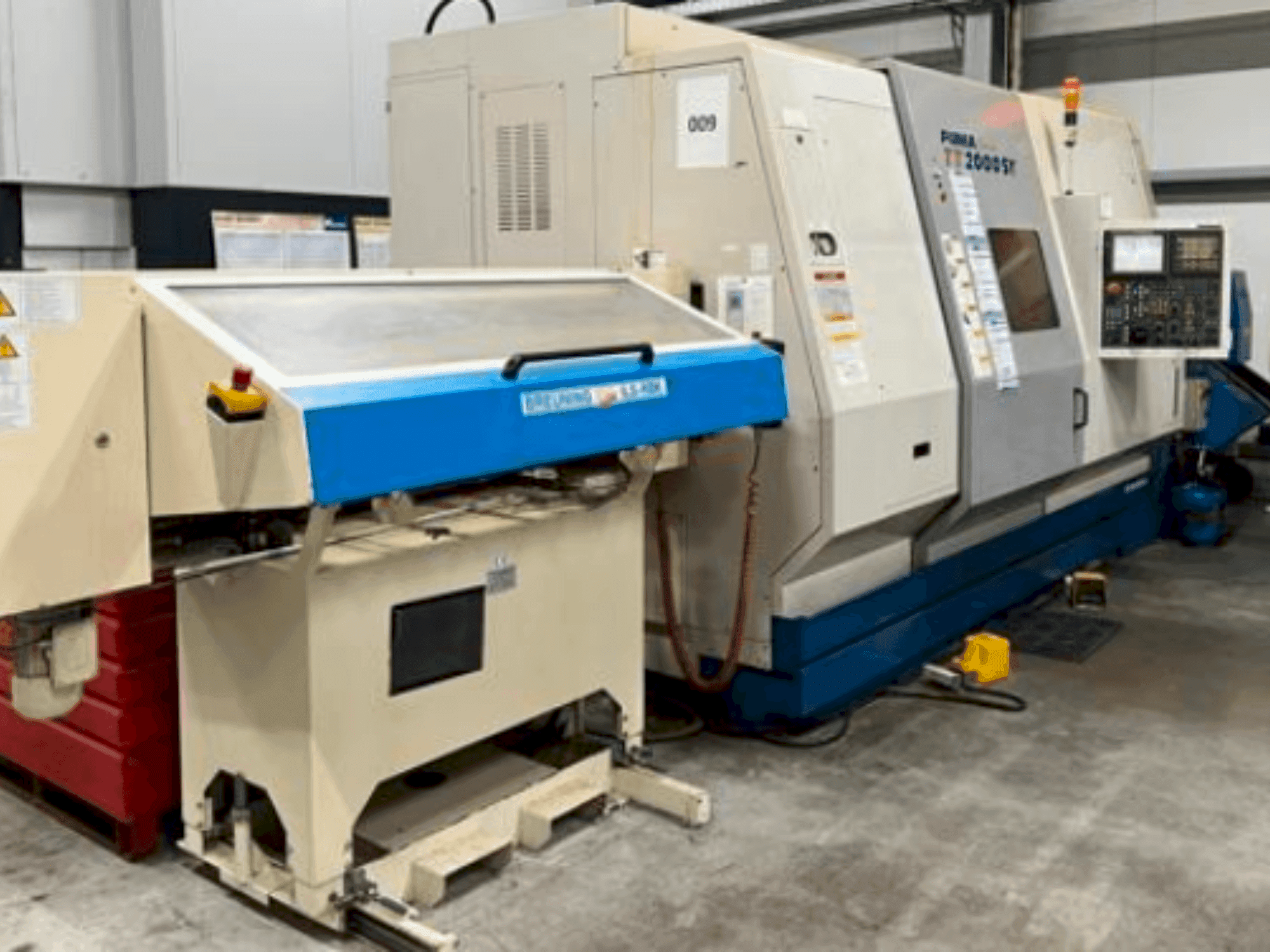

This 3-axis DAEWOO PUMA TT 2000 SY was manufactured in 2005. It features a turning diameter over bed of 800 mm and a maximum bar diameter of 65 mm. Equipped with a Fanuc 18i-TB control system, it offers spindle speeds up to 5000 rpm and includes a tool turret with 12 stations. Consider the opportunity to buy this DAEWOO PUMA TT 2000 SY horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: DAEWOO
- year: 2005
- MODEL: PUMA TT 2000 SY
- production hours: 6235
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DAEWOO PUMA TT 2000 SY
Control Unit
- Control Brand: FANUC
- Control Model: 18i-TB
Dimensions
- Machine Depth: 4100 mm
- Machine Weight: 11600 kg
Movement
- C-axis: 360°
- Number of Axes: 3
- X-axis Travel: 255 mm
- Y-axis Travel: 120 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
- Measuring Probe: Tool Measuring Probe
- Automatic Bar Loader: ILS-RBK10016 L 2265 mm, W 1116 mm, Approx. 490 kg
- Bar Loader Max. Material Length/Diameter: 1600 mm/5-65 mm
- Magazine Short Bar Feed with Servo Drive
- Main and Counter Spindle with Power Chuck D = 250
- Enclosed Work Area Enclosure According to Accident Prevention Regulations
- Memory Card Input Socket, RS 232 Socket
- Tool Load Monitoring, Bed Flushing
- Workpiece Air Blow-off Function
- Automatic Tool Measuring Probe // Driven Tools on Both Revolvers
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
