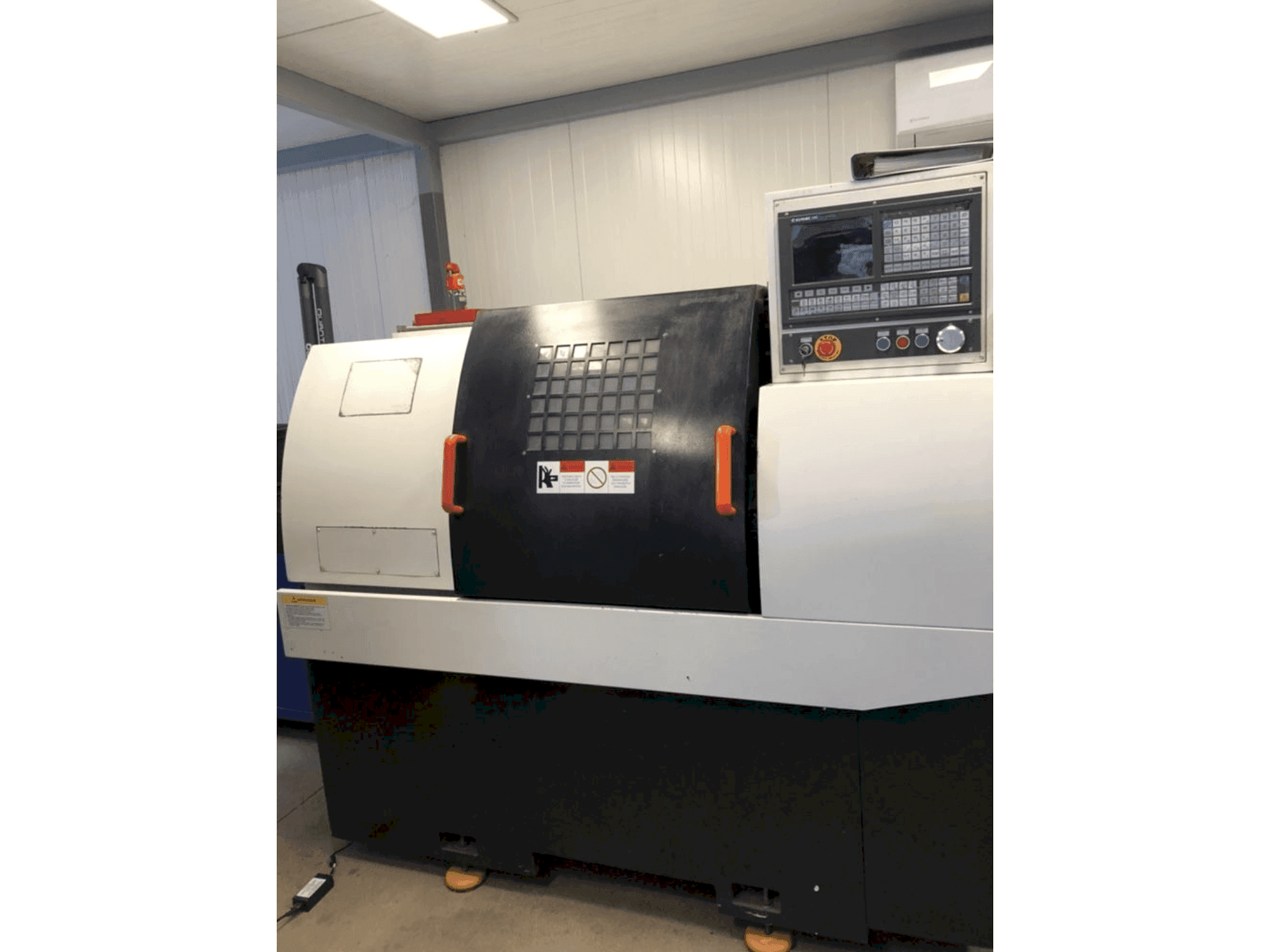

This Cormak CK6232L Horizontal Machining center was manufactured in the year 2016 in Poland. It is equipped with a GSR 980TD control unit and has 2 axis. The machine has a spindle speed of 300-2400 rpm.
Overview
- brand: CORMARK
- year: 2016
- MODEL: CK6232L
- application type: Milling
- Location: Poland
- machine type: Horizontal Machining Centre
- availability: Sold
Technical Information - CORMARK CK6232L
General Data
- Measurements width: 1880 mm
- Measurements depth: 1220 mm
- Measurements height: 1560 mm
- Machine weight: 1700 kg
Main drive
- Spindle speed range: 300-2400 1/MIN
- Spindle motor power: 5,5 kW
- Number of axis: 2
Movement
- X-AXIS Movement: 300 mm
- Z-AXIS Movement: 800 mm
Additional Information
- Technical Machine Benefits:
- - The maximum turning diameter over the bed: 420 mm
- - The maximum turning diameter over the cross-slide: 180 mm
- - The jaw spacing of a lathe: 700 mm
- - The spindle bore: 51 mm
- - The type of bed/type of guides: flat guides/box way guides
- - The maximum swing over cross slide: 51 mm
- - Axis x/z speed: 6000/6000 mm/min
- - Servo motor torque x/z: 4/6 nm
- - Type of chuck: tool holder type
- - The number of tools in the holder: 8
- Qualitative Machine Benefits:
- - Size of the tool holder: 20 x 20mm
- - Steady rest type: hydraulic
- - Tailstock quill tip: morse 4
- - The dimension of the tailstock quill tip: 60 mm
- - Tailstock quill travel: 90 mm
- - Coolant pomp power: 90w
- - Holder: hydraulic
- - Positioning accuracy x/z: 0,02 mm
- - Repeatability x\z 0,008 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
