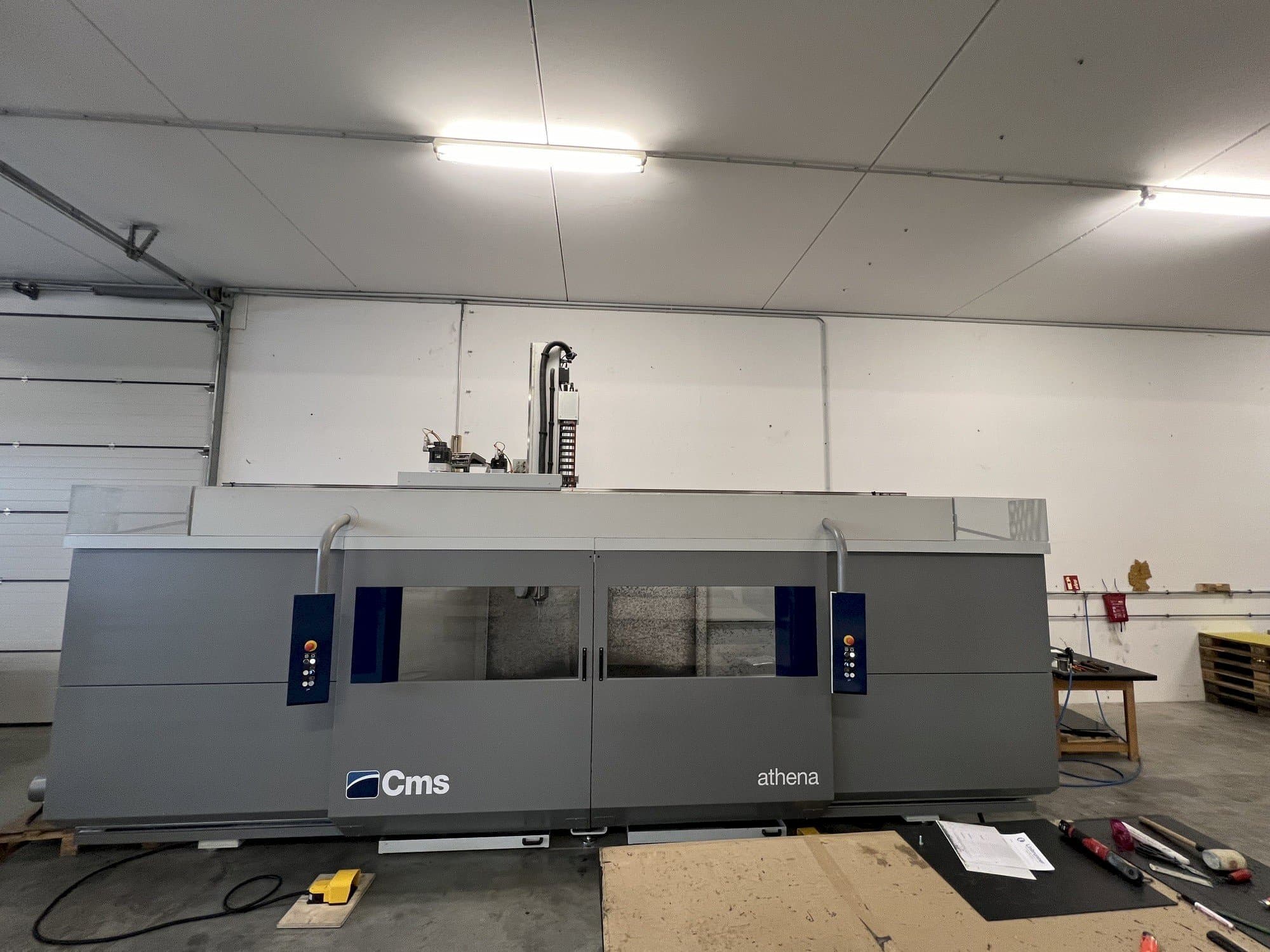

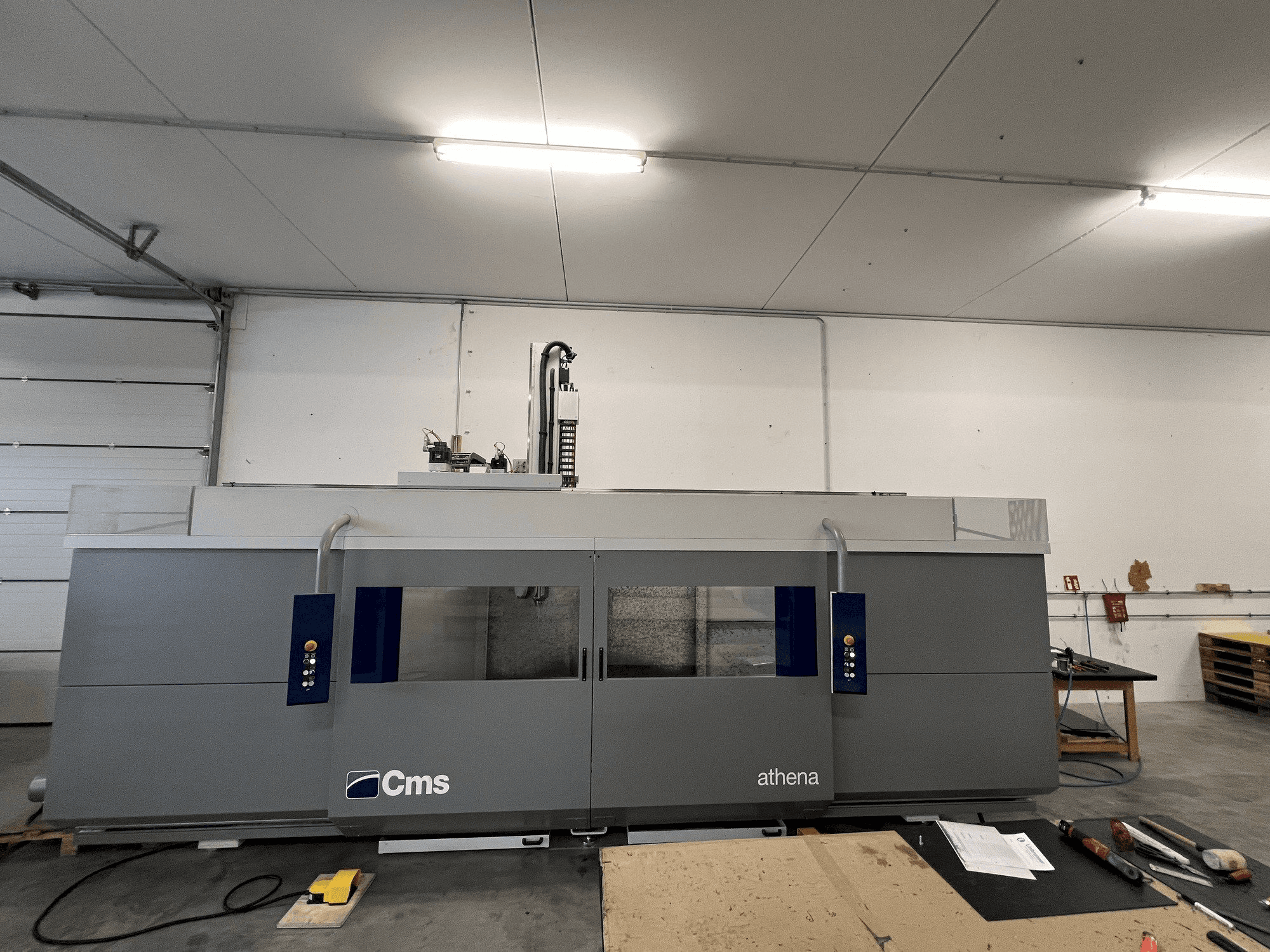

CMS Athena A3 OCE Milling machine

Show in original language

This CMS Athena A3 OCE Milling machine was manufactured in the year 2022 in Italy. It is equipped with a CMS Osai Open CNC control unit and has 5 axis. The machine has a spindle speed of 24000 rpm.

Overview

brand: CMS
year: 2022
MODEL: Athena A3 OCE
production hours: 0
application type: Milling
Location: Germany
machine type: Gantry Milling Machine

Technical Information - CMS Athena A3 OCE

Control Unit

Model: Osai open CNC

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 8,5 kW
Number of axis: 5

Movement

X-AXIS Movement: 3370 mm
X-AXIS Feed Force: 90.000 mm/min
Y-AXIS Movement: 1500 mm
Y-AXIS Feed Force: 60.000 mm/min
Z-AXIS Movement: 1200 mm
Z-AXIS Feed Force: 40.000 mm/min
B-AXIS Movement: 120º MM
C-AXIS Movement: 270º MM

Table

Outer length: 3060 mm
Outer width: 1530 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Doors are manual (not automatic)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
