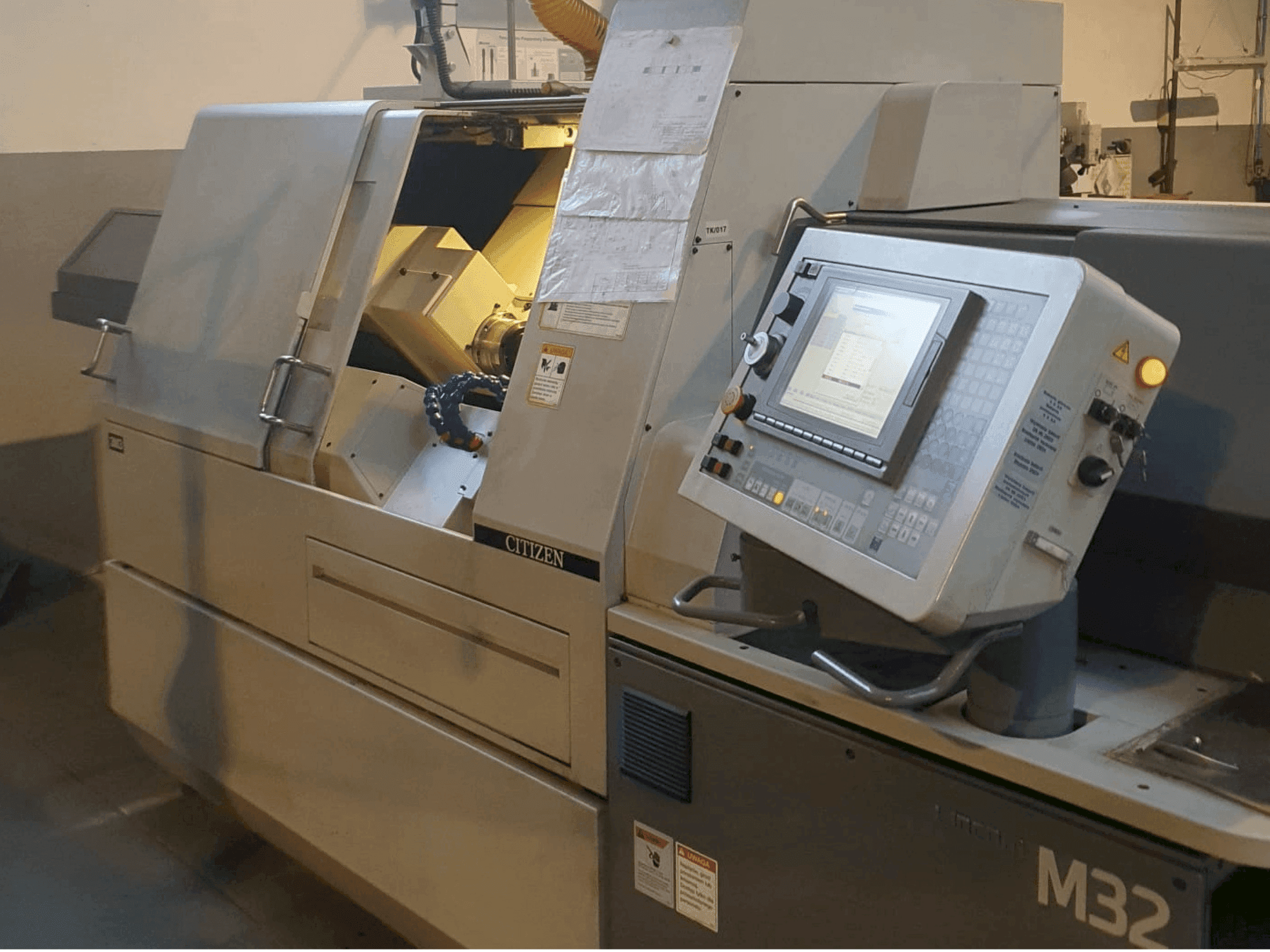

CITIZEN M32 III (2011) Lathe

Show in original language

This CITIZEN M32 III (2011) Lathe was manufactured in 2011. It has a max. machining length of 320 mm and a max. machining diameter of 32 mm. It is controlled by a CITIZEN CINCOM control unit.

Overview

brand: Citizen
year: 2011
MODEL: M32 III
production hours: 5555
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
availability: Sold

Technical Information - Citizen M32 III

General Data

Machine weight: 3050 kg

Controller

Brand: CITIZEN
Model: CINCON

Main drive

Spindle speed range: 200 - 8000 rpm 1/MIN
Number of axis: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max machining diameter: 32 mm
- - Max machining length: 320 mm
- - Max front drilling diameter: ø12 mm
- - Max front tapping diameter (with a tap or die): m10 (tap)
- - Spindle through-hole diameter: 36 mm
- - Main spindle speed: 200 to 8,000 rpm (stepless, s + 4-digit numeric value)
- - Main spindle indexing c axis: 0. 001°
- - Max chuck diameter of the back spindle: 32 mm
- - Max workpiece length for the front side collection from the back spindle: 145 mm
- - Max workpiece protrusion length from the back spindle: 65 mm // max drilling diameter in the back machining process: ø10 mm // max tapping diameter in the back machining process: m8 back

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
