- ➤ Used CHIRON FZ08S | Vertical Machining Center

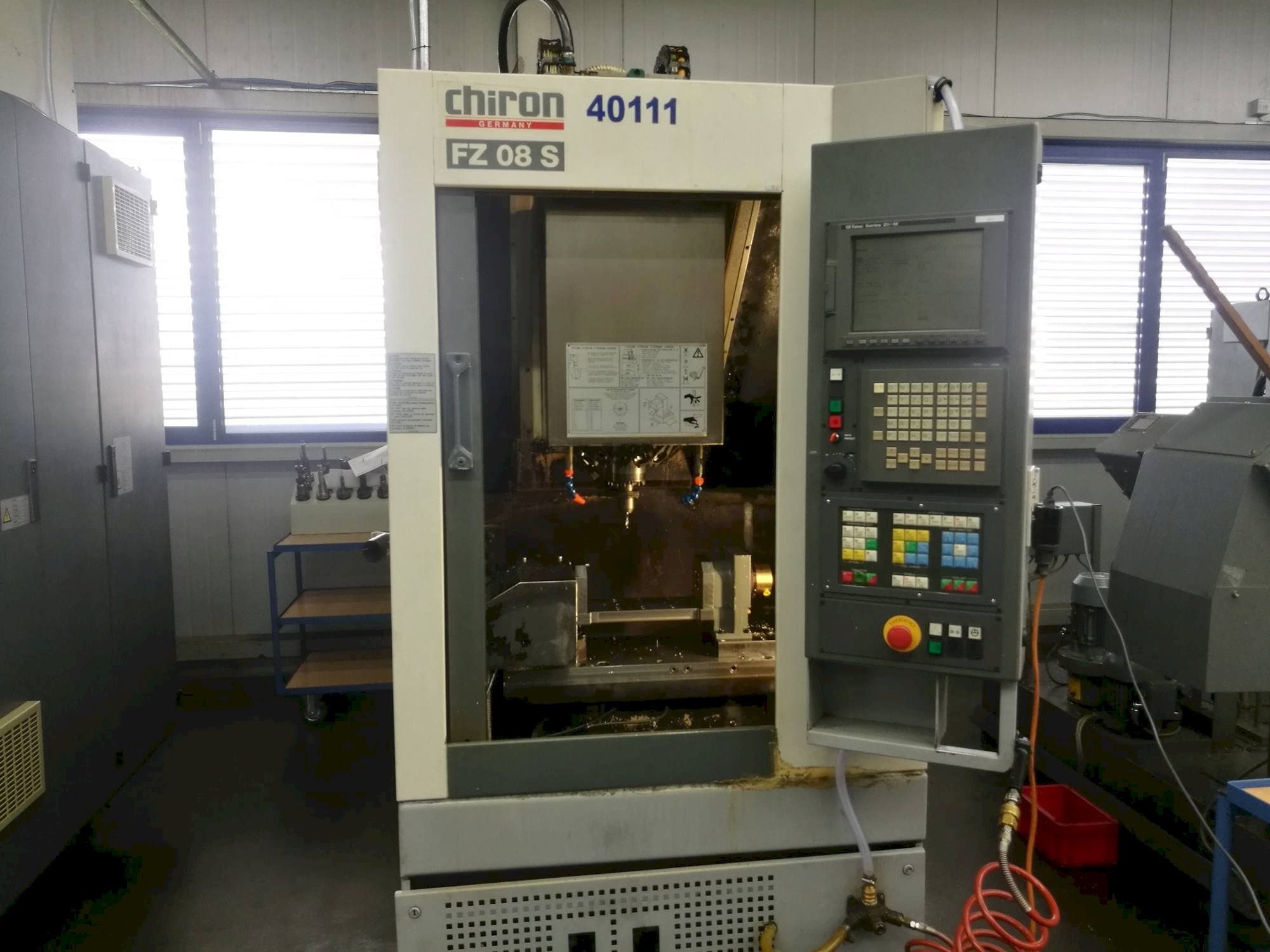

This CHIRON FZ08S Vertical Machining Center was built in the year 2000 in Germany and has a production record of 40500 hours. Equipped with a FANUC 21 iM Control unit, this fast machine incorporates a spindle speed up to 10500 rpm. It presents perfectly good conditions, as it has been regularly maintained.
Overview
- brand: CHIRON
- year: 2000
- MODEL: FZ08S
- production hours: 40500
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - CHIRON FZ08S
General Data
- Measurements width: 1000 mm
- Measurements depth: 2000 mm
- Measurements height: 2350 mm
- Machine weight: 1820 kg
Control Unit
- Model: 21 iM
- CNC main language: German
- CNC language customizable: Yes
- Brand: FANUC
Main drive
- Number of spindles: 1
- Spindle speed range: 10500 rpm 1/MIN
Movement
- X-AXIS Movement: 300 mm
- Y-AXIS Movement: 250 mm
- Z-AXIS Movement: 425 mm
- B-AXIS Movement: 360°
Table
- Outer length: 620 mm
- Outer width: 260 mm
Tools
- Slots in storage: 12
- Max tool diameter: 63 mm
- Max tool length: 160 mm
- Type of tool holder: HSK32
Media
- Main electronic connection: 380 V
- Power consumption: 13 kVA
Additional Information
Additional equipment
- 4axis rotary unit 360° Peiesler 250x100mm
- chip box
- tool holders
Machine Benefits
Qualitative Machine Benefits
- Regulary maintained
Technical Machine Benefits
- 4 axis rotary unit
Machine History
Industries
Medical industry
End product
Medical instruments
Material type
Aluminium
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
