➤ Used CHIRON FZ 08K W For Sale | gindumac.com

Show in original language

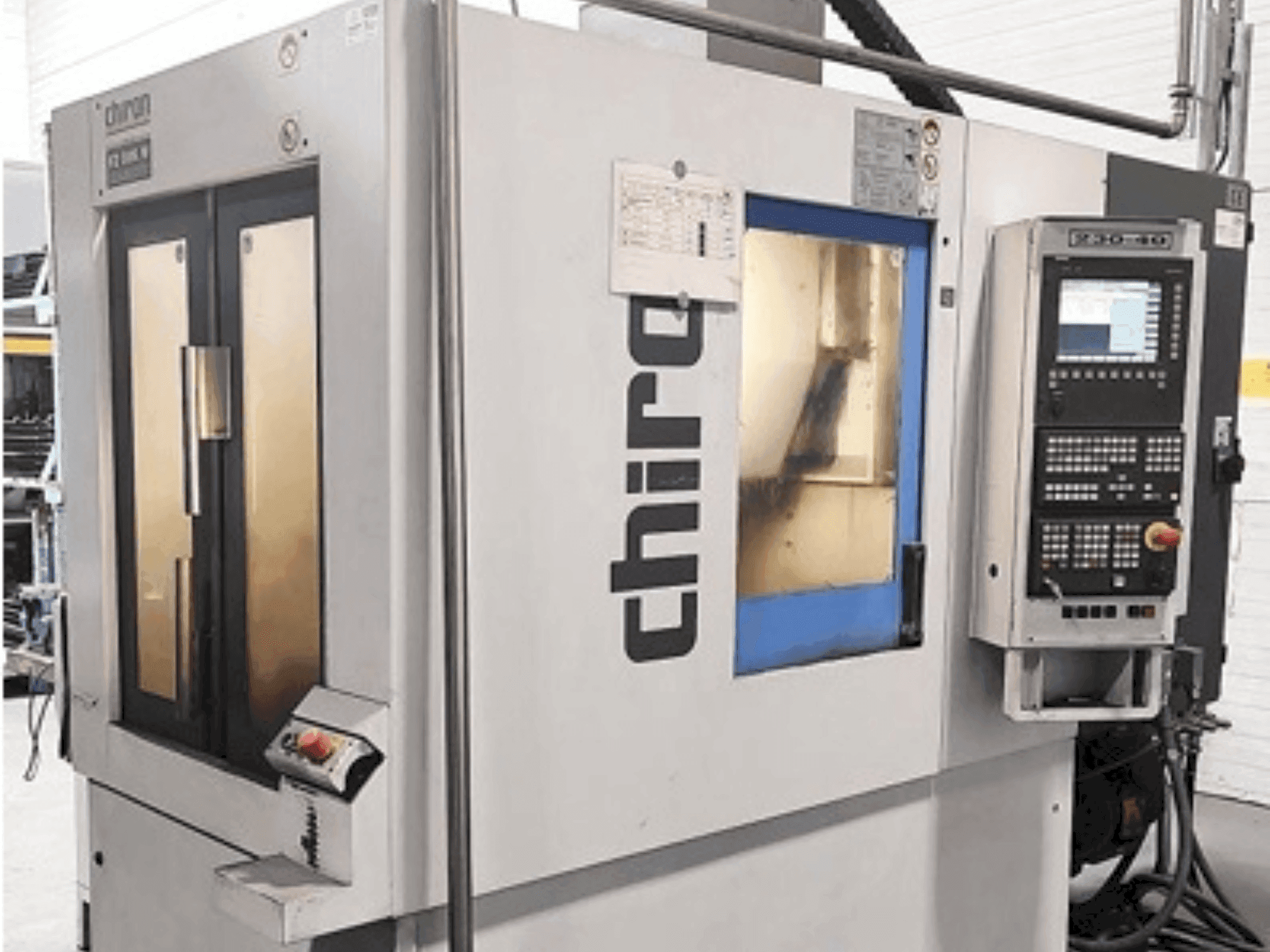

This 3-axis CHIRON FZ 08K W vertical machining center was manufactured in 2004. It features a Siemens 840D control, a rapid traverse speed of up to 60 m/min, and a high-pressure coolant system up to 150 bar. With approximately 5,000 machine hours and a robust tool changer with 24 positions, consider the opportunity to buy this CHIRON FZ 08K W vertical machining center. Contact us for more information about this machine.

Overview

brand: CHIRON
year: 2004
MODEL: FZ 08K W
production hours: 5000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - CHIRON FZ 08K W

General Data

Machine weight: 3600 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D

Main drive

Spindle speed range: 20 - 15000 1/MIN
Spindle motor power: 2.2 kW
Tool taper: HSK-A 40
Number of axis: 3

Movement

X-AXIS Movement: 450 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 270 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 310 mm
Z-AXIS Rapid traverse: 60 m/min

Tools

Number of stations: 24
Max weight: 160 mm KG
Max tool diameter: 50 mm
Max tool length: 160 mm

Additional Equipment

- Options: Optionally expandable to 4th and 5th axis (e.g. rotary table or swivel axis)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High-pressure coolant unit: up to 150 bar (programmable)
- - Chip conveyor: scraper belt with 110-liter container
- - Filtration: 60-µm double-switching filter
- - Main drive: digital, air-locked
- - Max. Torque: 23 nm
- - Acceleration: x/y 0. 7 g, z 1. 0 g
- - Tool changer type: pick-up chain magazine (fully encapsulated)
- - Tool change time: 0. 8 s (control-dependent)
- - Chip-to-chip time: approx. 2. 2 s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
